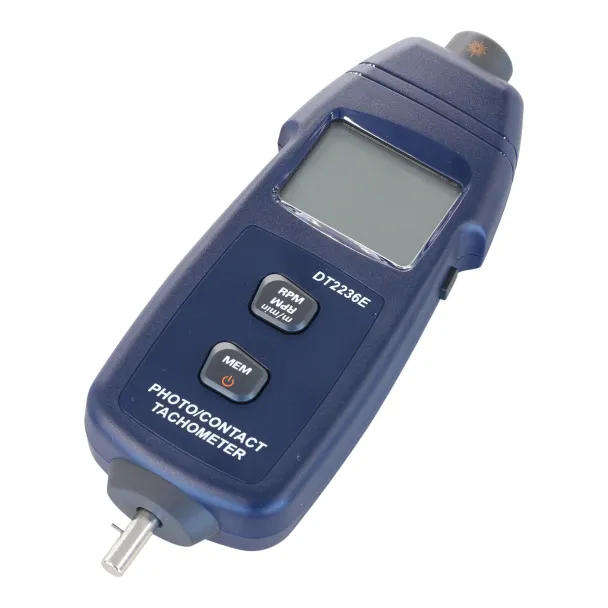

MAC AFRIC Digital 3-in-1 Tachometer Laser & Contact Measurement
This versatile MAC AFRIC digital tachometer is designed for precise measurement of rotational and surface speeds in industrial, mechanical, and maintenance applications. It offers three measurement modes: contact RPM for direct shaft or pulley readings, non-contact laser RPM using reflective surfaces for safe and convenient measurements, and surface speed measurement for conveyor belts or other moving surfaces. With a high-resolution 5-digit LCD display, a quartz crystal time base, and memory storage for up to 500 readings, this tool provides reliable accuracy and ease of use for diagnostics, performance testing, and routine maintenance. Reflective tape is included to enable accurate laser measurements.
Features
3-in-1 Functionality: Contact RPM, Laser RPM, and Surface Speed
High-precision measurement with ±0.05% + 1 digit accuracy
Wide measurement range for both contact and non-contact modes
Memory stores up to 500 readings for monitoring and analysis
Clear 5-digit LCD screen for easy data reading
Includes 600 mm reflective tape for laser measurements
Specifications
Measuring Range:
Photo Tach: 2.5 99,999 RPM
Contact Tach: 0.5 19,999 RPM
Surface Speed: 0.05 1,999.9 m/min
Resolution:
Photo Tach: 0.1 RPM (2.5 999.9 RPM), 1 RPM (over 1,000 RPM)
Contact Tach: 0.1 RPM (0.5 999.9 RPM), 1 RPM (over 1,000 RPM)
Surface Speed: 0.01 m/min (0.05 99.99 m/min), 0.1 m/min (over 100 m/min)
Accuracy: ±(0.05% + 1 digit)
Detecting Distance (Laser): 50 500 mm
Display: 5-digit LCD
Time Base: 6 MHz Quartz Crystal
Power Supply: 4 x 1.5 V AA batteries or DC 6 V adapter (not included)

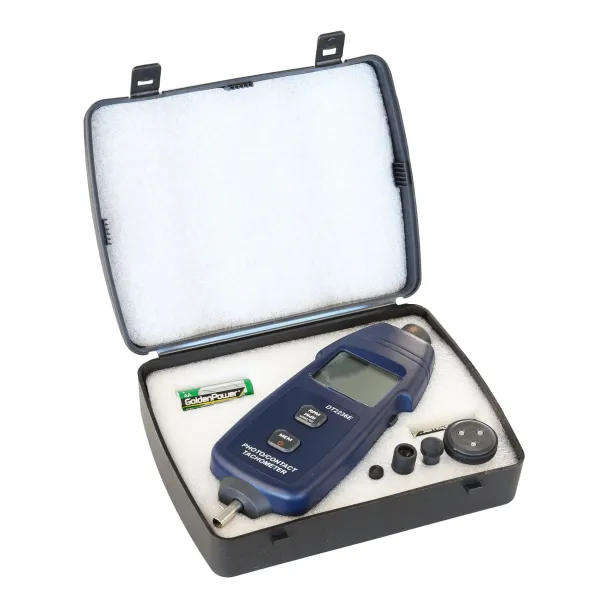

Includes: Photo/contact tachometer, 600 mm reflective tape
Possible Applications
Measuring rotational speed of motors, fans, and pulleys
Monitoring machinery performance and performing diagnostics
Checking surface speed on conveyors and other moving equipment
