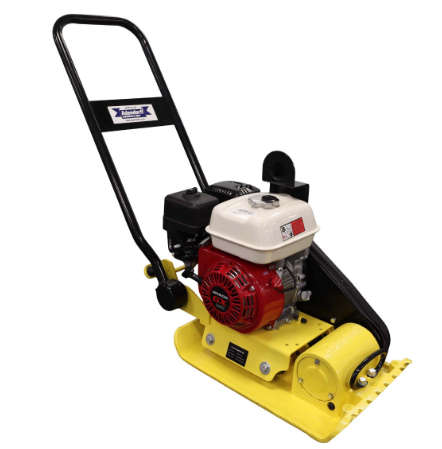

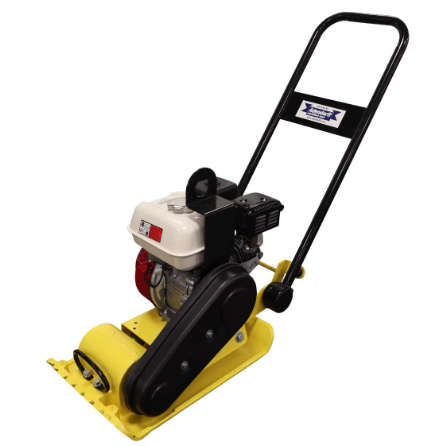

MAC AFRIC HZR-70 Petrol Plate Compactor

Product Overview:

The Compactor Plate is an ideal tool for precision compaction in a variety of construction projects, particularly in tight spaces where maneuverability is key. With its high centrifugal force and powerful engine, this machine excels in compacting hot and cold asphalt, curbs, gutters, and forms. Designed for operator comfort and long-lasting durability, the compactor plate includes a vibration-dampening handle and a robust ductile iron baseplate for enhanced performance and longevity.

Key Features:

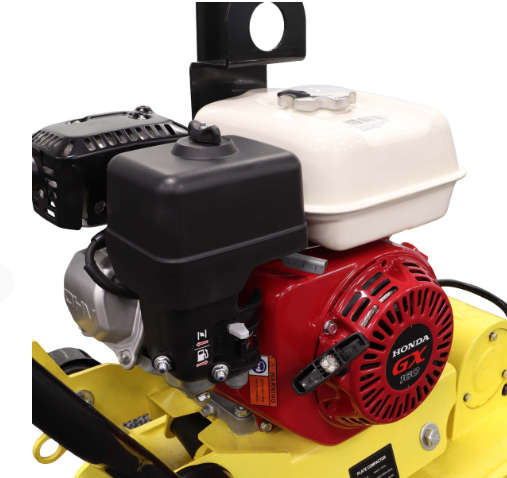

• Powerful Engine:

  • Powered by a 163cc engine with a 5.5 HP output, it delivers exceptional performance for high-speed compaction, making it ideal for both soil and asphalt work.

• Centrifugal Force:

  • Generates a centrifugal force of 10 kN, ensuring effective and efficient compaction for a variety of materials.

• Compact & Maneuverable:

  • Weighing only 62 kg, the machine offers excellent maneuverability, making it easy to use in confined spaces like curbs, gutters, and forms.

• Operator Comfort:

  • The vibration-dampening handle provides a comfortable and less-fatiguing experience for the operator, even during extended use.

• Durable Construction:

  • The baseplate is made of high-quality ductile iron, ensuring long-term durability and resistance to wear during tough compaction tasks.

• Optional Wheel Kit:

  • The optional wheel kit enhances portability, allowing for easy transport between job sites.

Technical Specifications:

• Power Output: 4 kW (5.5 HP)
• Centrifugal Force: 10 kN
• Operating Weight: 62 kg
• Base Plate Size: 350 x 535 mm
• Displacement: 163 cc
• Engine Performance: 3600 RPM
• Tank Capacity: 3.6 L
• Fuel Consumption: 1.4 L/h
• Oil Tank Capacity: 600 mL
• Advance Travel Max (Soil): 20 - 23 mm
• Advance Travel Max (Asphalt): 20 - 23 mm
• Package Dimensions:
  • Length: 90.50 cm
  • Width: 47.70 cm
  • Height: 61.00 cm
• Package Weight: 68.38 kg
