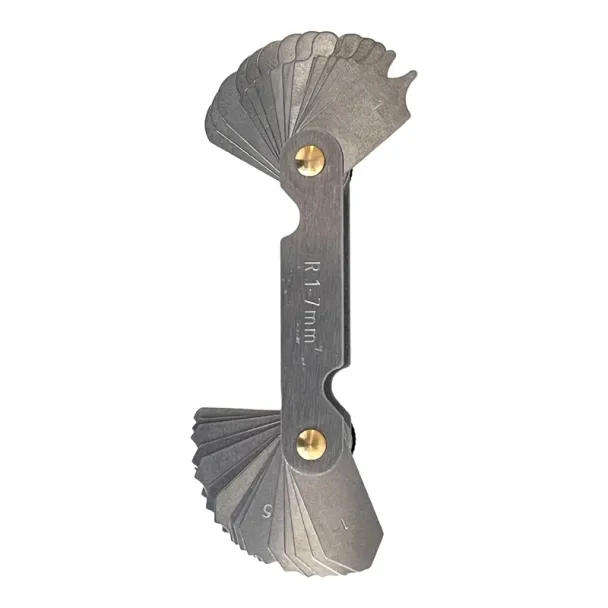

MAC AFRIC Precision Radius Gauge Set 1 mm to 7 mm (0.25 mm Increments)
This precision radius gauge set is designed for accurate measurement of internal and external curves in metalworking, machining, engineering, and quality control applications. Covering a range from 1 mm to 7 mm in finely graduated 0.25 mm increments, it provides consistent and repeatable measurements for precise work.
Constructed from hardened stainless steel, each leaf is laser-etched with size markings and crafted to exact specifications. The gauge features a 270° measuring profile and a compact fan-fold design for convenient portability and storage. It is ideal for workshops, on-site inspections, and precision engineering tasks where accuracy is critical.
Features
Measurement Range: 1 mm to 7 mm
Resolution: 0.25 mm for fine measurement increments
Measuring Type: Internal and External Radii
Material: Hardened Stainless Steel
Graduation Angle: 270° for precise radius verification
Compact Design: Foldable fan-style tool for easy access and organization
Markings: Laser-etched sizes on each blade for clarity
Battery Requirement: None (Manual operation)
Specifications
Resolution: 0.25 mm
Range: 1 7 mm
Measuring Angle: 270°
Display: Analog (Manual)
Blade Count: 25+ Blades (1 mm 7 mm in 0.25 mm steps)
Battery Type: None
Dimensions & Weight
Folded Length: 100 mm
Blade Thickness: ~1 mm
Weight: 130 g
Possible Applications
Metalworking and machining for radius verification
Engineering and quality control inspections
On-site measurement and precision assembly
Workshop and toolmaking applications
