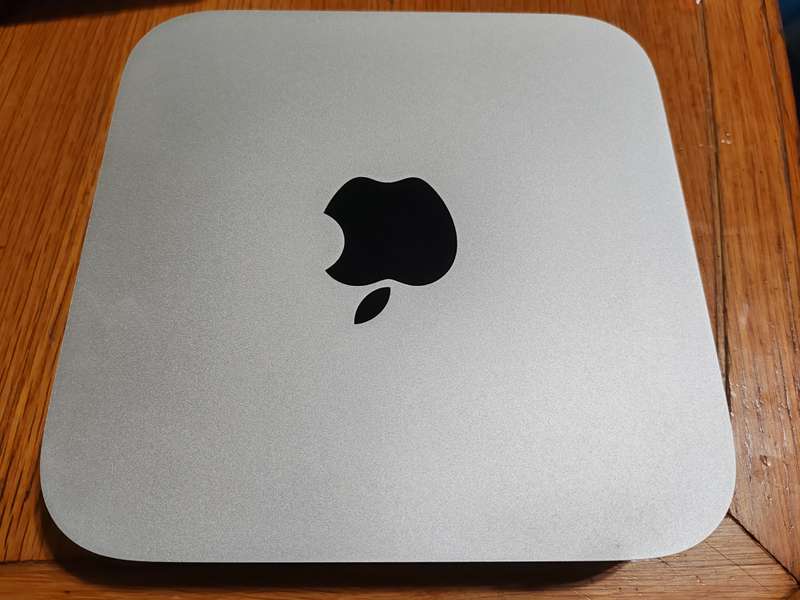

Mac mini 2010 - Technical Specifications

Size and Weight

• Height: 1.4 inches (3.6 cm)
• Width: 7.7 inches (19.7 cm)
• Depth: 7.7 inches (19.7 cm)
• Weight: 2.7 pounds (1.22kg)1

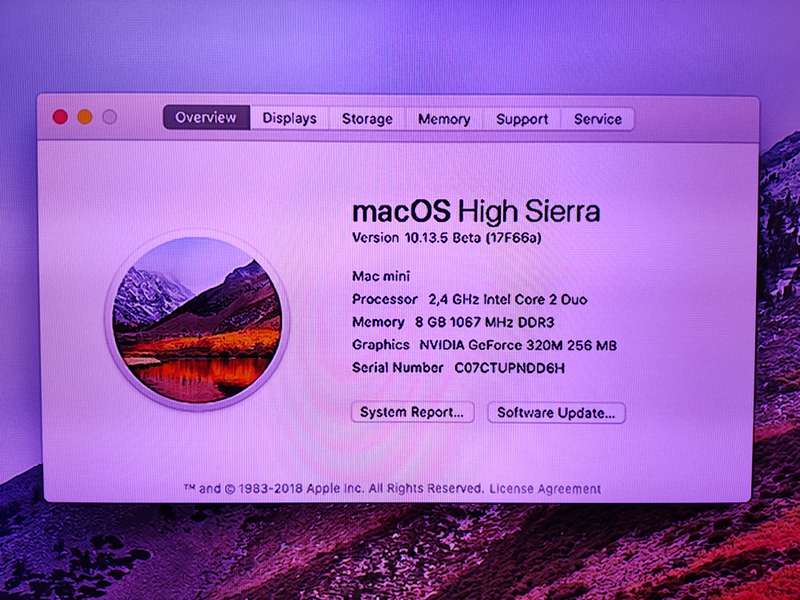

Processor and memory

• 2.4GHz or 2.66GHz Intel Core 2 Duo processor
• 3MB on-chip shared L2 cache
• 1066MHz frontside bus

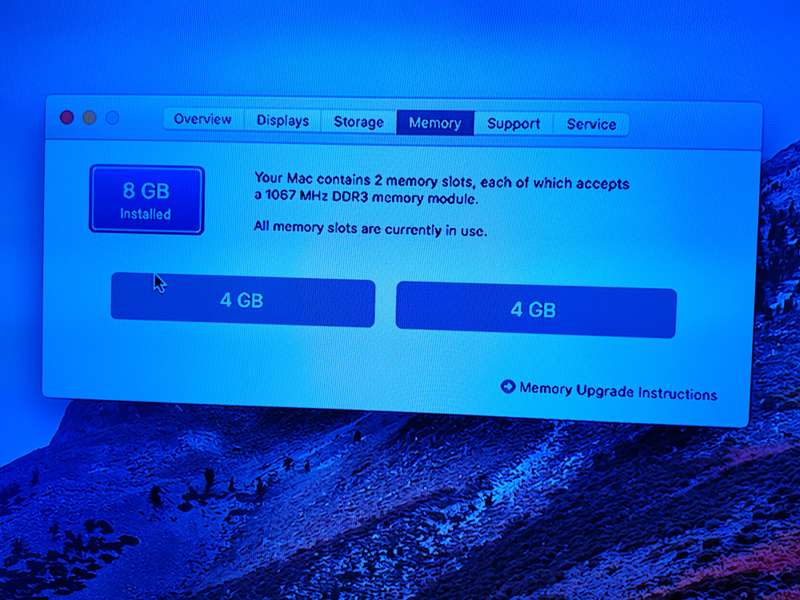

• 8GB of 1066MHz DDR3 SDRAM; two SO-DIMM slots support up to 8GB

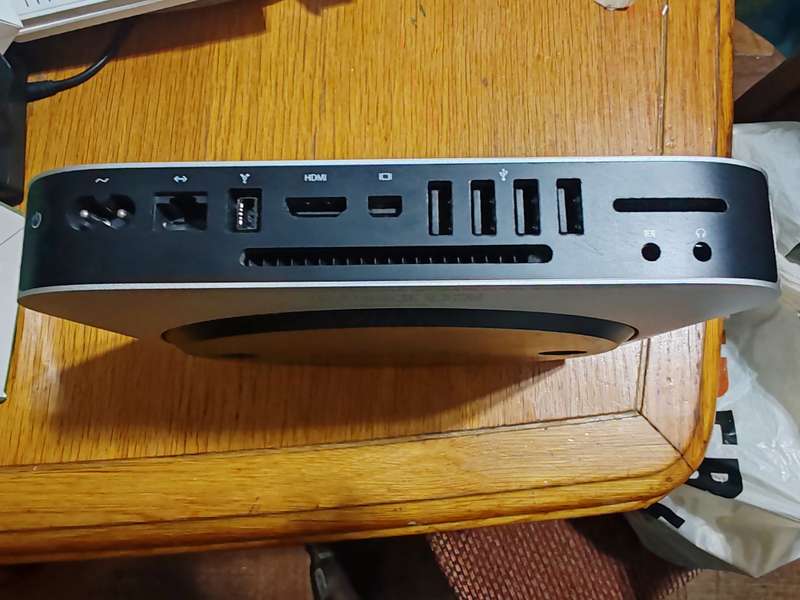

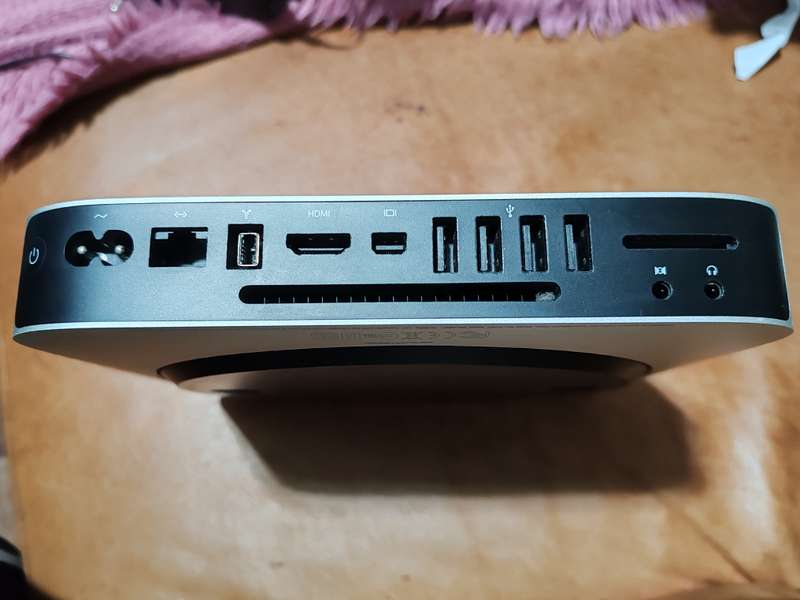

Peripheral connections

• One FireWire 800 port (up to 800 Mbps)
• Four USB 2.0 ports (up to 480 Mbps)
• SD card slot

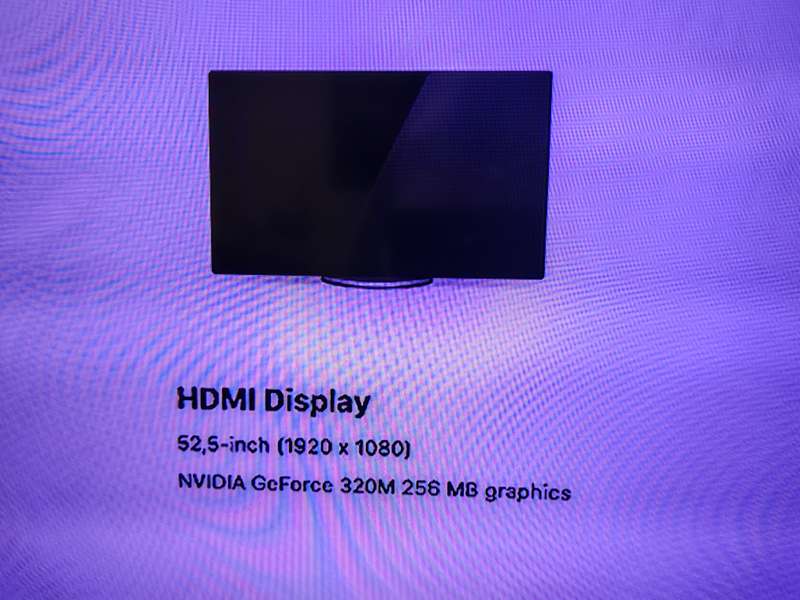

Graphics and video support

• NVIDIA GeForce 320M graphics processor with 256MB of DDR3 SDRAM shared with main memory⁴
• Mini DisplayPort with support for up to 2560-by-1600 resolution
• HDMI port with support for up to 1920-by-1200 resolution
• DVI output using HDMI to DVI Adapter (included)
• VGA output using Mini DisplayPort to VGA Adapter (sold separately)
• Support for extended desktop and video mirroring across both ports

Audio

• Audio line in minijack (digital/analog)
• Audio line out/headphone minijack (digital/analog)
• HDMI port supports multichannel audio output
• Support for Apple iPhone headset with microphone

Storage

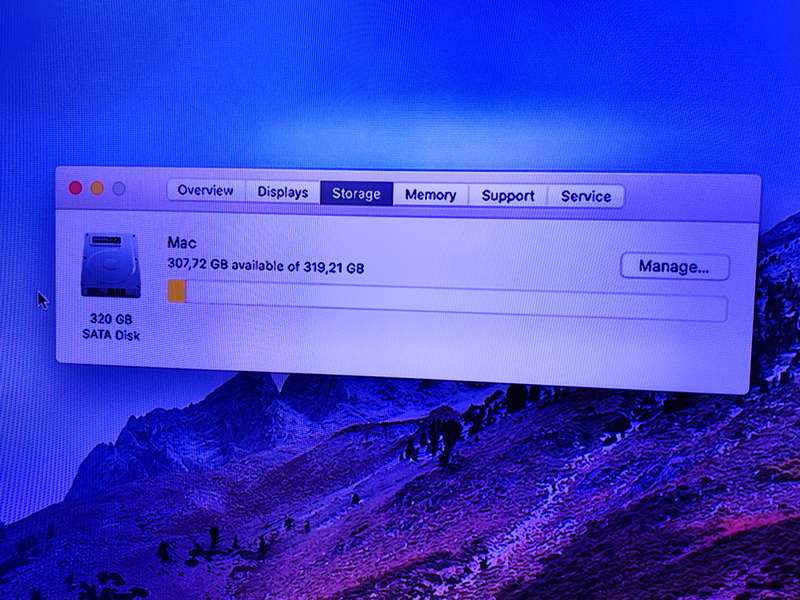

• 320GB or 500GB Serial ATA hard disk drive⁶

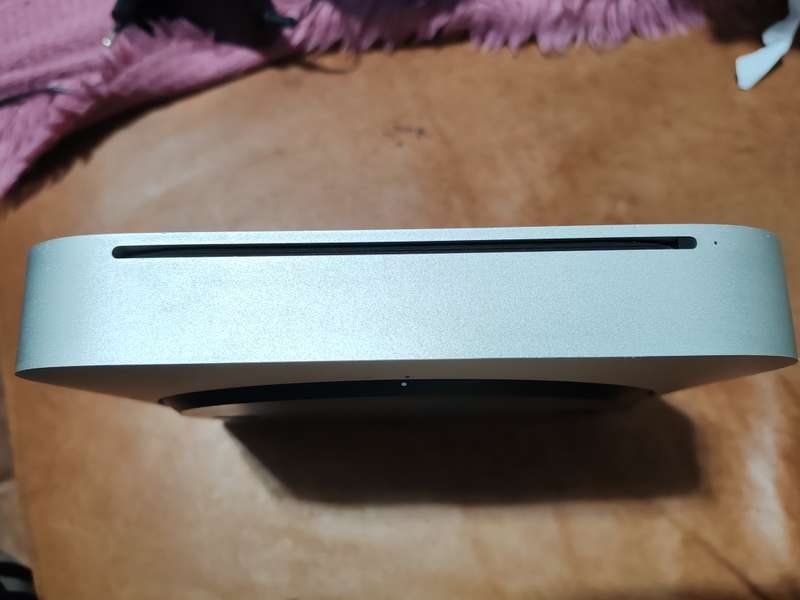

• 8x slot-loading SuperDrive (DVD±R DL/DVD±RW/CD-RW)
  • Maximum read: 8x DVD-R, DVD+R, DVD-ROM, DVD-ROM (double layer DVD-9), DVD-R DL (double layer), DVD+R DL (double layer), DVD-RW, and DVD+RW; 24x CD
  • Maximum write: 8x DVD-R, DVD+R; 6x DVD-R DL (double layer), DVD+R DL (double layer), DVD-RW; 8x DVD+RW; 24x CD-R; 24x CD-RW
