Machifit 12V GM25-310 30/70/100/500rpm DC Encoder Gear Motor Metal Speed Re... (ROTATE SPEED: 30RPM)

SELECTED OPTION:
ROTATE SPEED: 30RPM

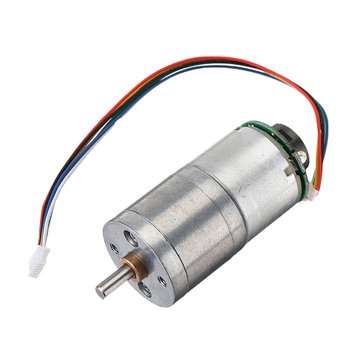

Description: Machifit 12V GM25-310 30/70/100/500RMP DC Encoder Gear Motor Metal Speed Reduction Motor with Cable
Specification:
Brand: Machifit Model: GM25-310 Voltage: 12V

Type	Gear ratto	No load		Load torque			Stall
		Speed	Current	Speed	Current	Torque	Current	Torque
A	1:300	30RPM	a150mA	28RPM	a170mA	850g.cm	a2.1A	6.4kg.cm
B	1:150	70RPM	a170mA	65RPM	a170mA	680g.cm	a2.1A	5.8kg.cm
C	1:90	100RPM	a170mA	91RPM	a150mA	550g.cm	a2.1A	4.8kg.cm
D	1:18	500RPM	a180mA	455RPM	a185mA	680g.cm	a2.1A	4.8kg.cm

Feature: - This DC motor features large moment of force, low speed, and low noise. - The gear motor is primarily designed to reduce speed in a series of gears, which in turn creates more moment of force. - Applications: perfect for window opener, door opener, mini windlass etc. - This motor is adopted of pure copper wire coil, with low heat and low loss. - The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life. Package Included: 1 x DC Encoder Gear Motor with cable More Details:
