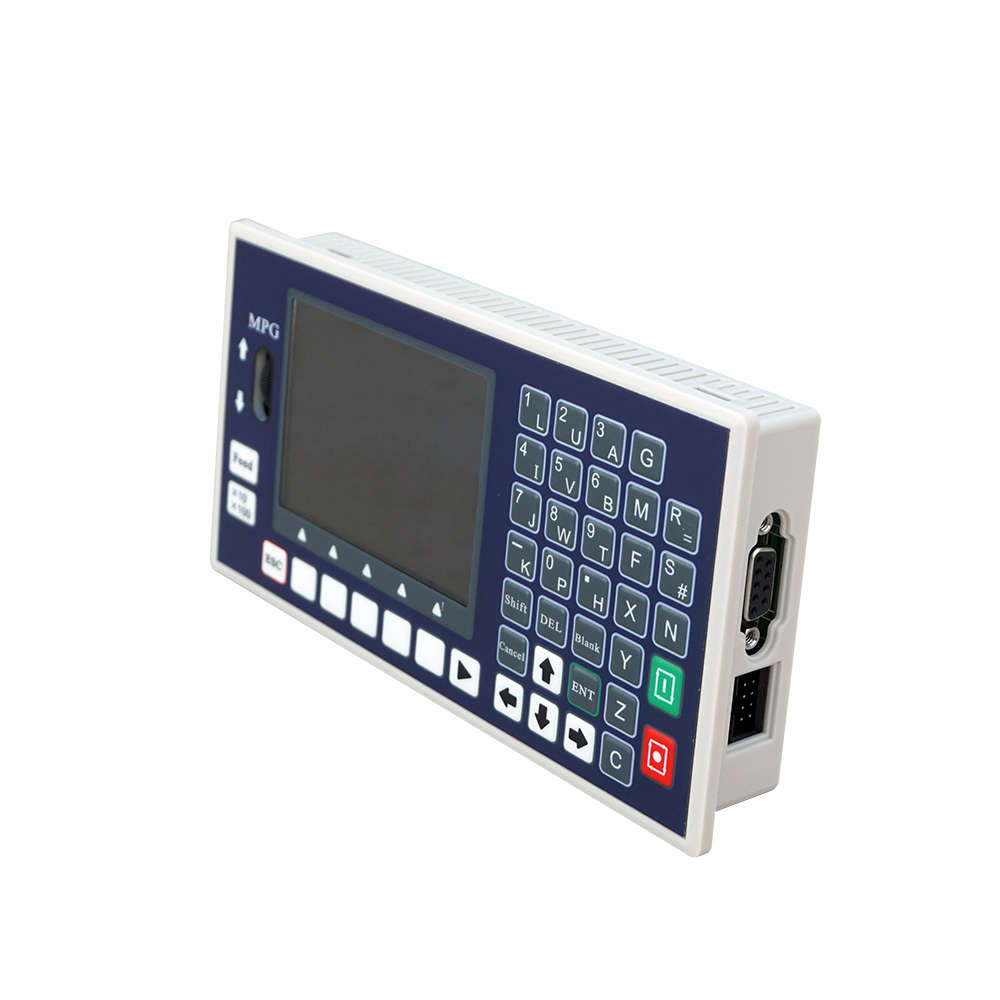

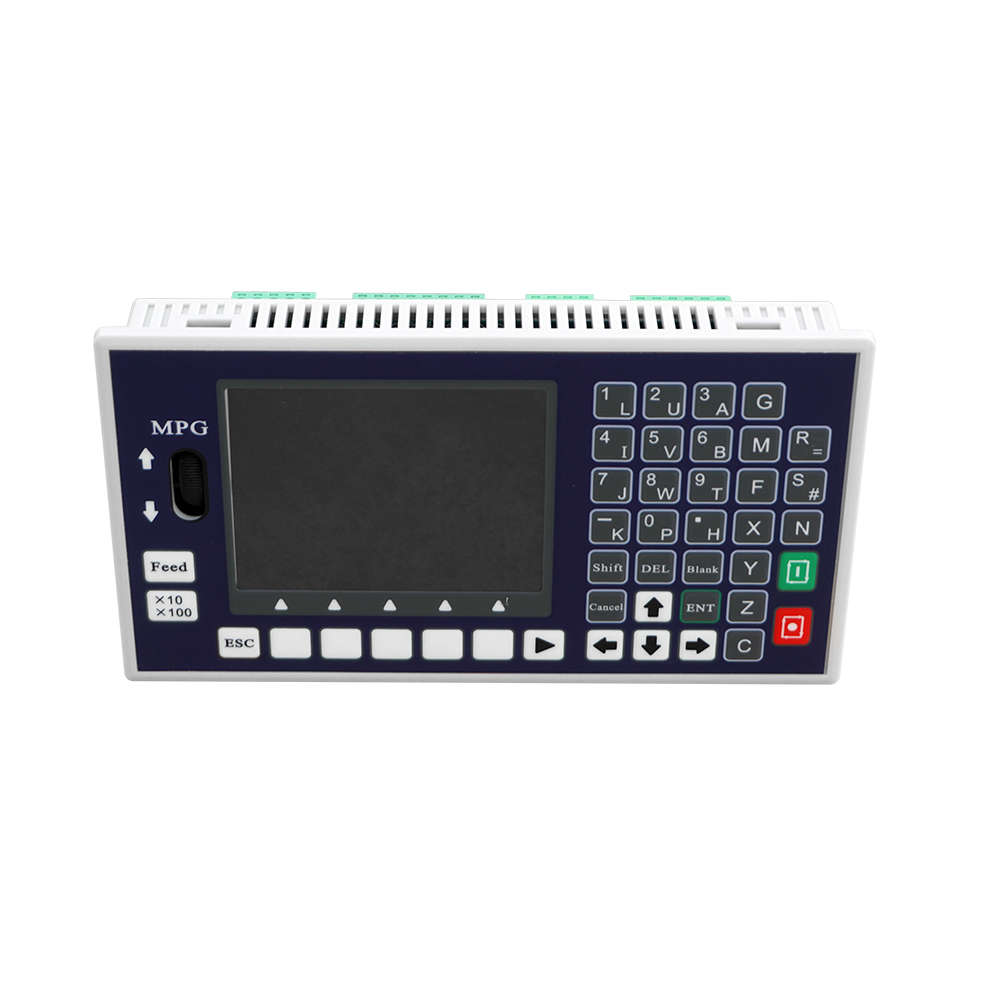

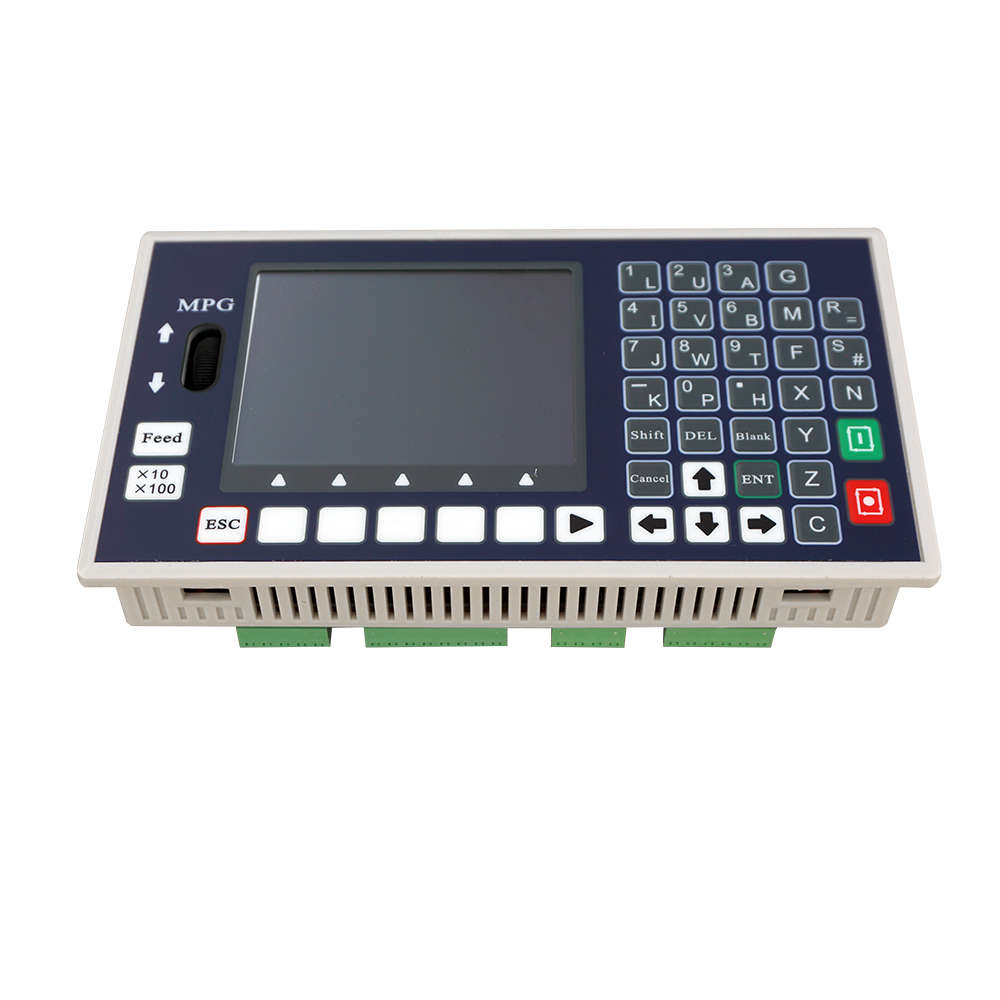

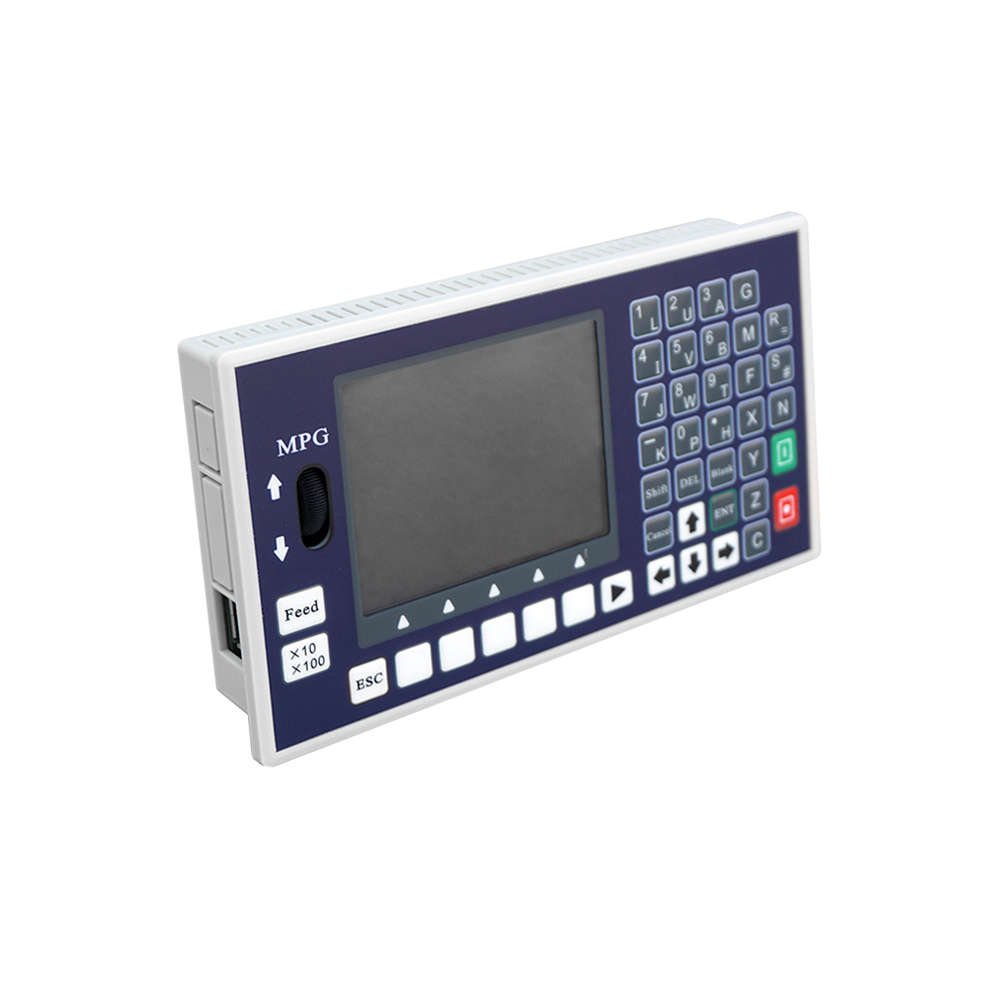

Machifit 4 Axis CNC Motion Controller TC55H Stand Alone Servo Stepper USB Spindle G Code MPG

Specification:
Minimum data unit 0.001 mm
Maximum data size ± 99999.999mm
Maximum Speed: 24m/min (pulse is 0.001mm)
Maximum pulse output frequency 400KHz
Axis: 1-4 (X,Y, Z,C)
X,Y,Z,C axis can conduct linear interpolation, X,Y can do circular interpolation.

Electric Gear: numerator :1-99999 denominator: 1-99999
USB: Importing program and boot picture

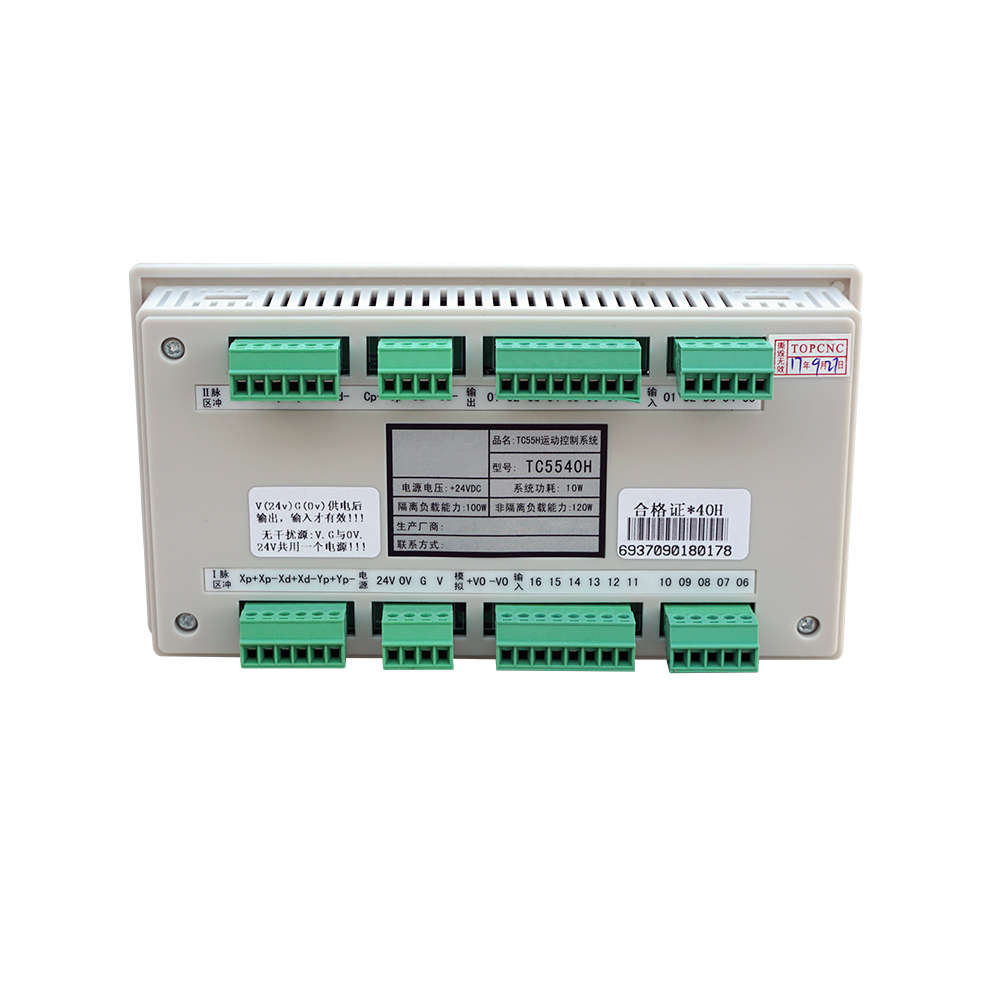

Isolated I/O port
Maximum Program Line: 1000
Maximum Program number: 99
RAM: 128M

External Manual Operation: motor clockwise and counter clockwise spinning, start, pause, alert and stop
G code and M code
One panel MPG
3.5 inch color LCD, pixel 320*240
Analog Spindle Output: one 0-10v analog spindle
Support both servo and stepper motor
Support metric system, round, division, degree, inch etc.

Introduction:
Supports all versions of Mach3 and 3-axis linkage.
Support system: Windows XP, 2000, Vista, 7.
Full support USB hot-swappable, USB connection status monitoring at any time. Under Mach3 working state, USB cable unplugs and then plugs in, but also the normal connection.
Maximum step-pulse frequency is 400KHz, can connect servo driver and stepper driver.
All IO port fully isolated, strong anti-interference, stable performance.

Manual: click here

Package Included:
1 x controller
1 x USB cable which you connect between computer and controller as power supply

More Details:
