Name: Machifit 775 795 895 Motor/Motor Bracket DC 12V-24V 3000-12000RPM Motor Large Torque Gear Motor
SKU: 1342261
Price: 69.52 ZAR
Availability: SoldOut
Rating: 5 (1 reviews)

Machifit 775 795 895 Motor/Motor Bracket DC 12V-24V 3000-12000RPM Motor Large Torque Gear Motor

20 were available / new

Indicative market price: R91.76

R69.52

24% off

Shipping

R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 1 business day. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

MacSell5979

95.24 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Customer ratings:

1 ratings

Product code

1342261

Bob Shop ID

434825438

Description:
Machifit 775 795 895 Motor/Motor Bracket DC 12V-24V 3000-12000RPM Motor Large Torque Gear Motor

Specification:

Type	Model
#1	775/795 bracket
#2	895 bracket

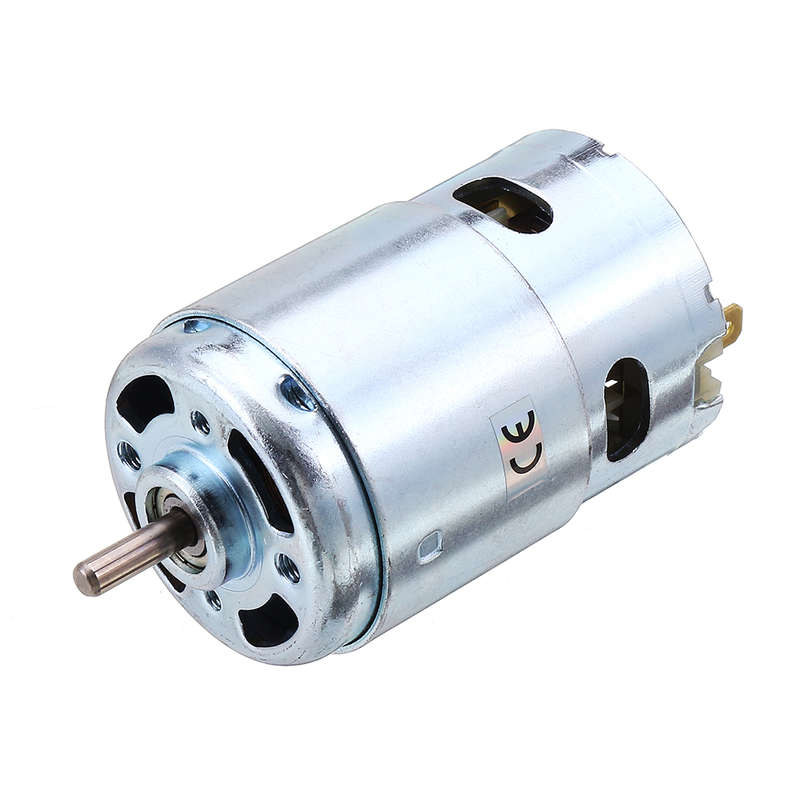

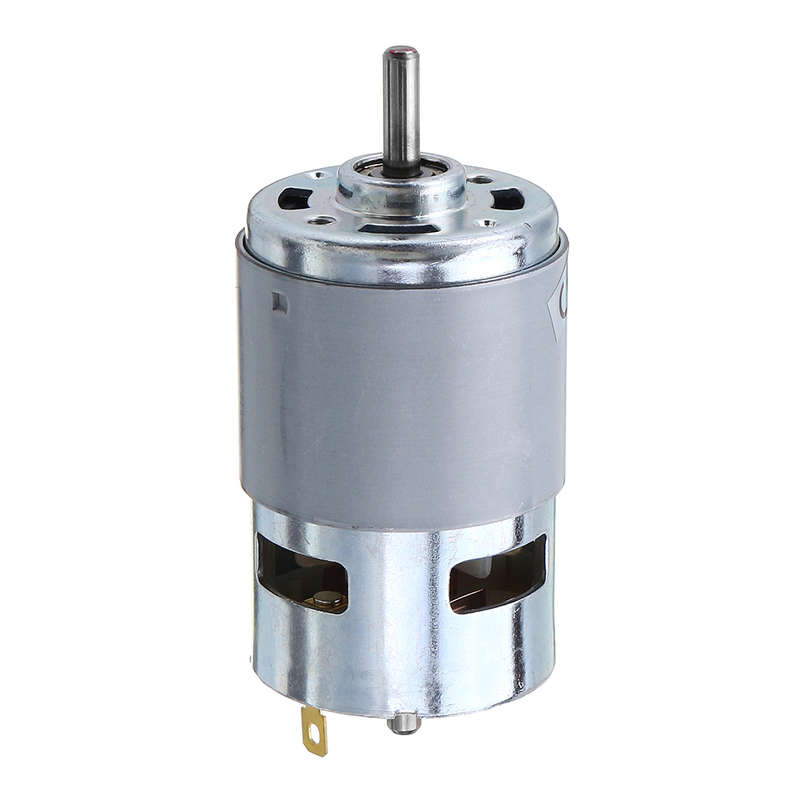

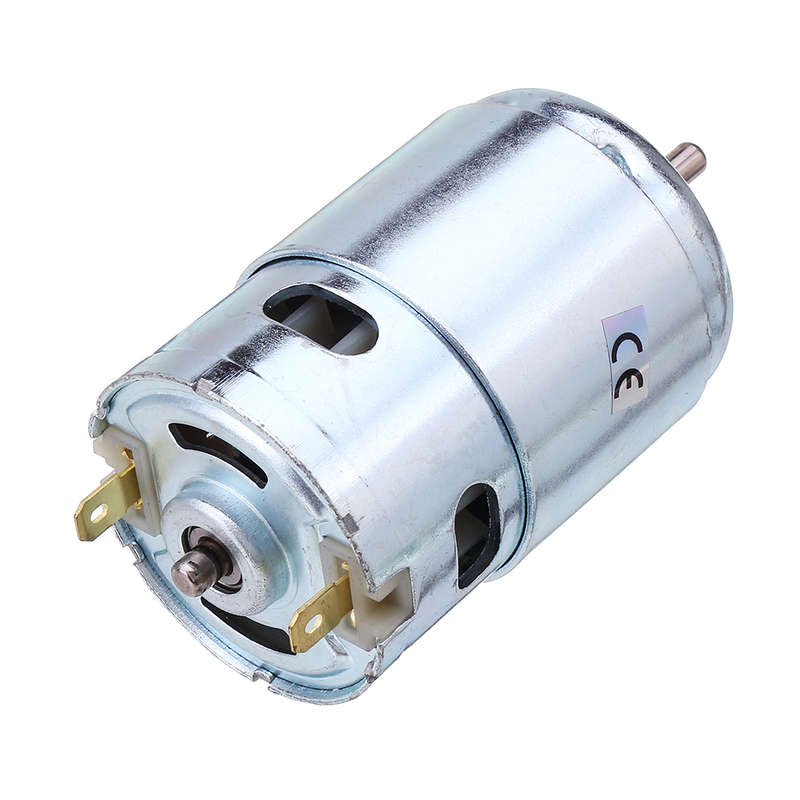

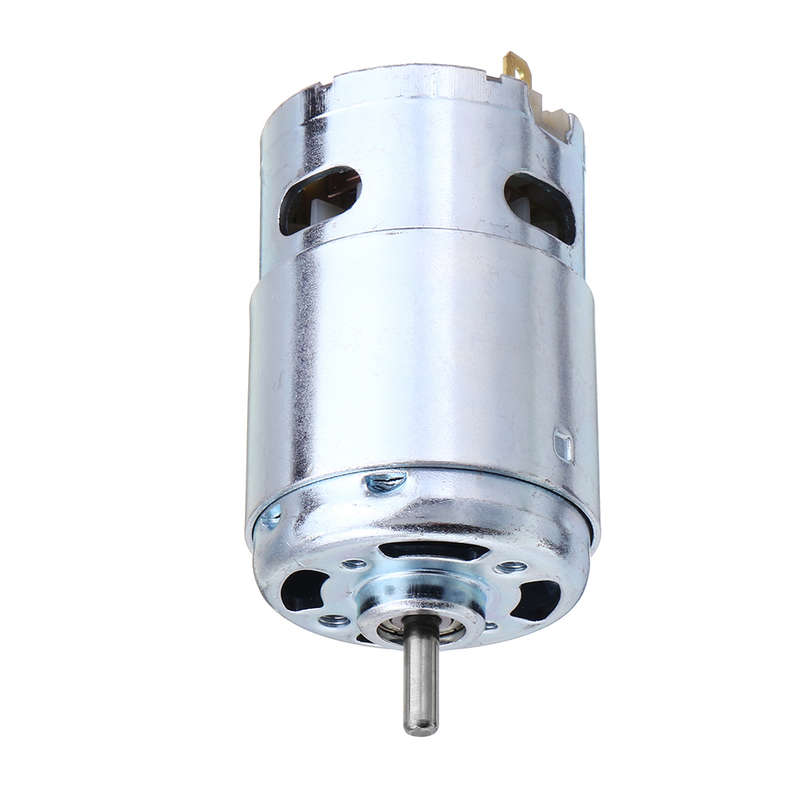

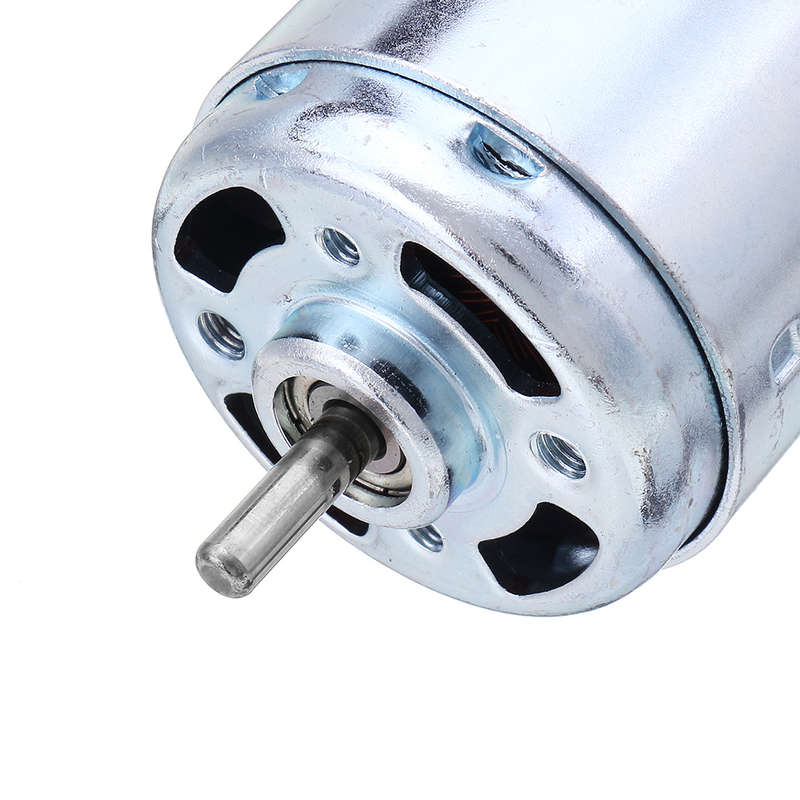

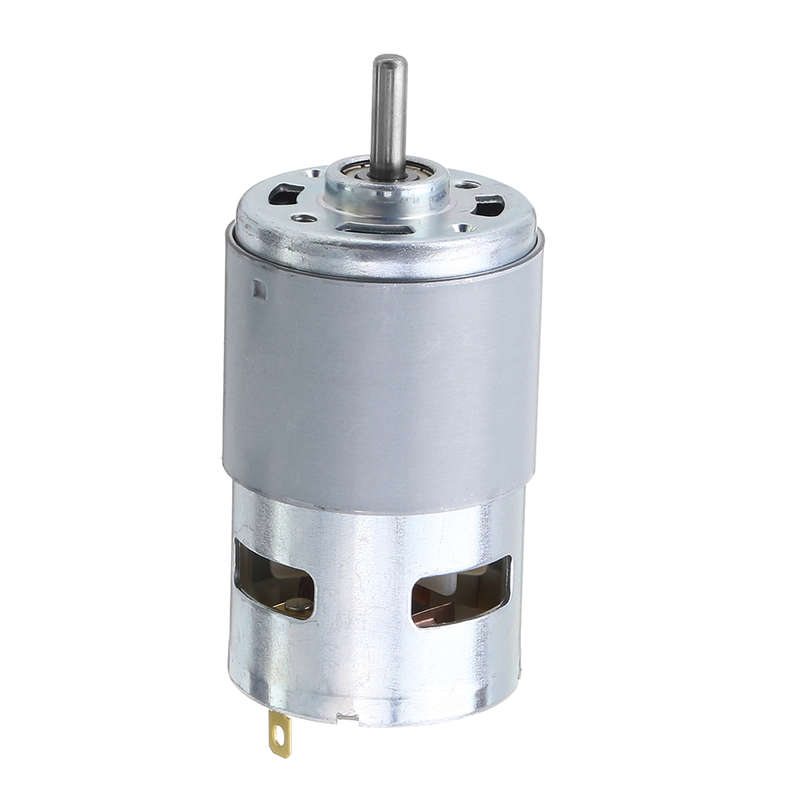

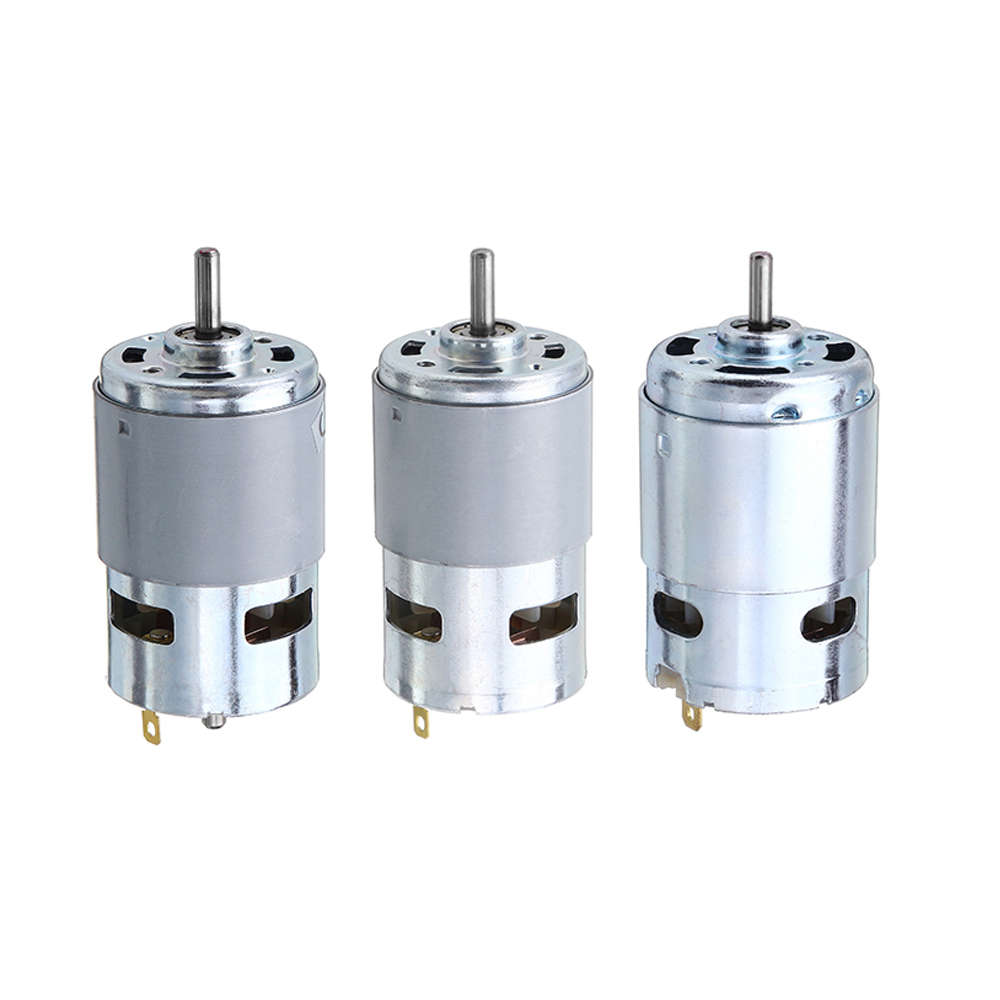

#3	775 motor
#4	795 motor
#5	895 (low speed)
#6	895 (high speed)

Model	775	795	895 (low speed)	895 (high speed)
Rated voltage	12V	12V	12-24V	12-24V
Speed	12V 10000rpm	12V 11000rpm	12V 3000rpm 24V 6000rpm	12V 6000rpm 24V 12000rpm
Torque	3kg.cm	4kg.cm	12V: 5.2kg.cm 24V: 10kg.cm	12V: 4.2kg.cm 24V: 8kg.cm
Former high level	4.5mm	4.5mm	4.5mm	4.5mm
Front steps diameter	17.5mm	17.5mm	18mm	18mm
Body diameter	42mm	42mm	48mm	48mm
Shaft diameter	5mm	5mm	5mm	5mm
Body length	67mm	70.5mm	72mm	72mm
Length of output shaft at tail	6mm	3mm	6mm	6mm
Diagonal installation pitch	29mm	29mm	29mm	29mm
Mounting hole size	M4	M4	M4 M5	M4 M5
Power	150W	180W	200W	200W

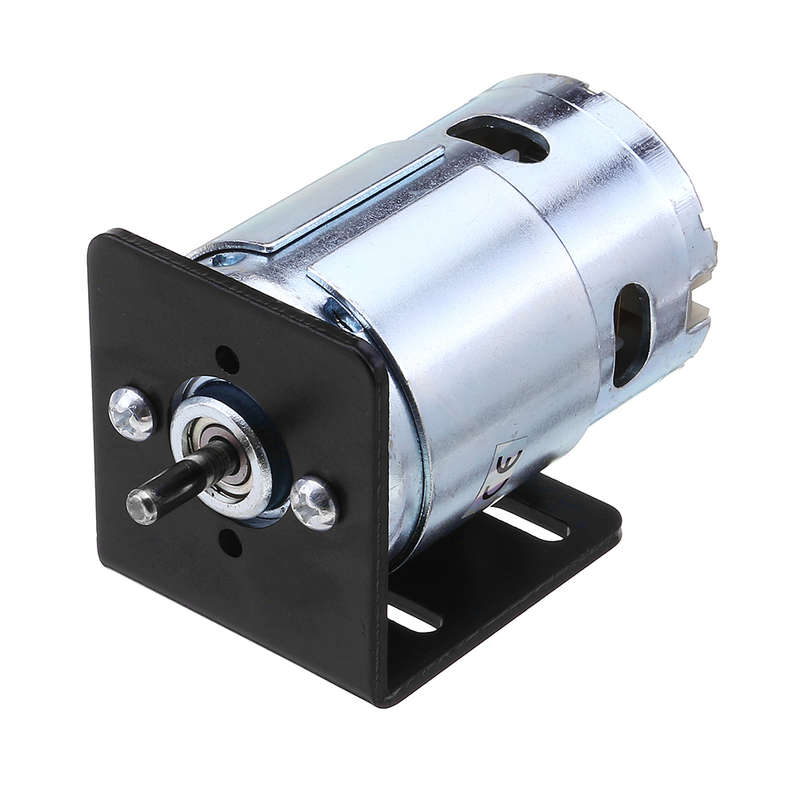

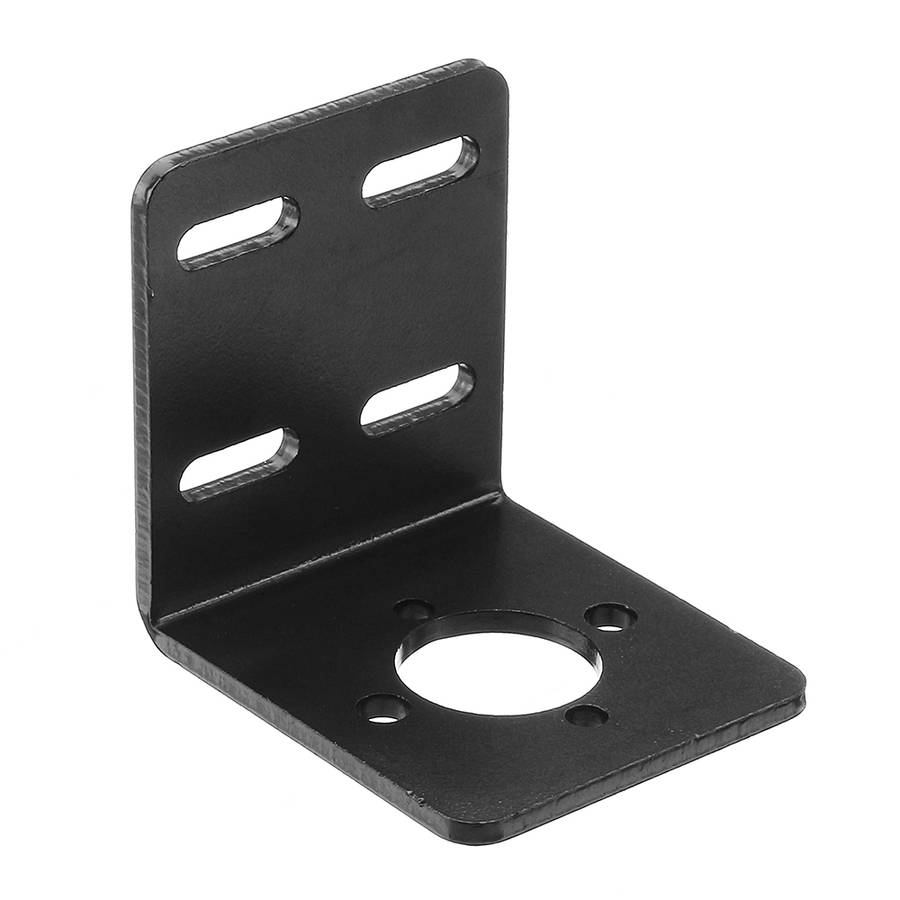

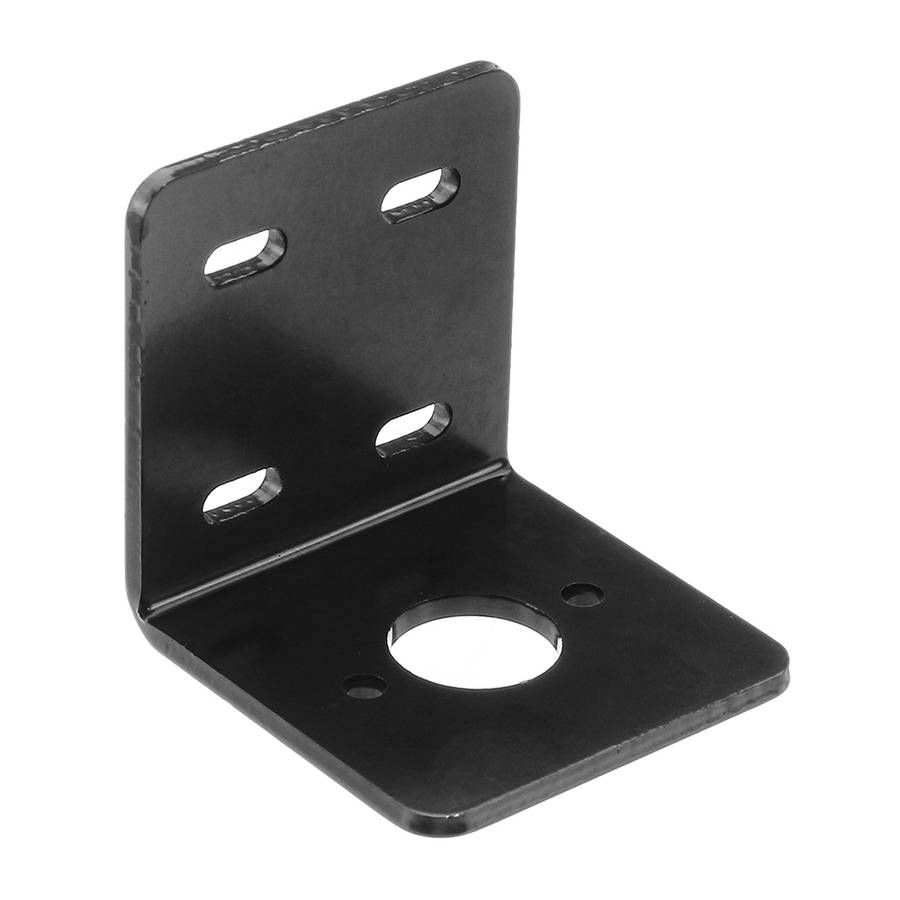

Model	775/795 bracket	895 bracket
Vertical surface
Thickness	3mm	3mm
Height	52mm	54mm
Width	50mm	50mm
Bottom plate
Length	52mm	54mm
Thickness	3mm	3mm
Motor fixing hole	M4	vertical hole:M4 29mm Cross bore: M5 32mm

Features:

Starting current needs to above 10A.

Double ball bearings, high speed, large torque, low noise.

Built-in cooling fan.

Durable and long service life.

Suitable for mini cutting machine, sanding machine, lathe tool, milling machine, bench drill, electric hand drill, polishing machine, electric grinder, engraving machine, etc.

Note:
Please note that the package includes one item only.

Package Included:
1 x Motor

More Details:

Machifit 775 795 895 Motor/Motor Bracket DC 12V-24V 3000-12000RPM Motor Large Torque High Power Gear
