Machifit BT30-ER16-70 Collet Chuck Tool Holder for CNC Milling Lathe Tools

20 available / new

R743.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3505

93.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643383789

Description:

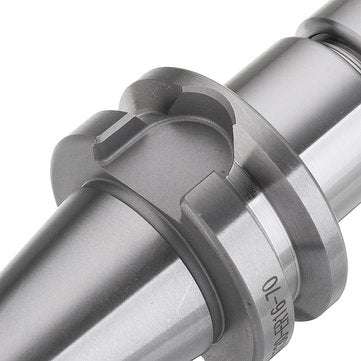

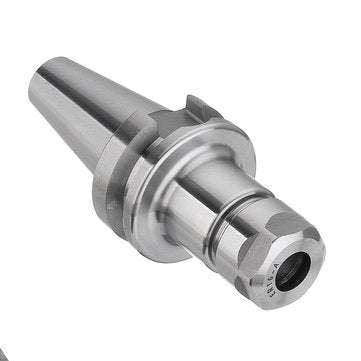

Machifit BT30-ER16-70 Collet Chuck Tool Holder for CNC Milling Lathe Tools

Specification:

Model	BT30-ER16-70
Material	40cr
Hardness	HRC45
Accuracy	a0.01mm
Draw bar thread	M12 x 1.75
Effective length	50mm

Model	d1 (mm)	d2(mm)	L1(mm)	L(mm)
BT30-ER16-70	28	28	70	118.4

Features:
-The handle has stable performance and long service life, after heat treatment has been greatly improved in hardness handle. -Advanced production technology to ensure the accuracy of the handle, to meet your requirements in high precise machining. -Chuck holder is stable using life, advanced vacuum quenching furnace to achieve carbon and nitrogen Co doped increase the hardness of the handle. -The life rate is high, and the cost can be reduced. Application: It's suitable for drilling, milling, engraving, high precision, widely used in precision machining. Attention: -CNC tool placement collet, must go beyond the collet hole effective clamping length. -Use the correct wrench device, can not be arbitrarily changed so as not to cause damage. -Do not use the rod with a notch or a plane of the CNC cutting tools. Package Included:
1 x BT30 ER16 Collet Chuck Holder

More Details:
