Machifit DC 24V Permanent Magnet Motor 90/140rpm Turbular Gear Reducer Motor (ROTATE SPEED: 90RPM)

New

10 were available

R464.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3962

92.49 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Customer ratings:

1 ratings

Bob Shop ID

573021659

SELECTED OPTION:
ROTATE SPEED: 90RPM

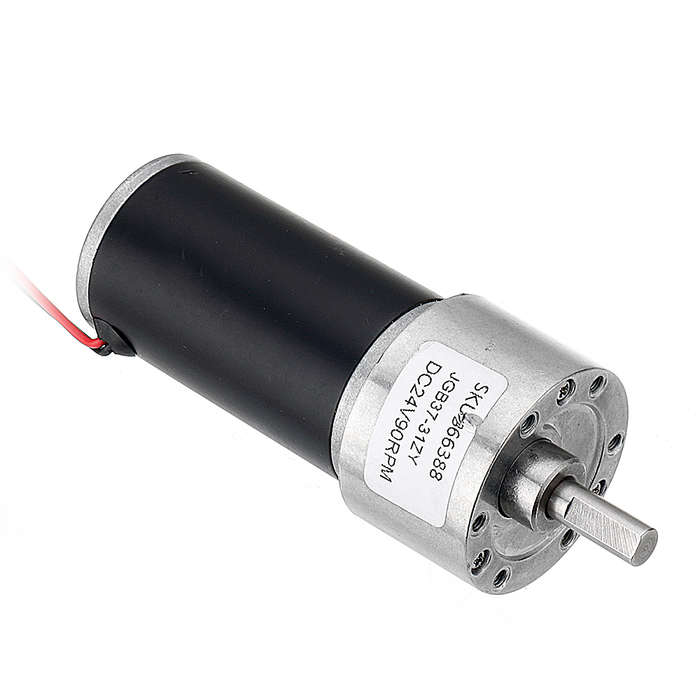

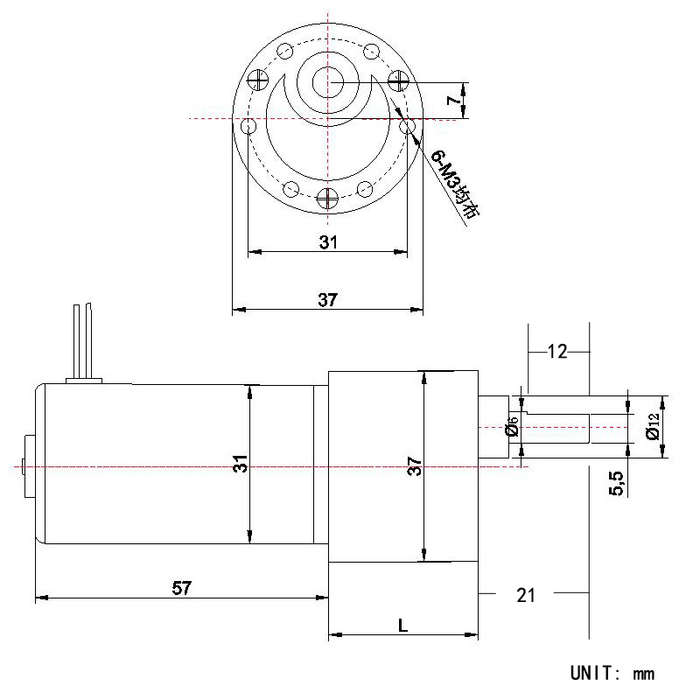

Description: 37GB-31ZY DC 24V 90/140rpm tubular permanent magnet motor ? Specifications: Type: 37GB-31ZY tubular permanent magnet motor?? Voltage: 24V Overall length: 80mm Shaft length: 23mm Lline length: 200mm? Shaft diameter: 6mm

Voltage	24V	24V
No Load Speed (rpm)	90	140
No Load Current (A)	a???280	a???280
Load Speed (rpm)	73	110
Load Current (A)	a???1	a???1
Load Torque (Kg.cm)	18	11.8
Stall Toque?(Kg.cm)	35	27
Stall?Current (A)	4.4	4.4
Reducer Ratio (1:00)	90	56
L (mm)	23	23

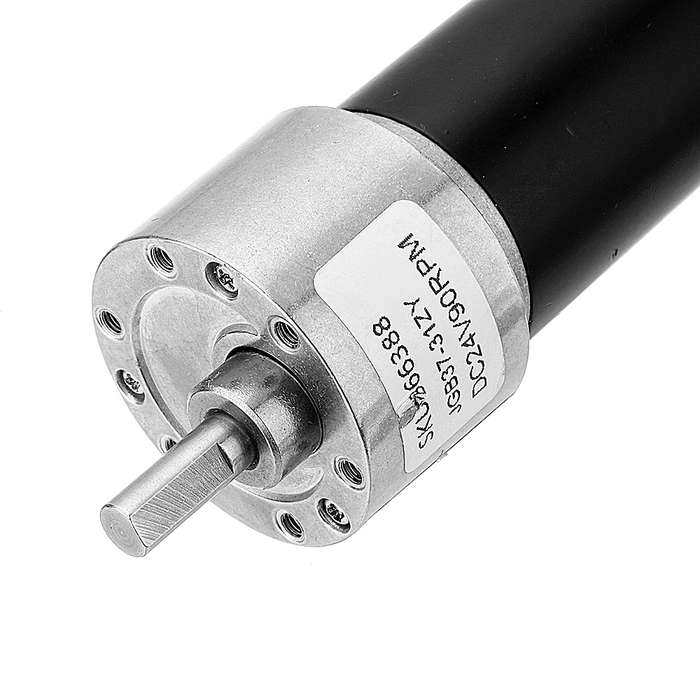

? Features: 1. All-metal gear: Use all-metal gear material to make it more wear-resistant and extend service life. 2. D type shaft : D type outlet shaft is more convenient for installation and is not easy to slip, saving installation time. 3. Pure copper wire winding: small resistance, strong electrical, so that the motor torque increased. 4. High torque, adjustable,low energy consumption, low noise, stable life, long life, positive and negative turn. ? Package Included: 1 X 37GB-31ZY motor ? More Details:?
