ROTATE SPEED: 90RPM

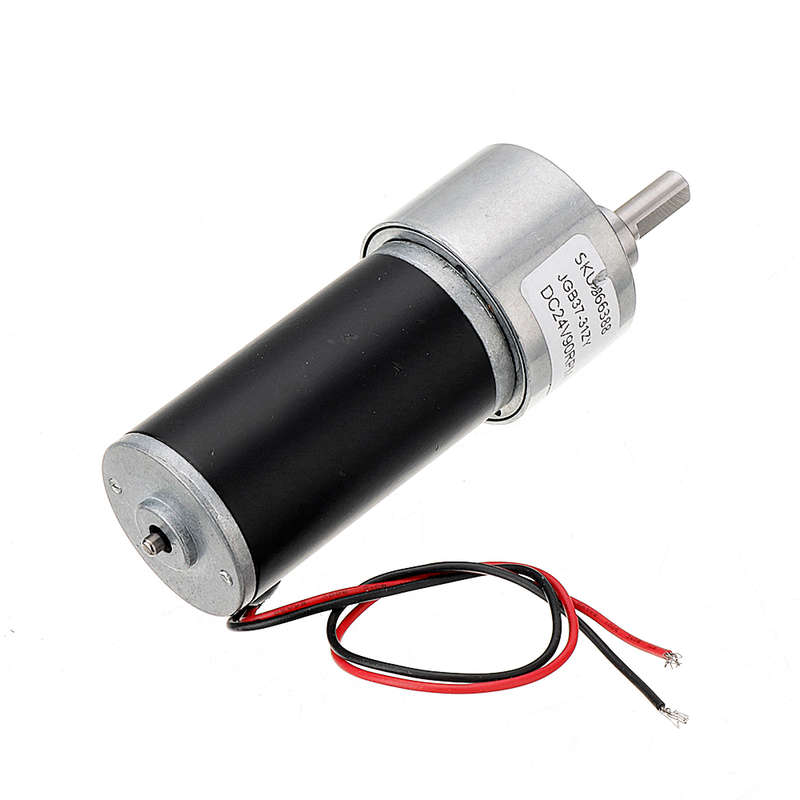

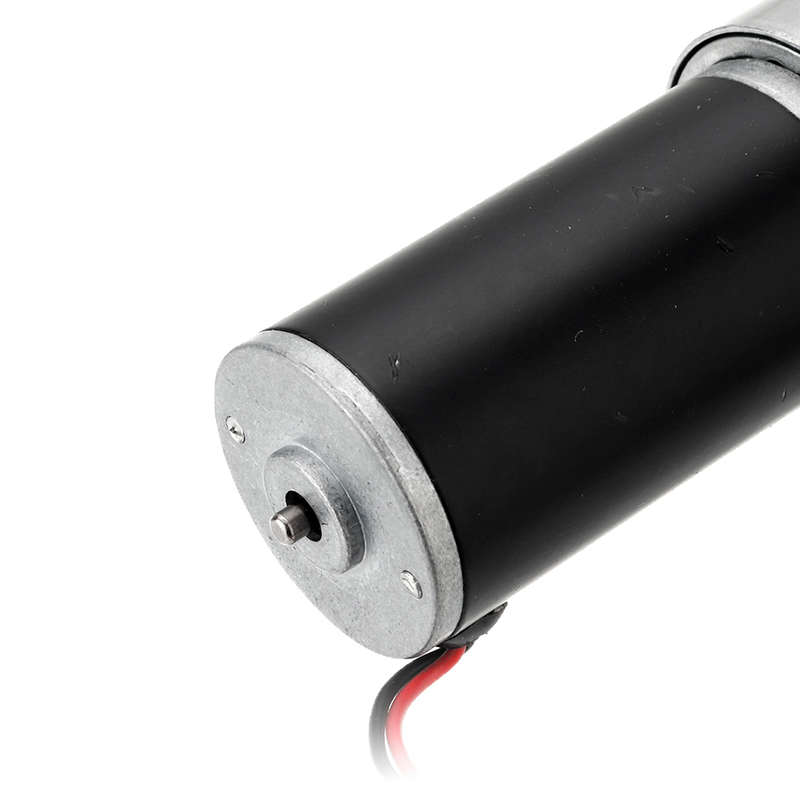

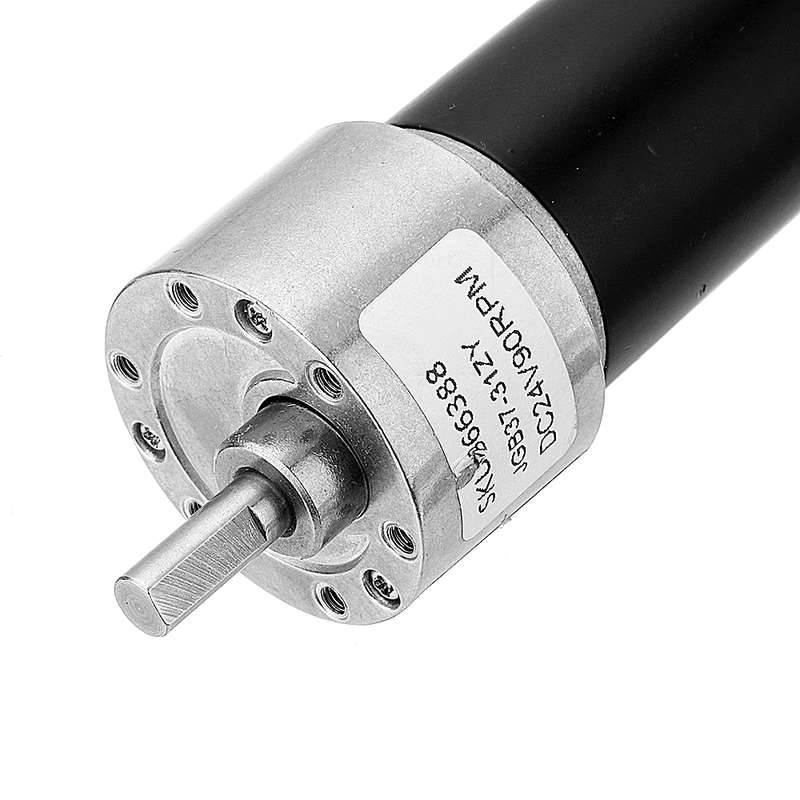

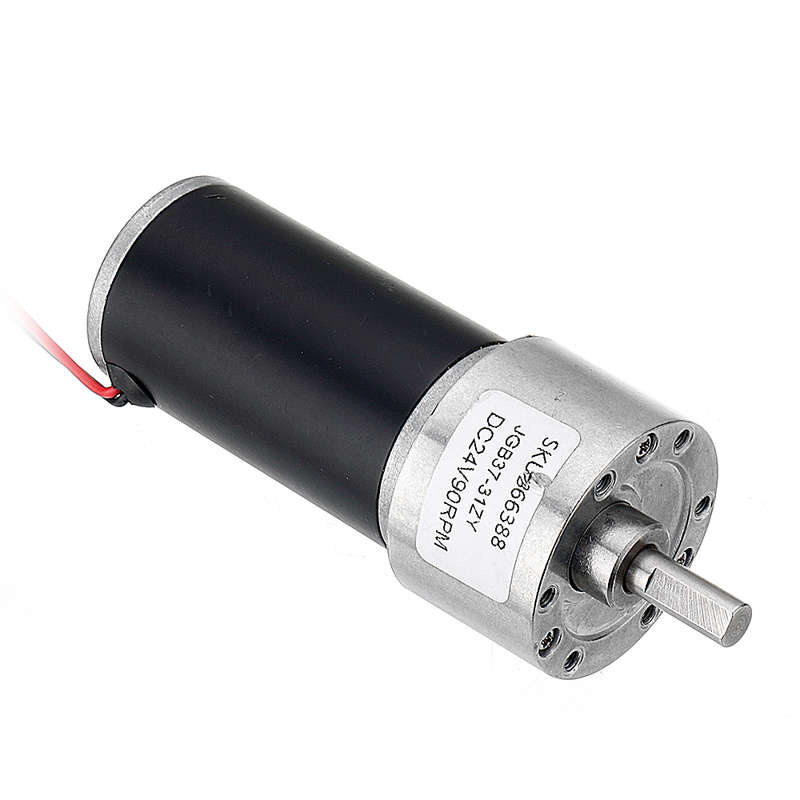

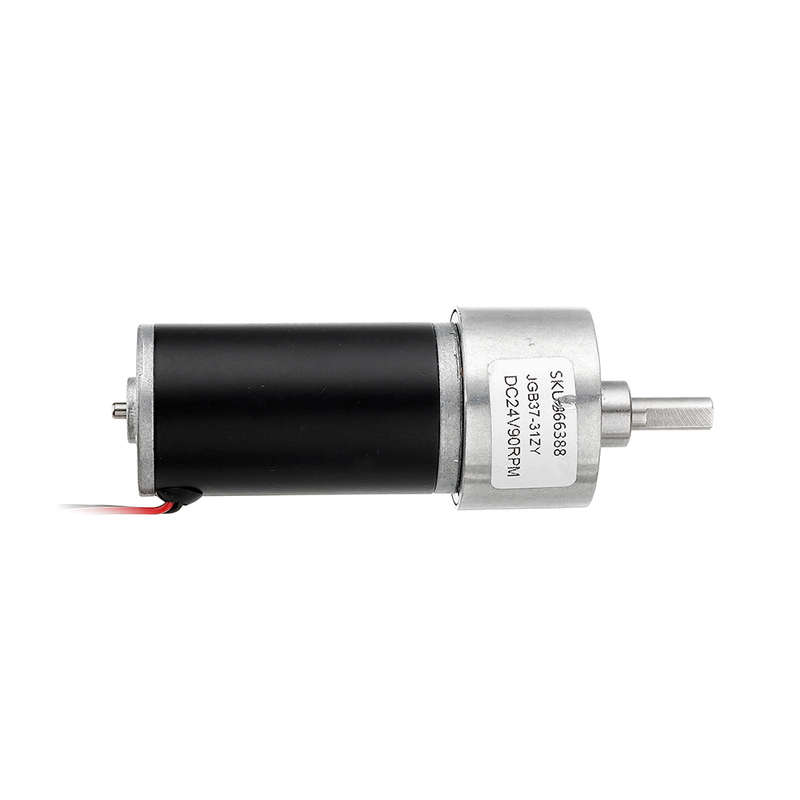

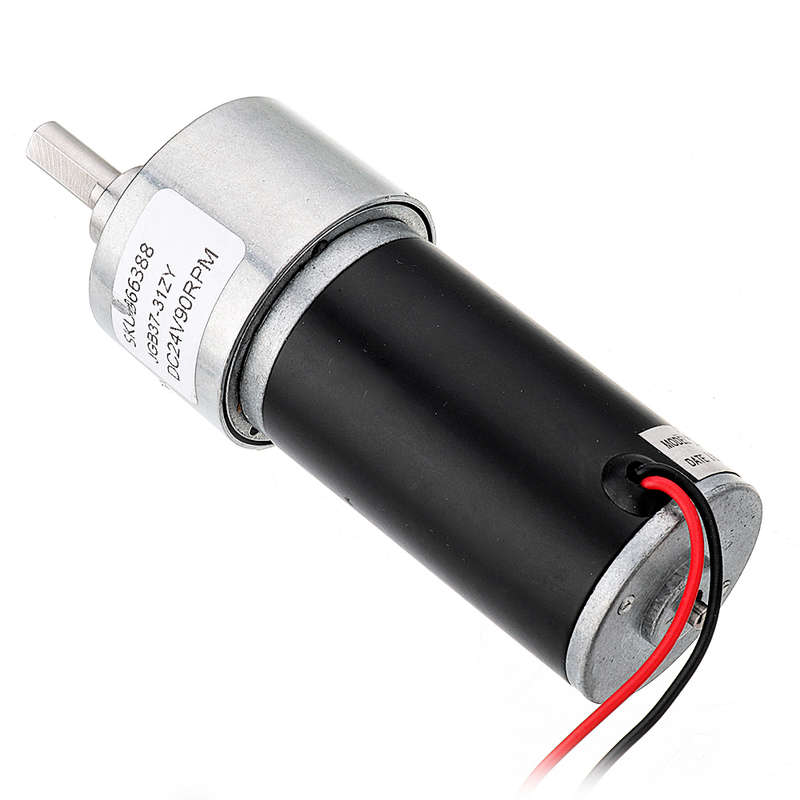

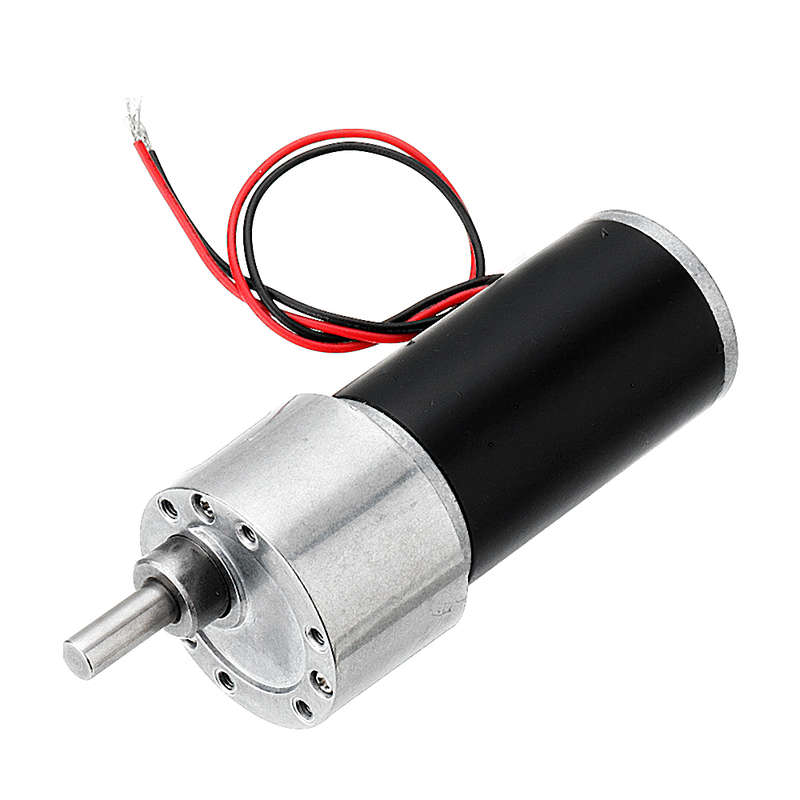

Description: 37GB-31ZY DC 24V 90/140rpm tubular permanent magnet motor Specifications: Type: 37GB-31ZY tubular permanent magnet motor Voltage: 24V Overall length: 80mm Shaft length: 23mm Lline length: 200mm Shaft diameter: 6mm
Voltage | 24V | 24V |
No Load Speed (rpm) | 90 | 140 |
No Load Current (A) | a280 | a280 |
Load Speed (rpm) | 73 | 110 |
Load Current (A) | a1 | a1 |
Load Torque (Kg.cm) | 18 | 11.8 |
Stall Toque(Kg.cm) | 35 | 27 |
StallCurrent (A) | 4.4 | 4.4 |
Reducer Ratio (1:00) | 90 | 56 |

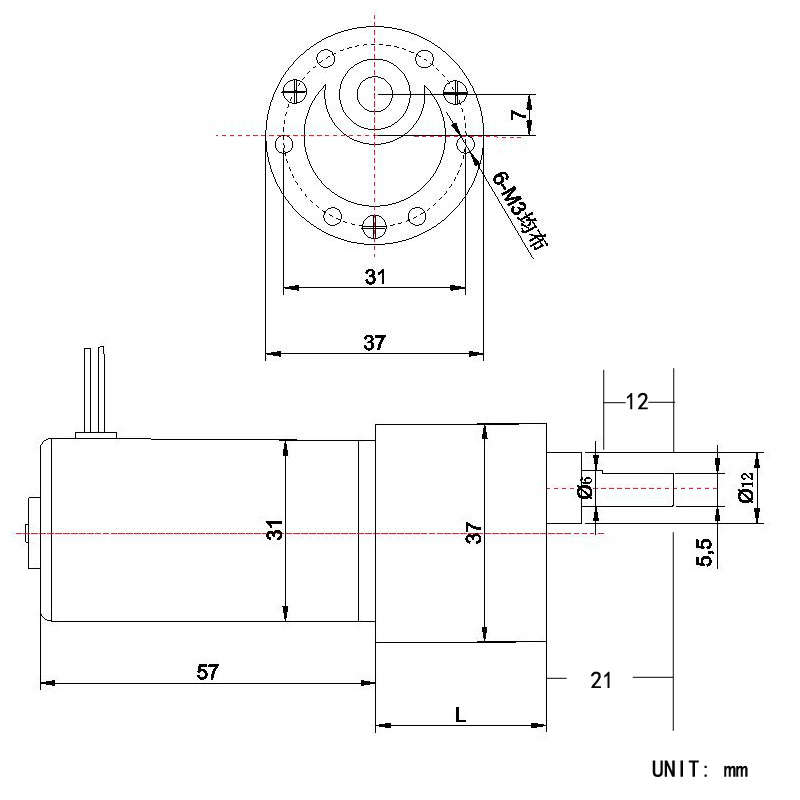

L (mm) | 23 | 23 |
