Name: Machifit ER11 Chuck CNC 500W Spindle Motor with 52mm Clamps and Power Supply Speed Governor
SKU: 1027937
Price: 1434.30 ZAR
Availability: SoldOut

Machifit ER11 Chuck CNC 500W Spindle Motor with 52mm Clamps and Power Supply Speed Governor

20 were available / new

Indicative market price: R1,835.90

R1,434.30

22% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 1 business day. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

MacSell5979

95.41 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Product code

1027937

Bob Shop ID

512524913

Description:

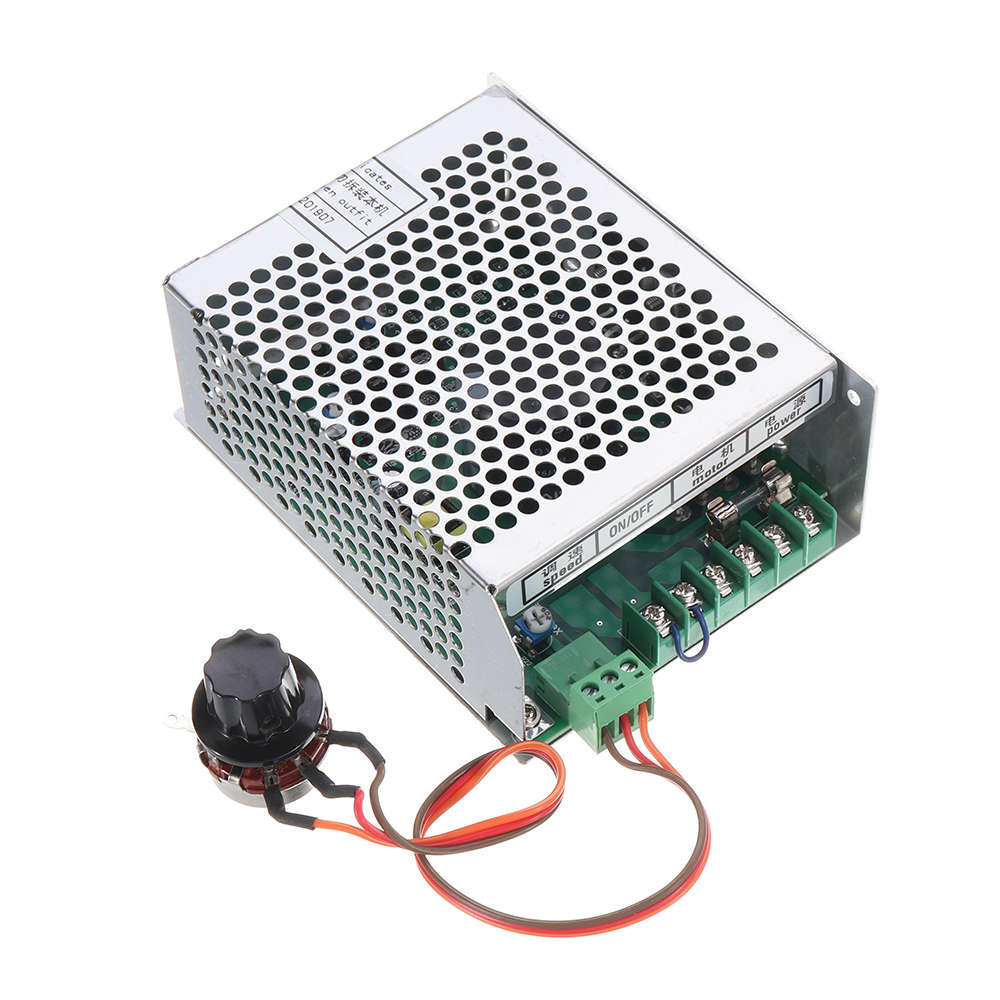

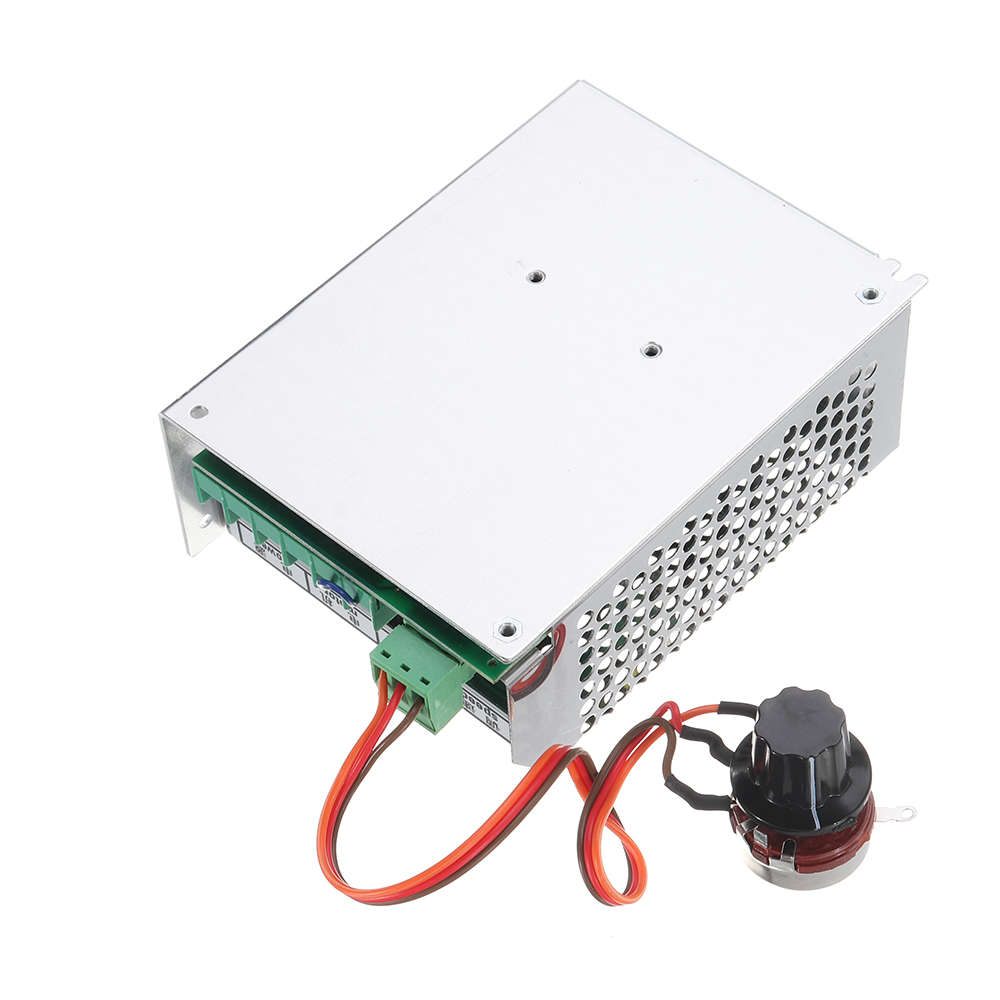

Machifit ER11 Chuck CNC 500W Spindle Motor with 52mm Clamps and AC 110-220V Power Supply Speed Governor For CNC Machine

It is a upgraded AC 110-220V one and now it can be used in AC 110-220V±10% 50/60Hz power supply.

Here are the link of the CE Certification and the Enviromental Certification and you can copy the link and download it:

Specification:

Brand: Machifit

Dimension	130mm×100mm×50mm (LWH)
Input	AC110-220V±10% 50/60Hz
Spindle Motor	500w
Spindle Speed	3000-12000r/min
Motor Diameter	52mm
Motor Length	208mm
Operating Voltage (Output Voltage)	100V DC
Current	6A
Speed	Up to idle up to 15,000 rev / min
Torque	5000G/CM
Insulation Resistance	> 2 megohms
Dielectric Strength	400V
High precision spindle runout 0.01-0.03

Chuck size:

Style: ER11
Chuck Size: 1/8"

Material: High Grade 45 Carbon Steel

Total height: 18mm

Outer diameter(Max.): 11.5mm

Gripping Range: 3mm

Small diameter: 7.8mm

Fits metric shank size(s): 3mm metric shank

Nut Size:

Inner Diameter: 8.7mm

Height: 13mm

Hex Diameter: 17mm

Outer Diameter:19mm

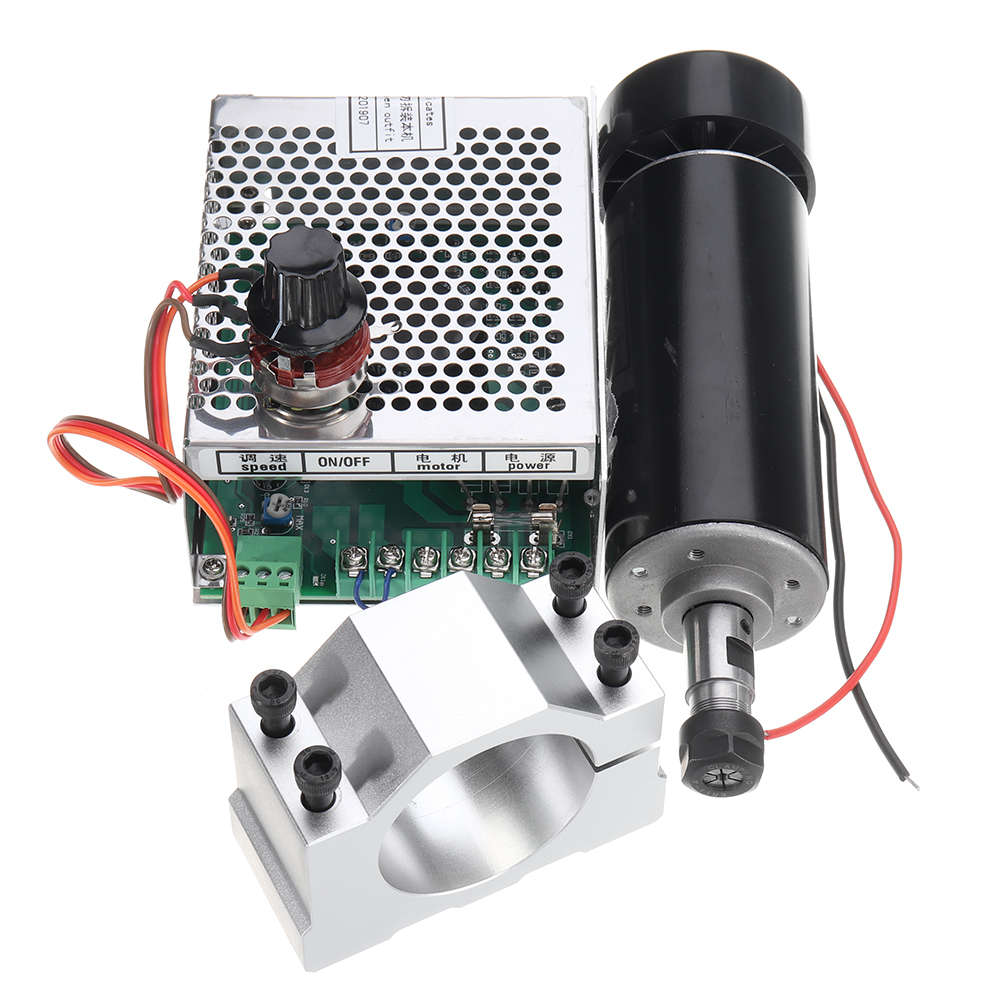

Package Included:

1 x 500W Spindle Motor

1 x Power Supply

1 x 52MM Mount Bracket

1 X ER11 Collect

4 x Screws

Note:
the wire + and - could be connected in both position as you want but make sure the output and input voltage position to be correct.

More Details:
