Descriptions:

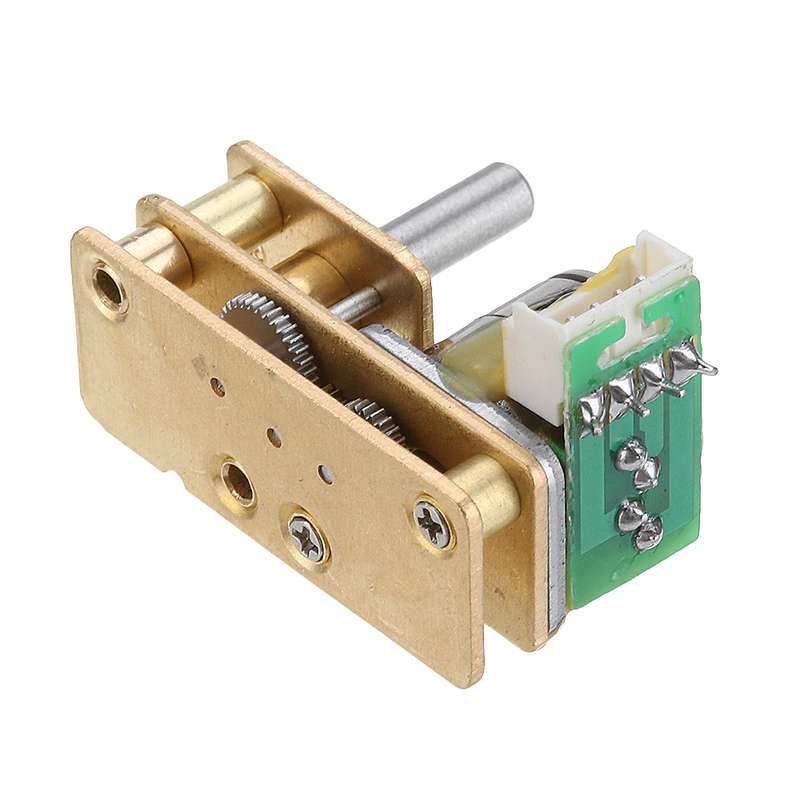

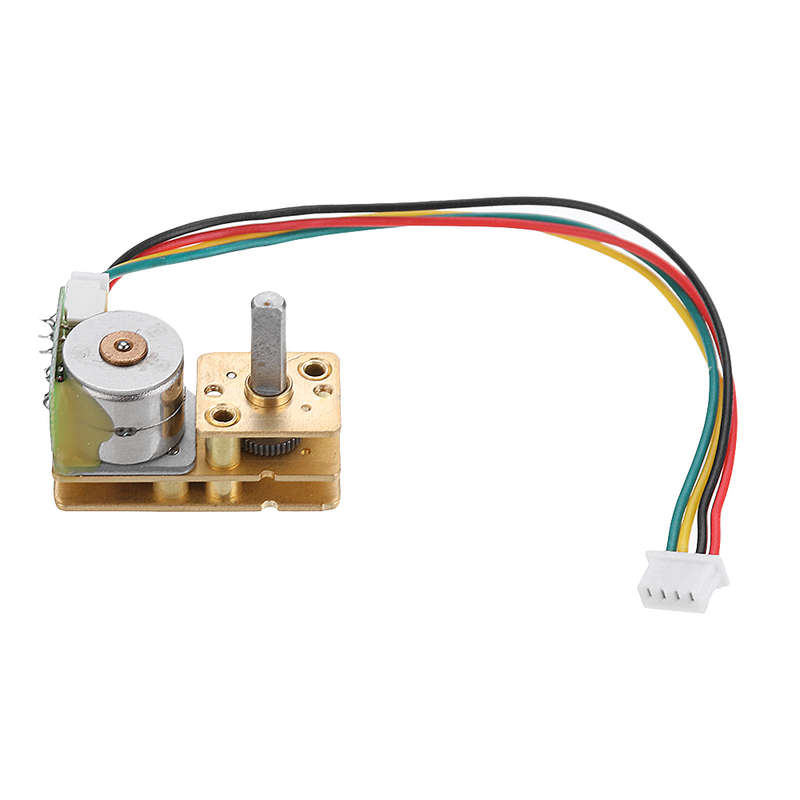

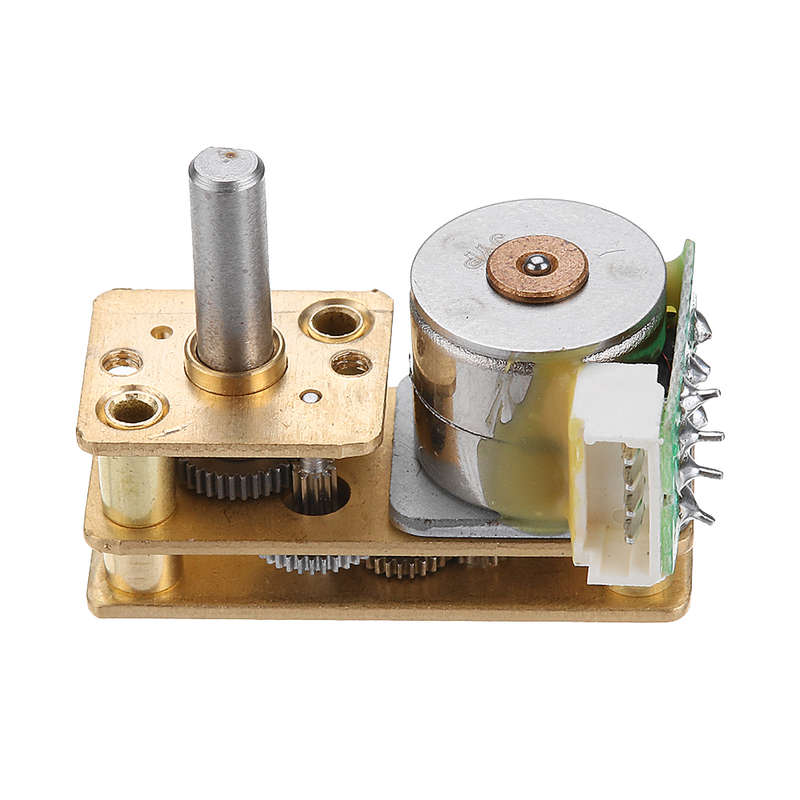

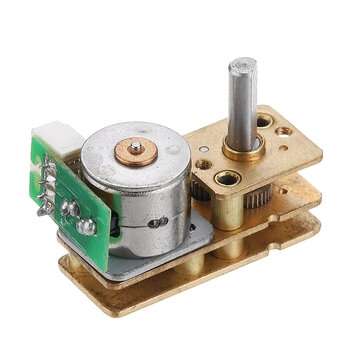

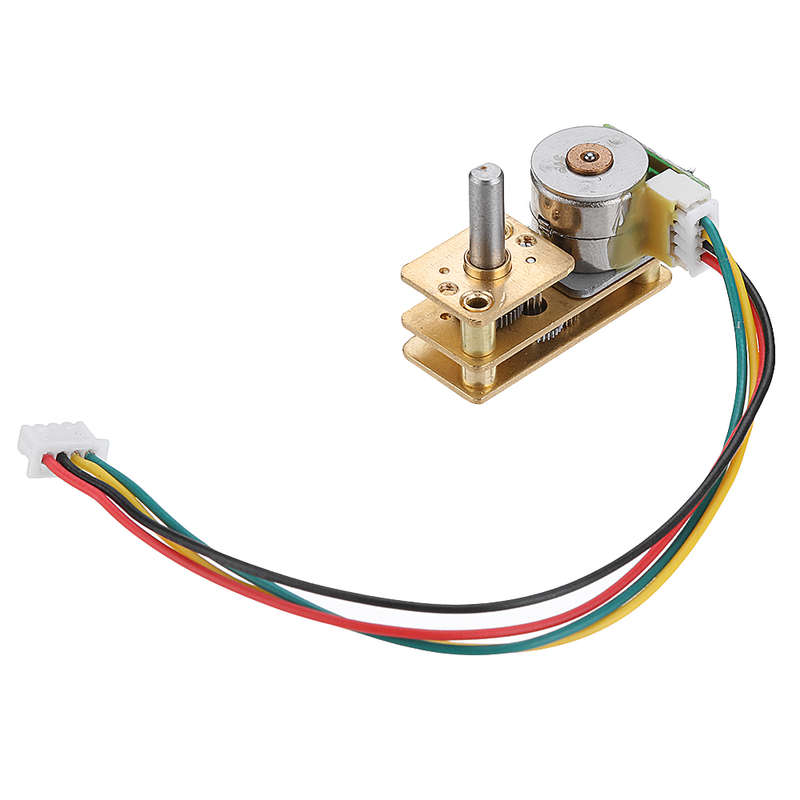

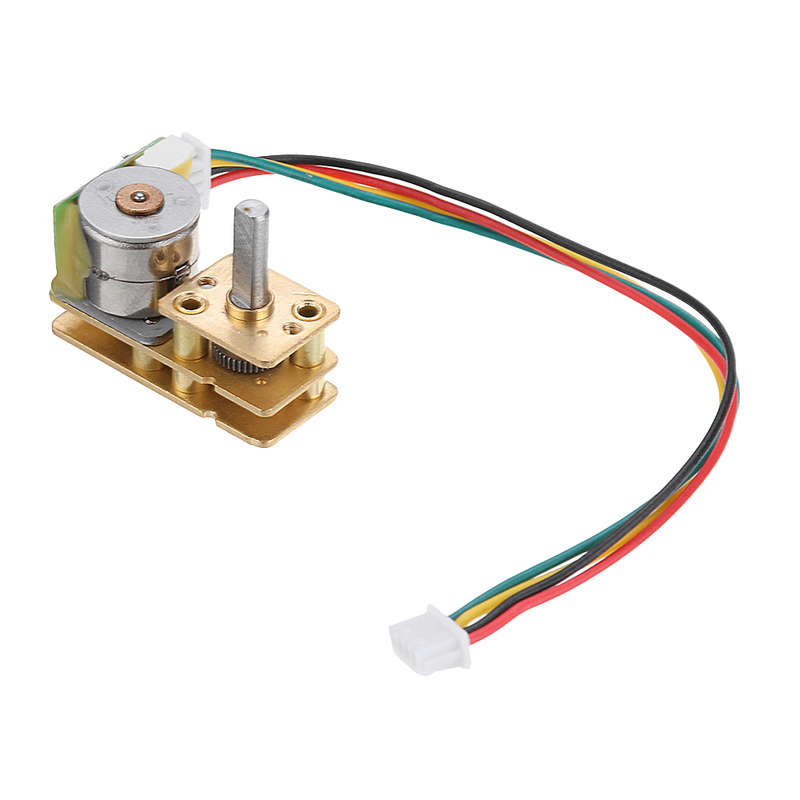

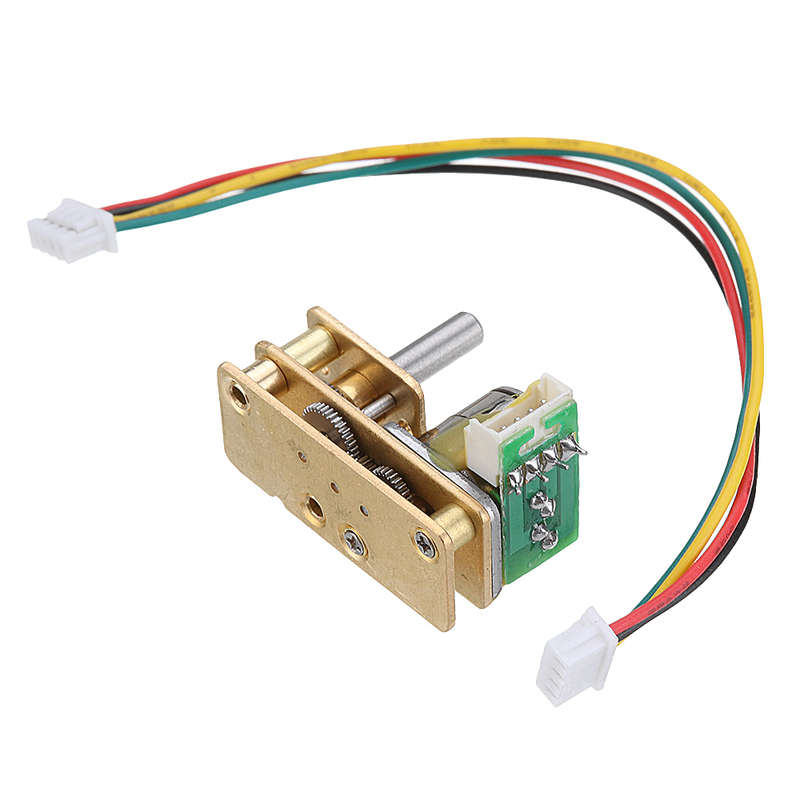

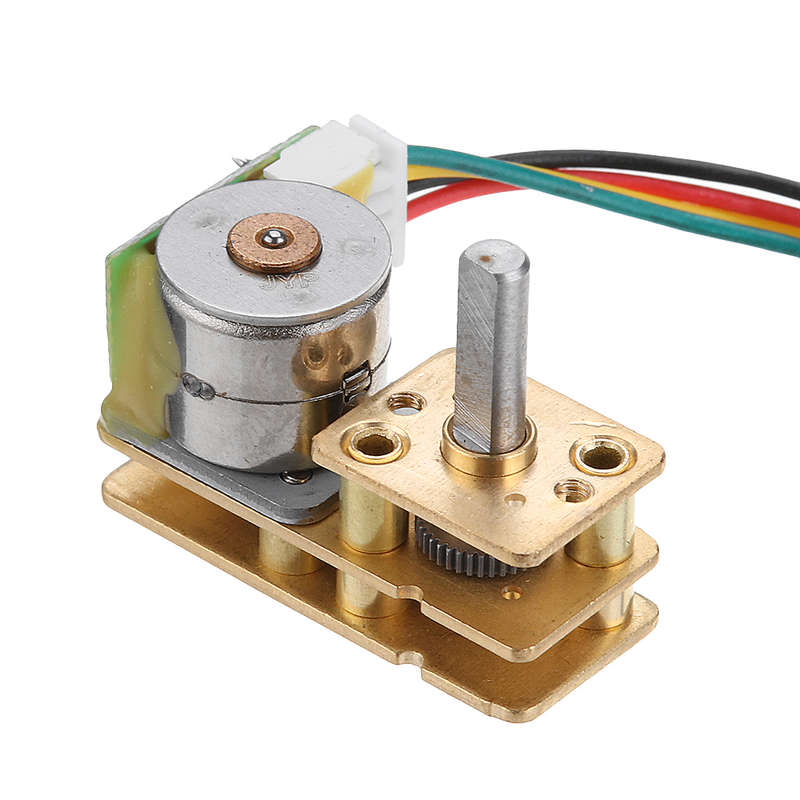

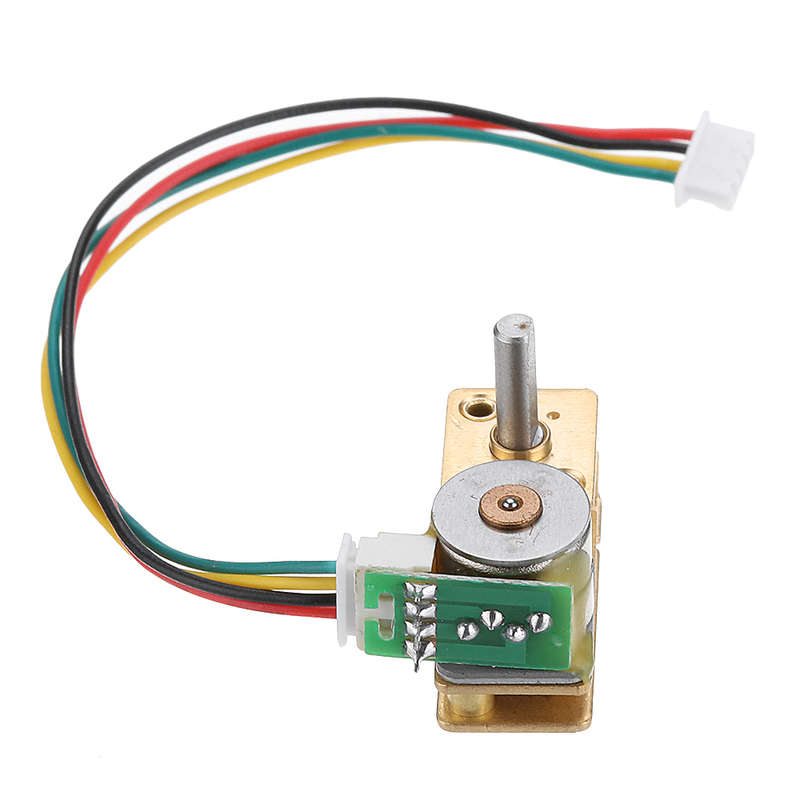

GM1024BY10 DC 5V 5/15/30RPM Micro Stepping Geared Motor 2-Phase 4-Wire All Metal Gearbox.

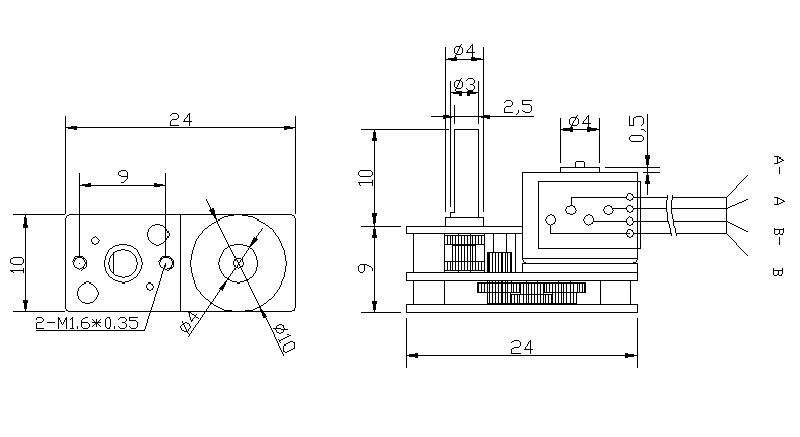

Specifications:
Model GM1024BY10
Voltage DC 5V
Output Shaft Diameter 3mm (D-type: 2.5mm)
Output Shaft Length About 10mm
Gearbox Length See the table
Wiring (Phase) Yellow: A
Green: A-
Red: B
Black: B-

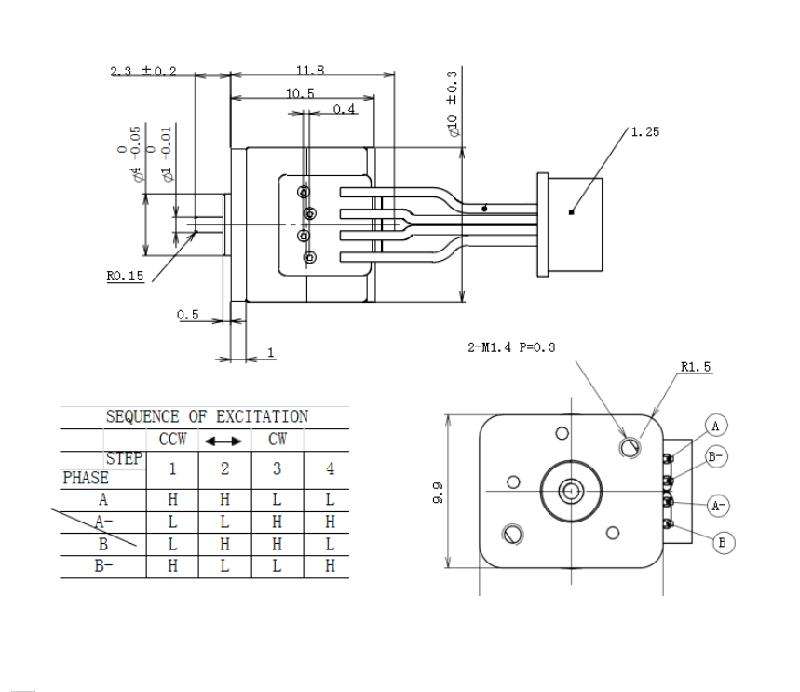

BY10 Motor without Gearbox Electrical Characteristic
Rated Voltage DC5V
Coil Resistange 20±10%
Number of Phase 2 Phase
Step Angle 18ᆪ/step
Excitation Method 2-2 Phase Exciting
Drive Mode Bi-Polar Drive
Current Per Phase 200mA/Phase Max
Pull Torque 3.5gf*cm Min(500PPS, 5V DC)
Pull Out Torque 4.0gf*cm Min(500PPS, 5V DC)
Max. Starting Frequency 1000PPS Min
Max. Respone Frequency 1200PPS Min
Insulation Class E Class
Insulation Strength 300V AC, IS
Insulation Resistance 50M(DC100V)
Operation Temp. Range -10~60a

Main Parameter:
Voltage Gear Ratio No load Load torque Stall
speed current speed current torque current torque
5V 1 : 300 5RPM a300mA 5RPM a350mA 650g.cm a400mA 1.6g.cm
1 : 100 15RPM a300mA 13RPM a350mA 200g.cm a400mA 0.5g.cm
1 : 50 30RPM a300mA 27RPM a350mA 100g.cm a400mA 0.4g.cm

Package Included:
1 x GM1024BY10 Gear Motor
