Machifit GM1024BY10 DC 5V 5/15/30RPM Micro Gear Motor 2-Phase 4-Wire Steppin... (ROTATE SPEED: 5RPM)

New

20 available

R590.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4038

92.40 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654102916

SELECTED OPTION:
ROTATE SPEED: 5RPM

Descriptions:

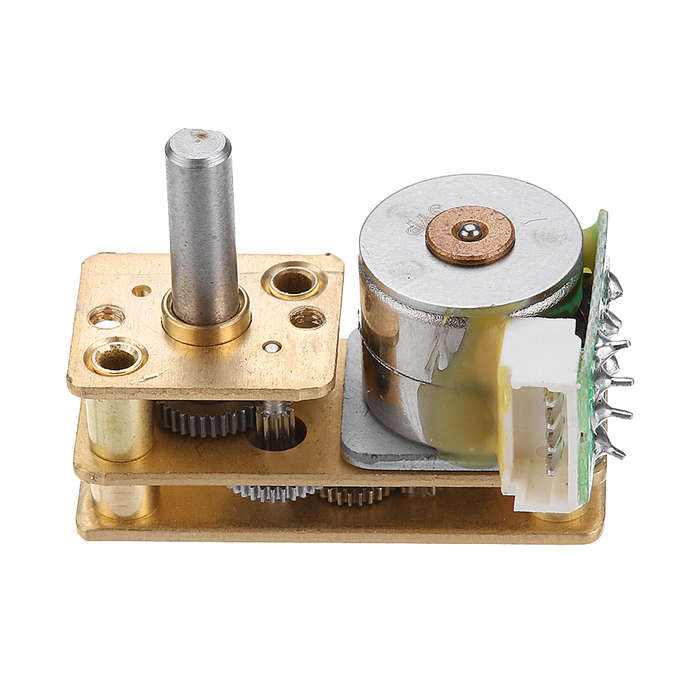

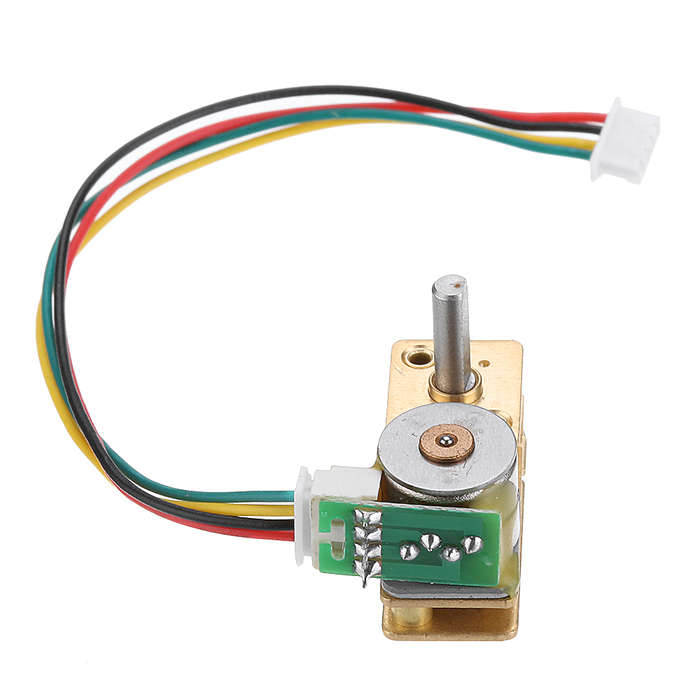

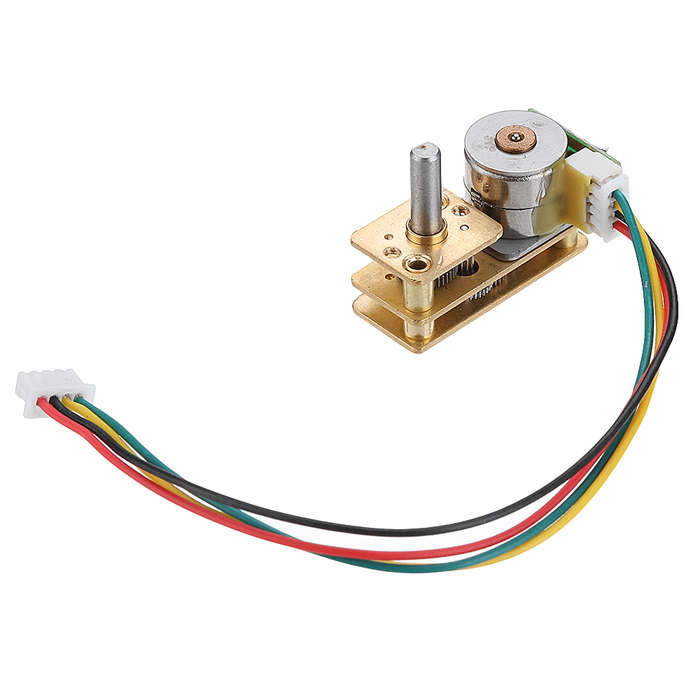

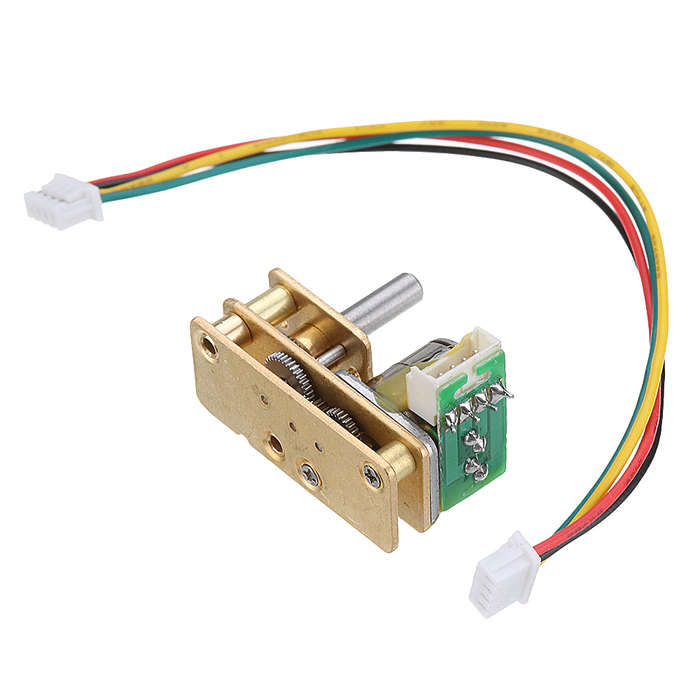

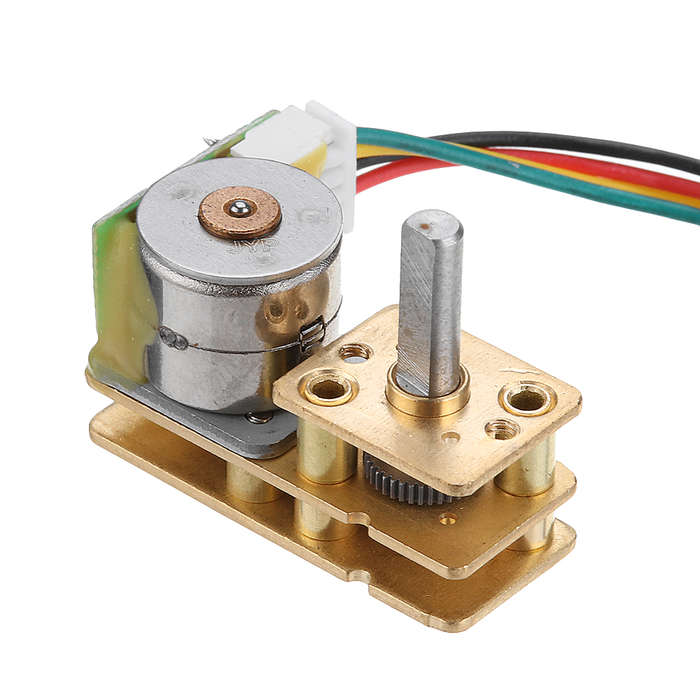

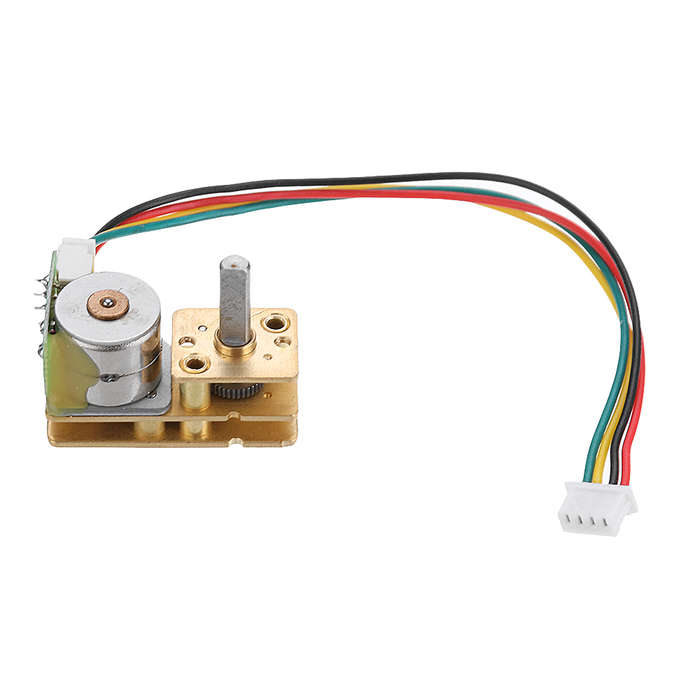

GM1024BY10 DC 5V 5/15/30RPM Micro Stepping Geared Motor 2-Phase 4-Wire All Metal Gearbox.

Specifications:

Model	GM1024BY10
Voltage	DC 5V
Output Shaft Diameter	3mm (D-type: 2.5mm)
Output Shaft Length	About 10mm

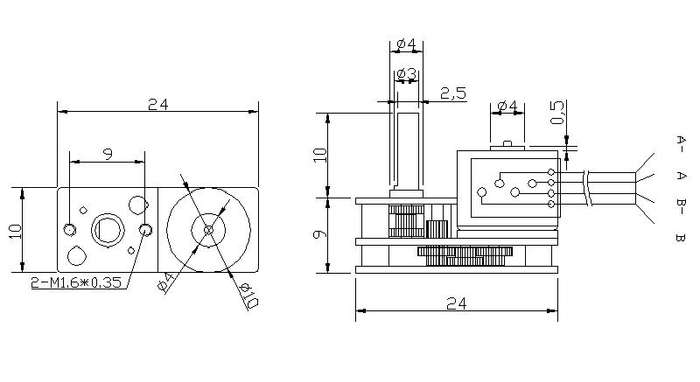

Gearbox Length	See the table
Wiring (Phase)	Yellow: A Green: A- Red: B Black: B-

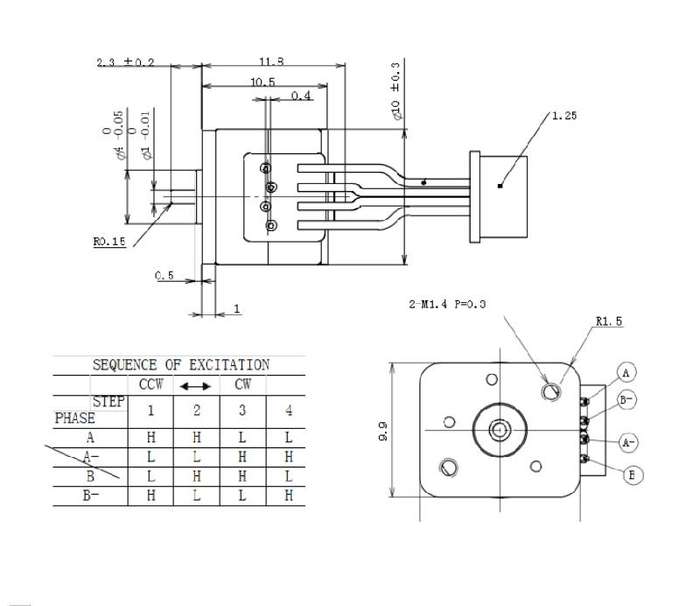

BY10 Motor without Gearbox Electrical Characteristic

Rated Voltage	DC5V
Coil Resistange	20&pm;10%
Number of Phase	2 Phase
Step Angle	18ﾣ/step
Excitation Method	2-2 Phase Exciting
Drive Mode	Bi-Polar Drive
Current Per Phase	200mA/Phase Max
Pull Torque	3.5gf*cm Min(500PPS, 5V DC)
Pull Out Torque	4.0gf*cm Min(500PPS, 5V DC)
Max. Starting Frequency	1000PPS Min
Max. Respone Frequency	1200PPS Min
Insulation Class	E Class
Insulation Strength	300V AC, IS
Insulation Resistance	50M(DC100V)
Operation Temp. Range	-10~60a

Main Parameter:

Voltage	Gear Ratio	No load		Load torque			Stall
Voltage	Gear Ratio	speed	current	speed	current	torque	current	torque
5V	1 : 300	5RPM	a300mA	5RPM	a350mA	650g.cm	a400mA	1.6g.cm
	1 : 100	15RPM	a300mA	13RPM	a350mA	200g.cm	a400mA	0.5g.cm
	1 : 50	30RPM	a300mA	27RPM	a350mA	100g.cm	a400mA	0.4g.cm
