Description:

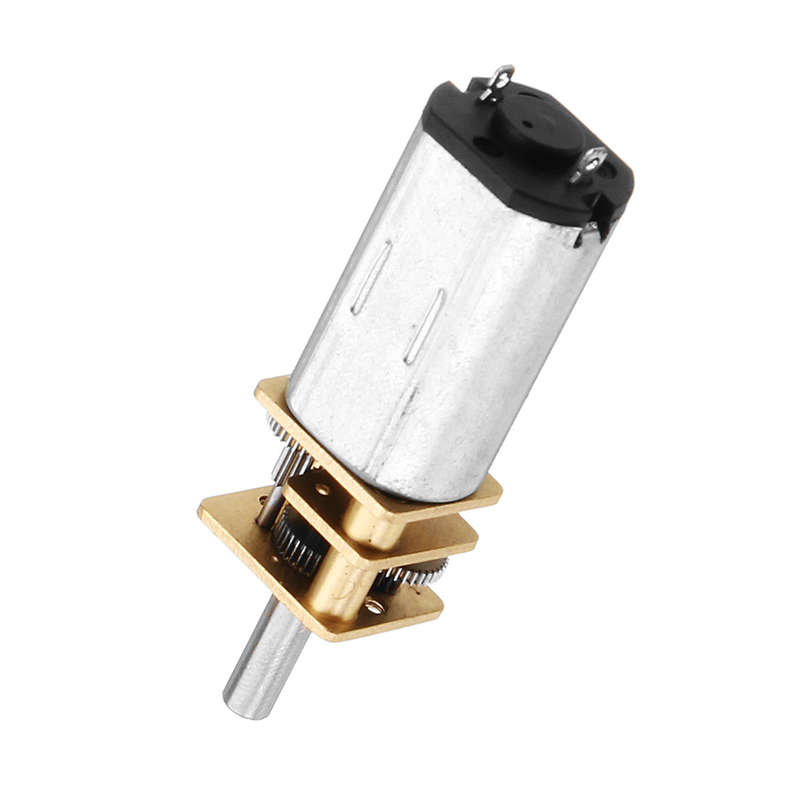

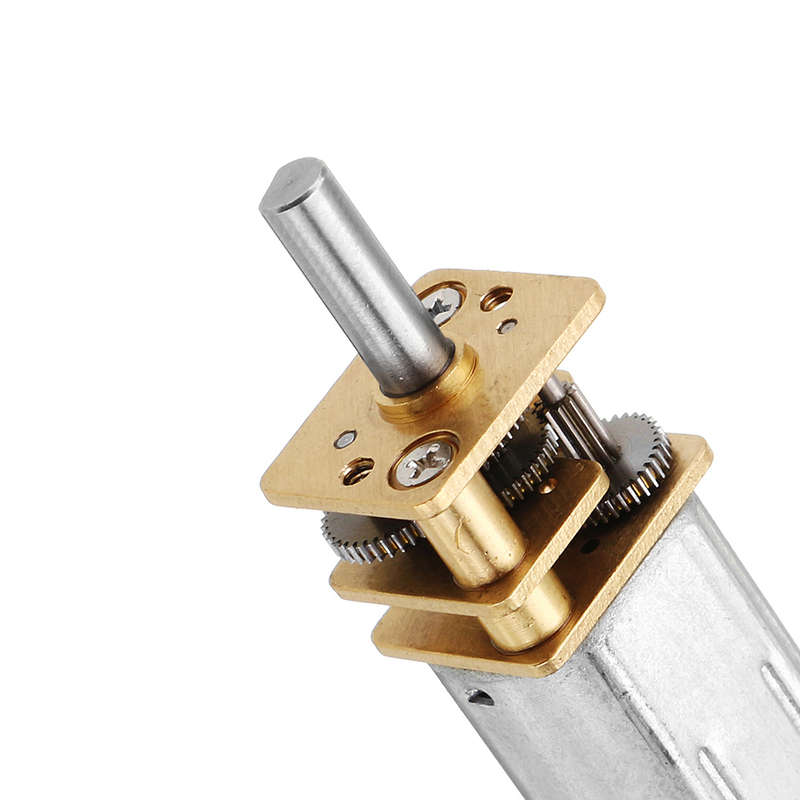

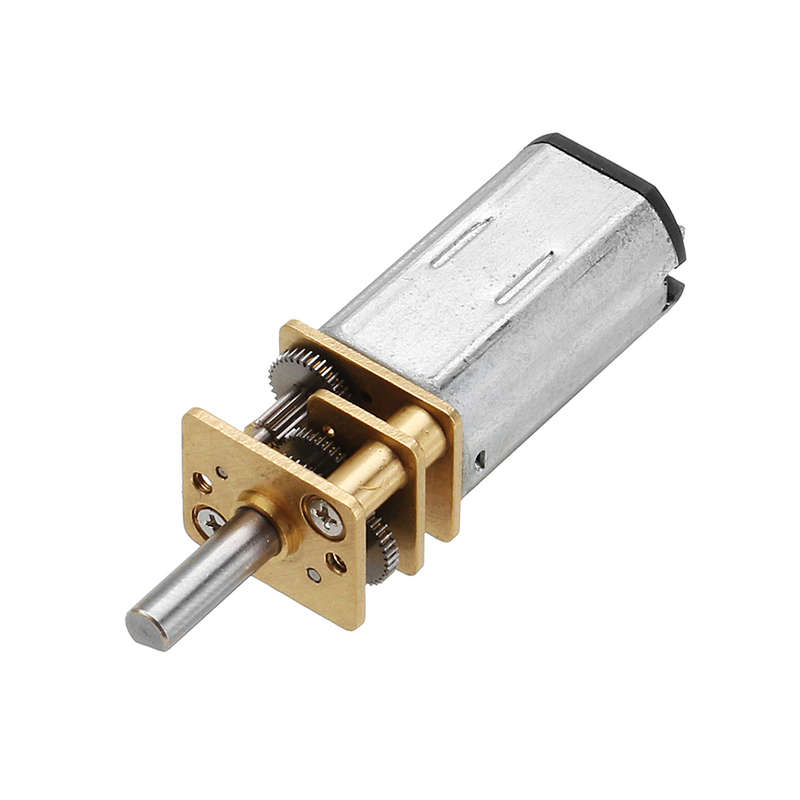

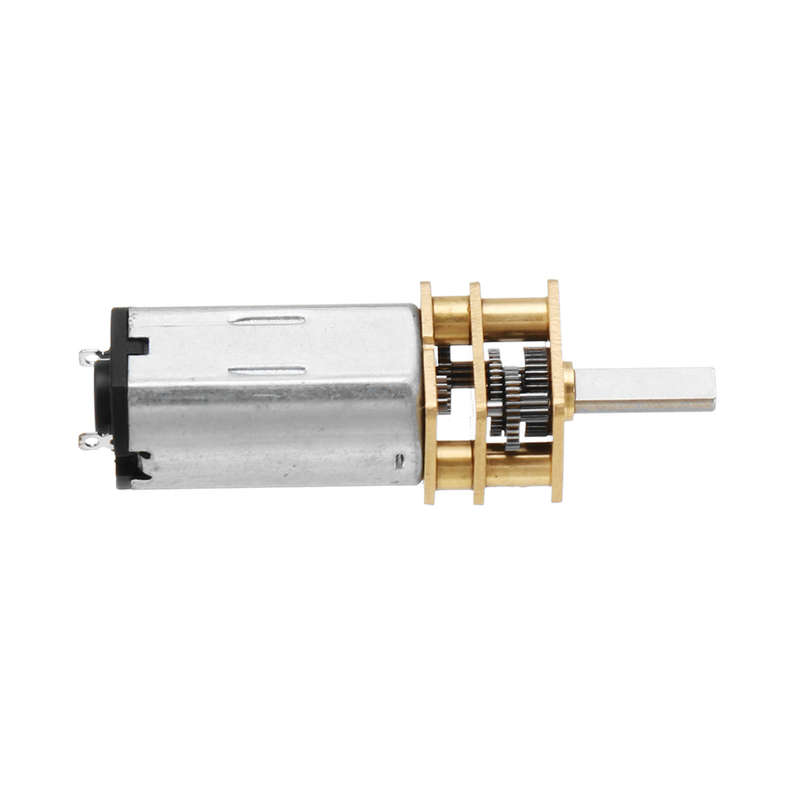

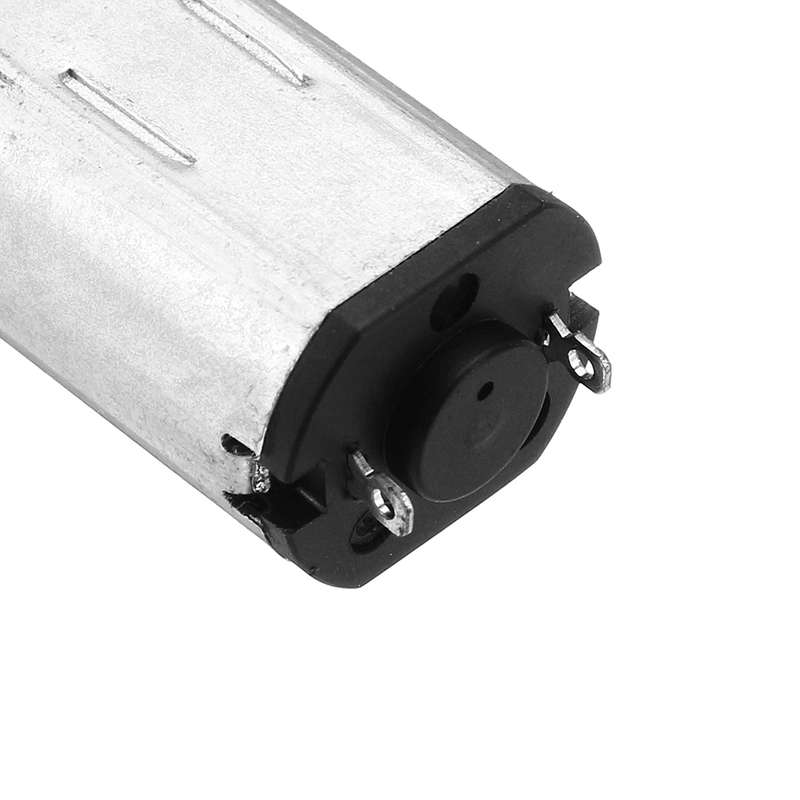

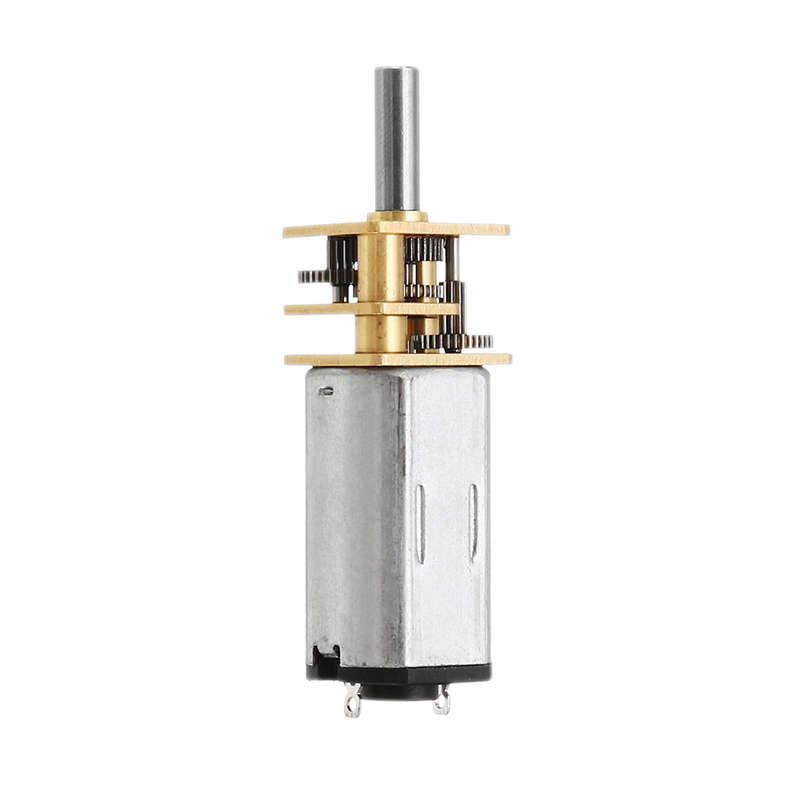

MACHIFIT GM12-N30VA DC 6V 12V Gear Motor Miniature Large Torque Permanent Magnet Gear Motor
Specifications:
Product Name | Permanent Magnet Gear Motor |
Model | GM12-N30VA |
Voltage | DC 12V |
Axle Diameter | 3mm D axis |
Quantity | 1pcs |
Voltage (V) | Gear Ratio | No-Load Speed (rpm) | No-Load Current (MA) | Load Torque Speed (rpm) | Load Torqued Current (MA) | Load Torqued Torque (g.cm) | Stall Current (A) | Stall Torque(Kg.cm) |
6V | 1:298 | 30 | a40 | 28 | a60 | 540 | a1.1 | 3.80 |
6V | 1:298 | 60 | a70 | 48 | a100 | 440 | a1.1 | 4.20 |
6V | 1:100 | 100 | a50 | 83 | a100 | 320 | a1.1 | 3.50 |
6V | 1:50 | 300 | a150 | 240 | a200 | 140 | a1.1 | 4.00 |
6V | 1:30 | 500 | a50 | 450 | a100 | 65 | a1.1 | 2.25 |
12V | 1:298 | 60 | a80 | 55 | a90 | 720 | a1.1 | 5.60 |
12V | 1:298 | 120 | a100 | 100 | a90 | 880 | a1.1 | 5.80 |
12V | 1:100 | 200 | a150 | 180 | a100 | 550 | a1.1 | 5.50 |
Features:
- Large torque and stable.
- Durble and long service life.
- Low noise, low power consumption, small size.
- Suitable for equipment, robot, camera, hosehold machine, etc.
Package Included:
1 x | Gear Motor |
