Machifit GM12YN20-298 DC12V 67RPM Cutting Gear Metal Gearbox Micro Gear Motor for 3D Drawing Pen

20 available / new

R443.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3566

93.31 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643383825

Description:

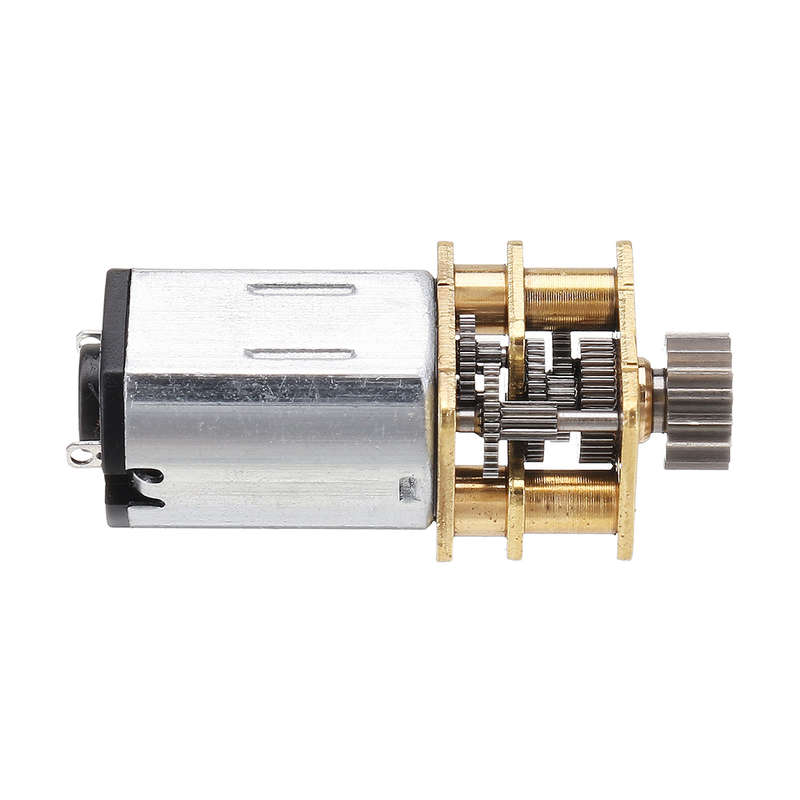

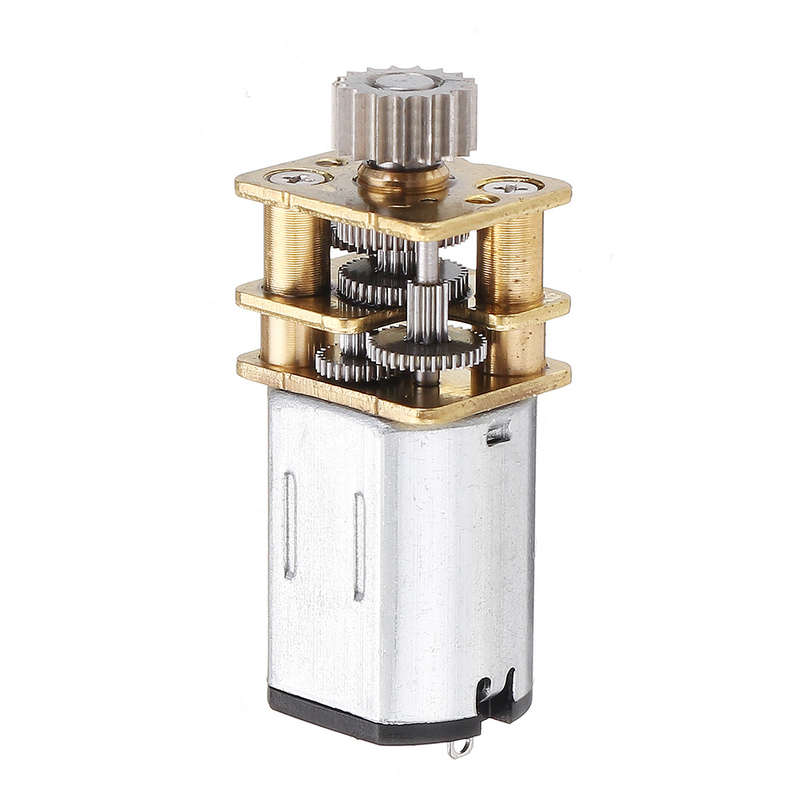

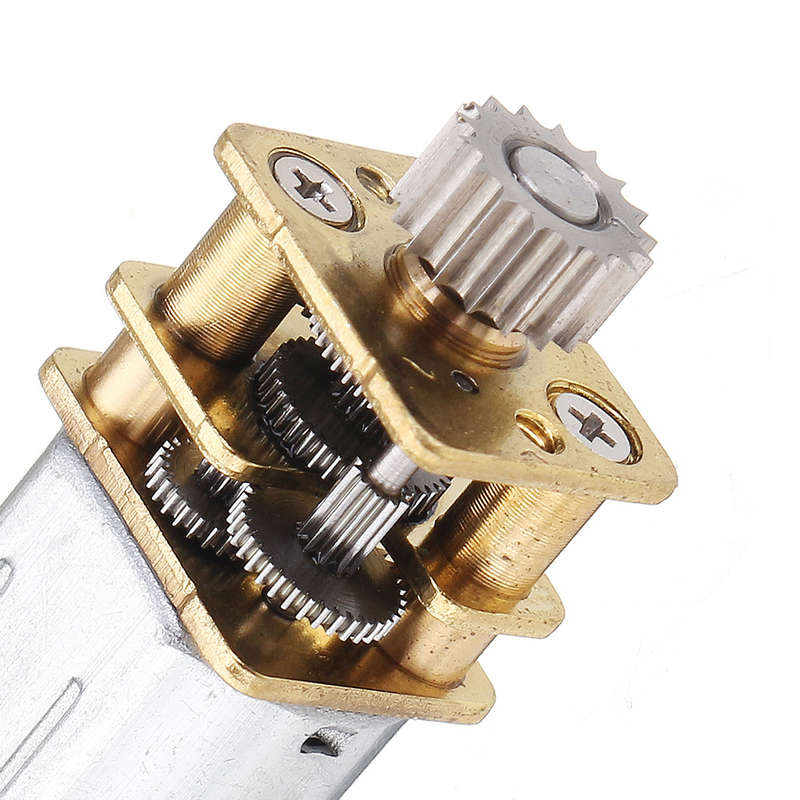

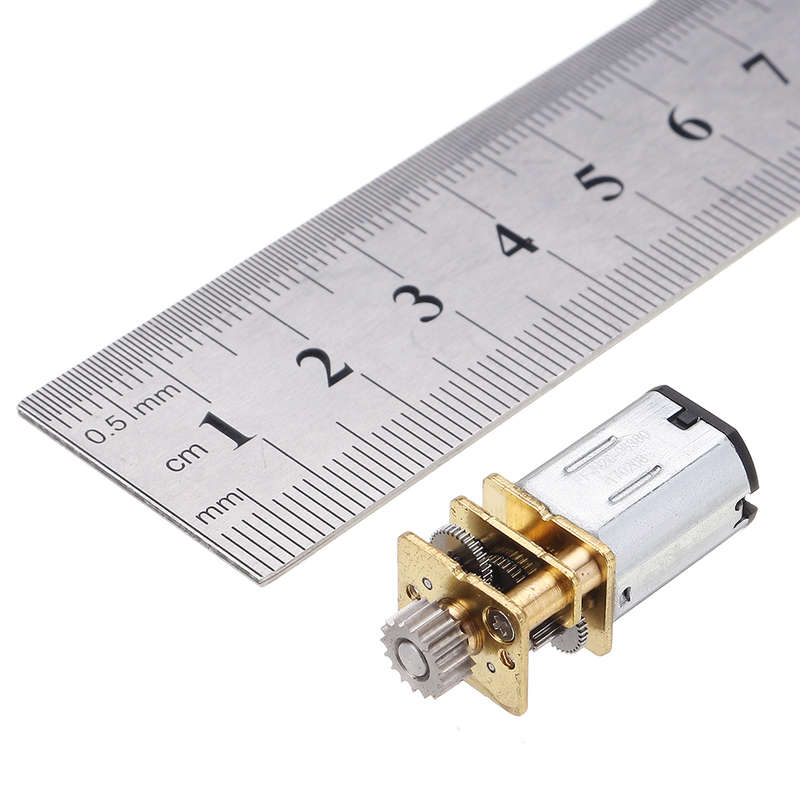

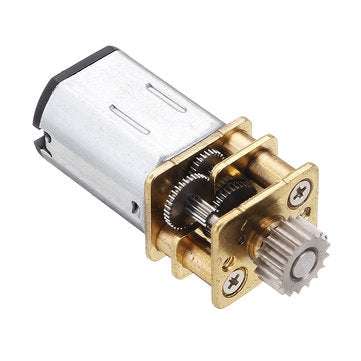

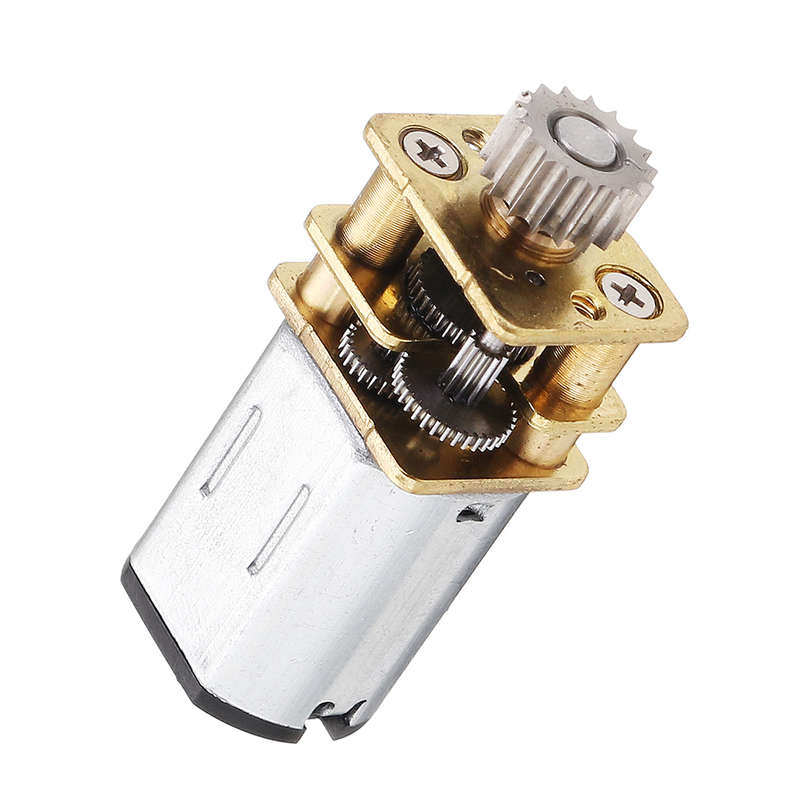

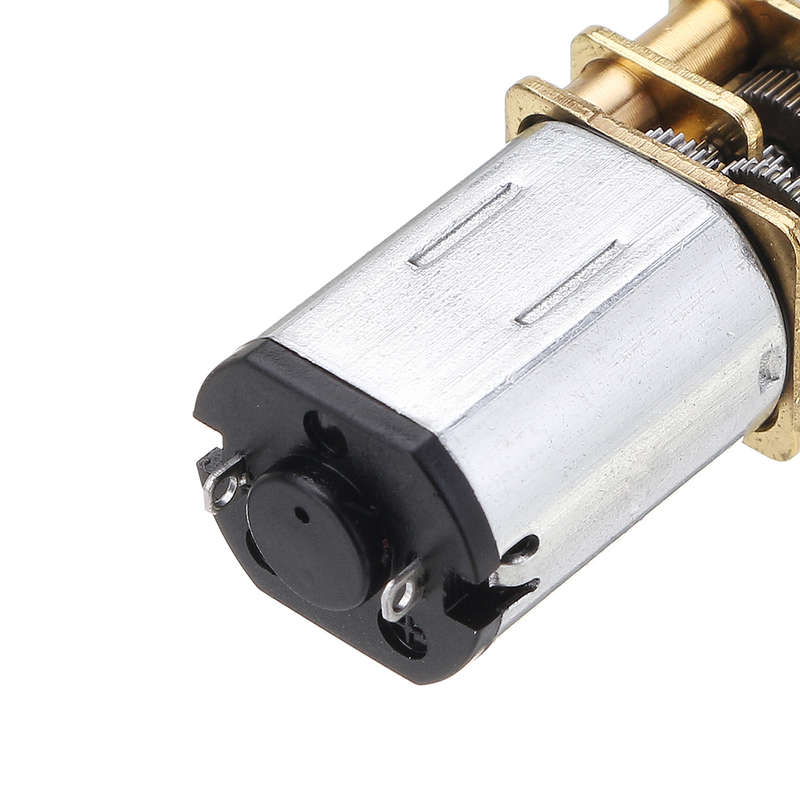

Machifit GM12YN20-298 DC12V 67RPM Cutting gear, metal gearbox, micro gear motor with line cutting teeth is for 3D drawing pen,3D graffiti.

Specification:

Gear ratio	1:298
Voltage	12v
No load speed	60&pm;10%rpm
No load current	a50mA
Direction	CCW
Loadtorque	100g.cm
Load current	70-100mAmax
Load speed	55&pm;10% r/min
Stall current	330 mA max
Stall torque	2400 g.cm
Axial clearance	0.05-0.03.mm
Shaft length	10&pm;0.2mm
Shaft diamete	3&pm;0.1mm
Flat bit size	2.5&pm;0.1mm
Weight	30g

Features:

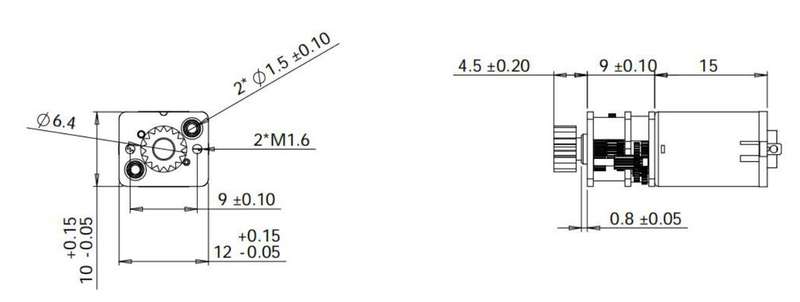

Technical requirements :
1. Gear box reduction ratio: 298:1.
2. Roughness without note is as Ra 1.6.
3. The gear box is flat and non-bending.
4. The gear box turns flexibly.
5. The output shaft axial clearance is 0.05-0.3mm.
6. All parts meet RoHs requirements.
7. The tolerance of unfilled form position is gb1184-80.
8. The tolerance difference is not indicated according to GB1184-F.

Package Included:
1 x Gear Motor

More Details:
