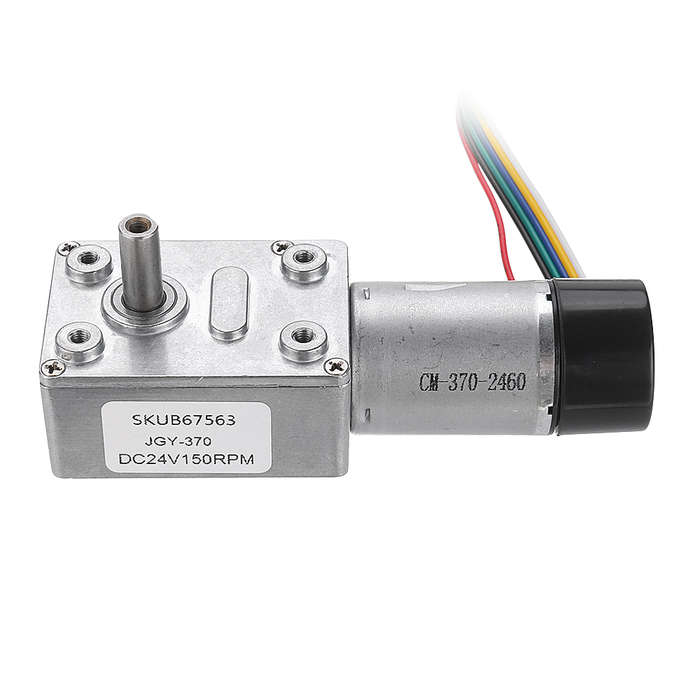

Name: Machifit JGY-370 DC 24V Motor Reduction Gear Turbine Worm Self-locking Encoder Signal Feedback Motor
SKU: POA6019656
Price: 332.19 ZAR
Availability: SoldOut

Machifit JGY-370 DC 24V Motor Reduction Gear Turbine Worm Self-locking Encoder Signal Feedback Motor

New

100 were available

R332.19

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 10 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

ReliableStore(Blacklisted)

86.29 % Positive ratings

Buyer protection

How you're covered

Returns

Warranty Type: Replacement 90 days

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Product code

POA6019656

Bob Shop ID

608545535

Descriptions:

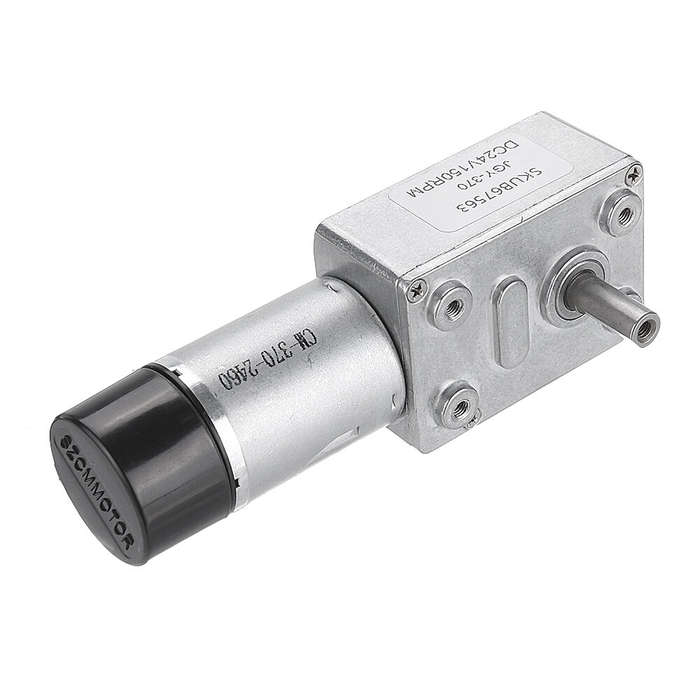

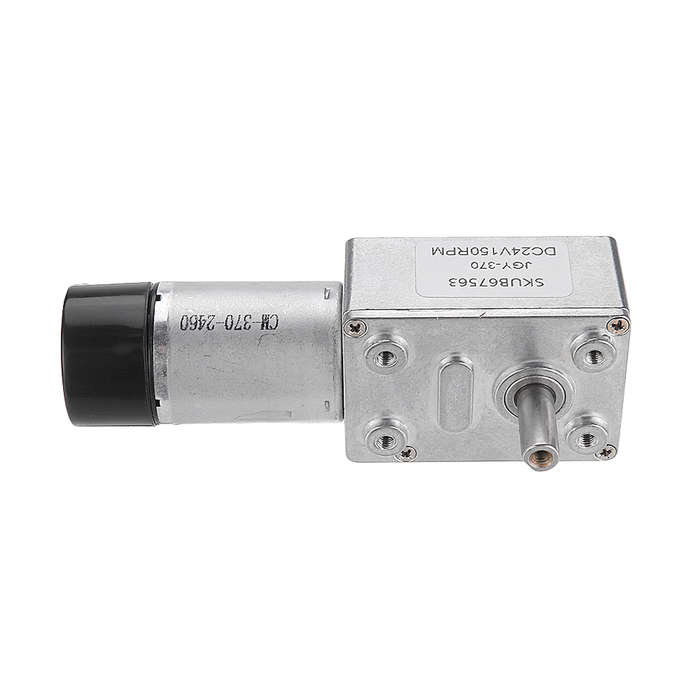

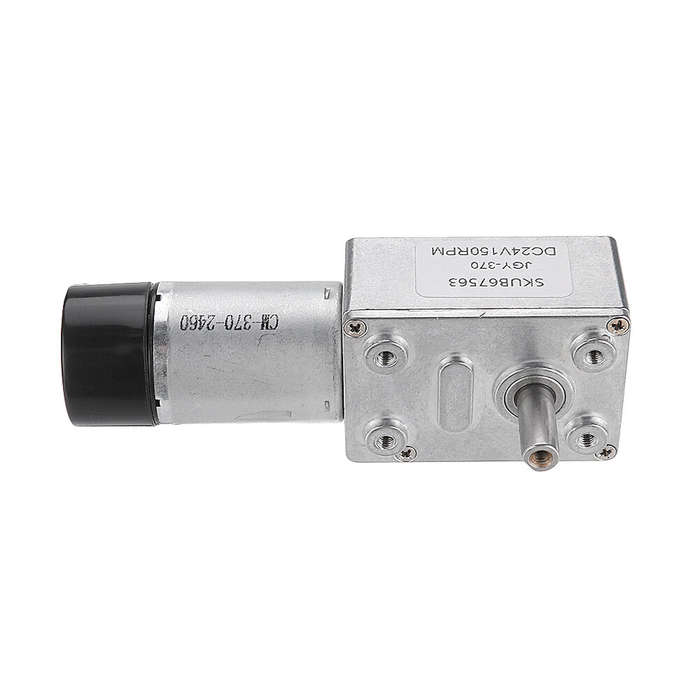

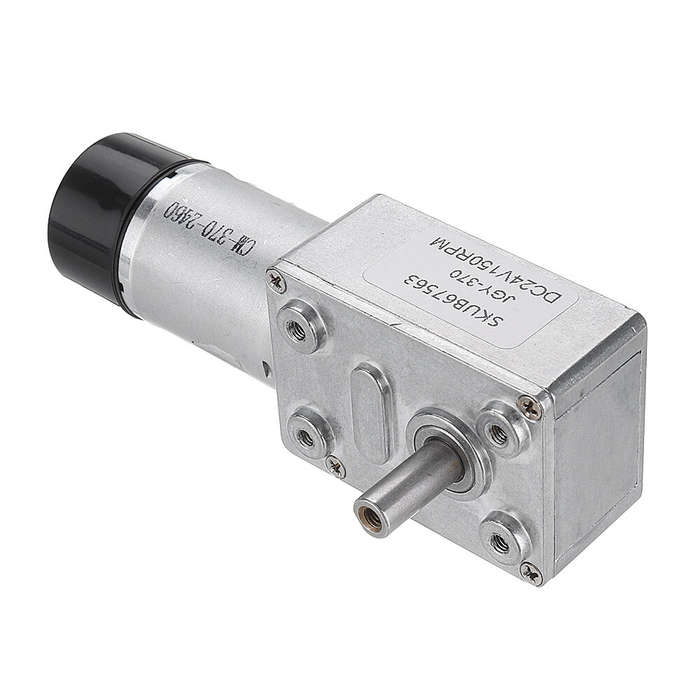

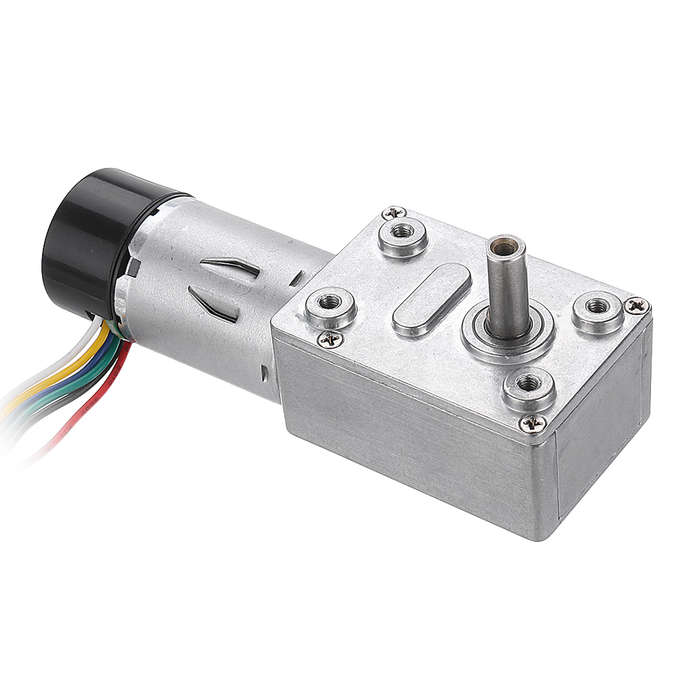

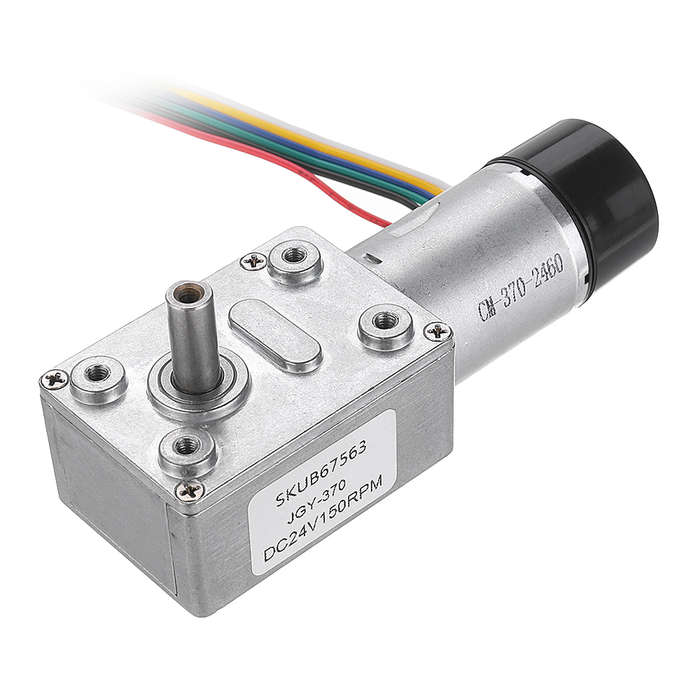

Machifit JGY-370 24V Reduction Gear Turbine Worm Self-locking Low Speed Motor Encoder Signal Feedback

Specifications:

Brand: Machifit
Type: Reduction Motor

Material: Metal

Voltage: DC 24V

Weight: 167g

Power: 3W

Rated Voltage: 3 - 24V

Speed Regulation: Yes

Rotation In Both Directions: Yes

Size:

Outer Dia.: 6mm

Motor: 46 x 32mm(without shaft)
Line Length: 230mm

Reduction Ratio	600	200	65	40
No-load Current (MA)	40
No-load Speed (rpm)	10	30	90	150
Rated Torque (Kg.cm)	15.9	5.3	0.5	0.2
Rated Speed (rpm)	7.5	22	70	120
Rated Current (A)	0.3
Maximum Torque (Kg.cm)	30	10	1.6	0.9
Stop Current (A)	0.85

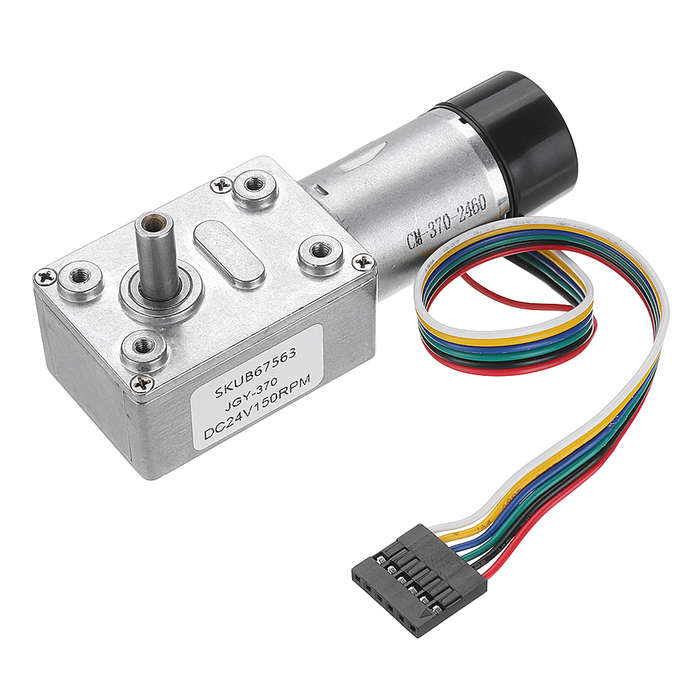

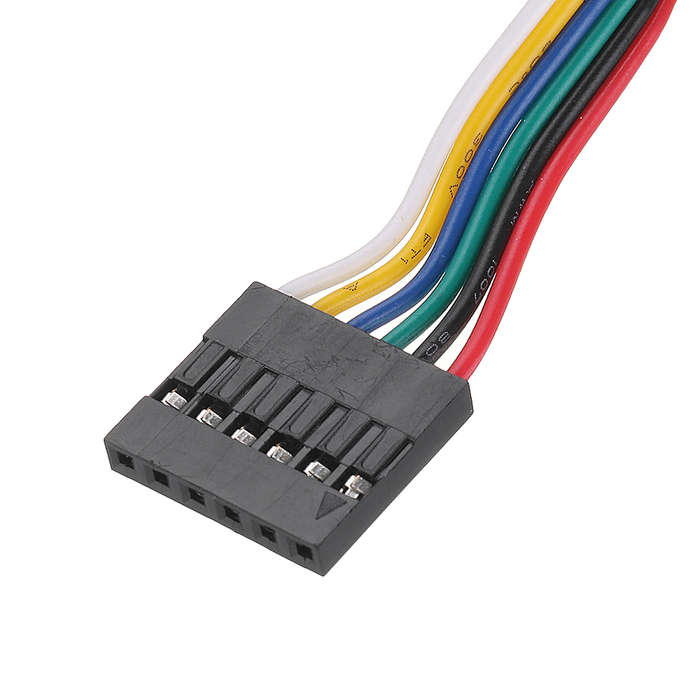

Wiring:

Red: red motor + positive

Black: black motor - negative

Green: Green sensor ground wire - (5-12V)

Blue: blue sensor power + (5-12V)

Yellow: Signal A output point (11 pulses)

White: Signal B output point (11 pulses)

Features:

- D-axis Display

More fixed, superior thermal conductivity, high hardness and anti-friction;

- Internal Gearbox

All metal materials are used for more wear resistance, long service life, no rust, high-end atmosphere;

- Covered Encoder

The copper wire has super-conductivity, so that the motor power output is smoothly, and the three-layer high-density molecular paint effectively isolates dust, is not easy to damage, and has 10 times longer life than ordinary coating;

- High quality motor with a service life of up to 1000 hours;

- Suitable for massage chairs, electronic locks, smart devices, fishing equipment, etc.

Package Included:

1 Pc x 24V Reduction Gear Motor
