Machifit JGY-370 DC 6V Double Shaft Motor Reduction Gear Turbine Worm Self-... (ROTATE SPEED: 10RPM)

20 available / new

R634.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3467

93.38 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641128559

SELECTED OPTION:
ROTATE SPEED: 10RPM

Descriptions:

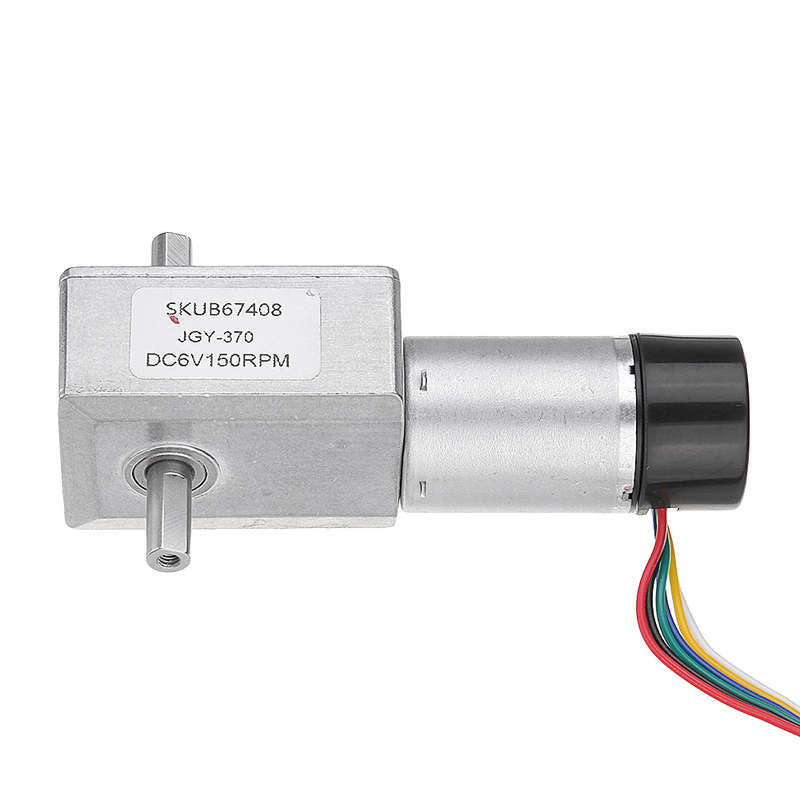

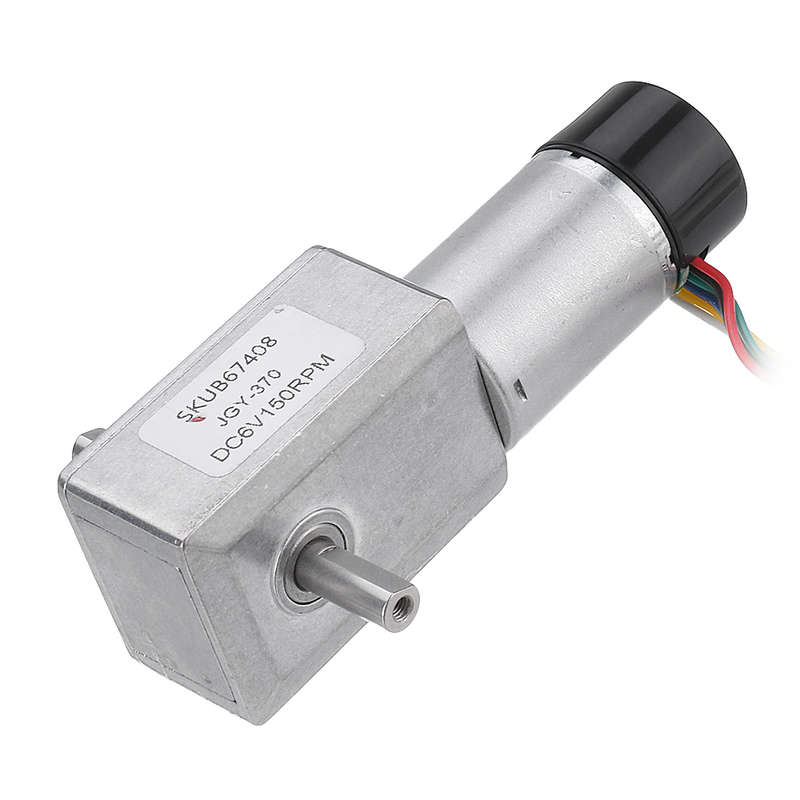

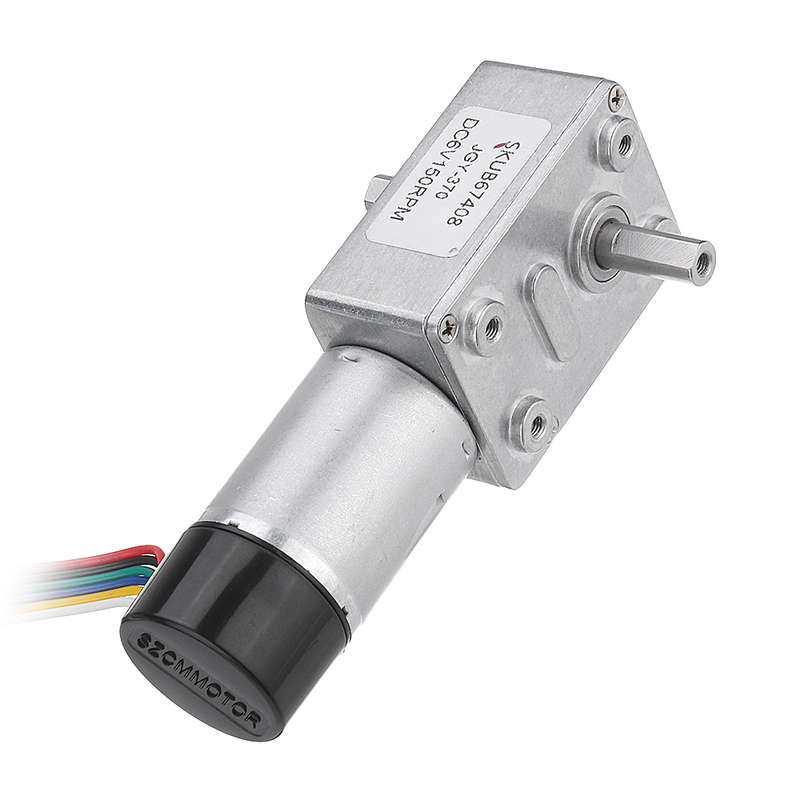

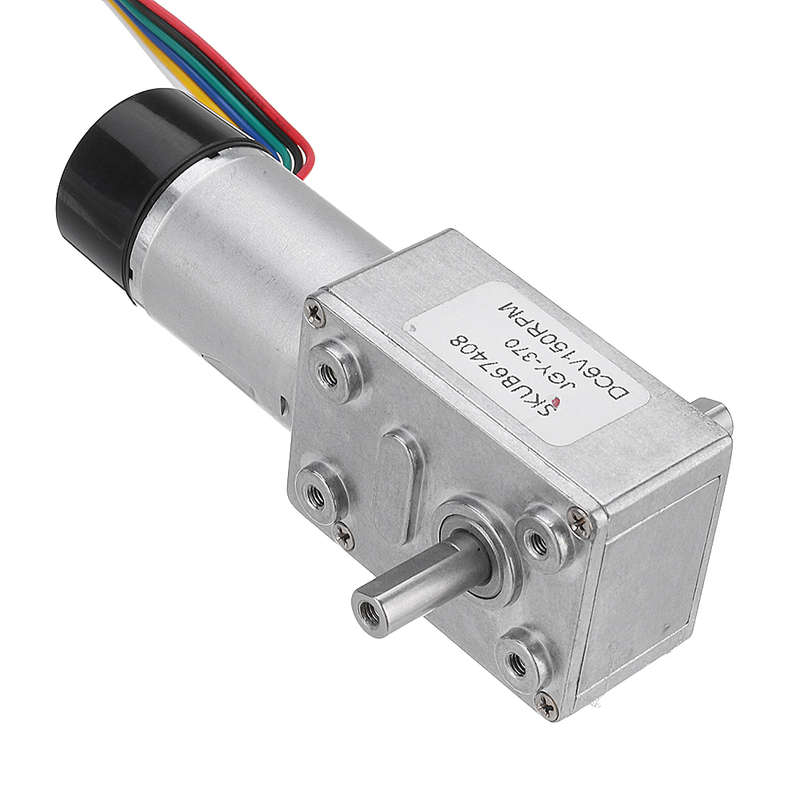

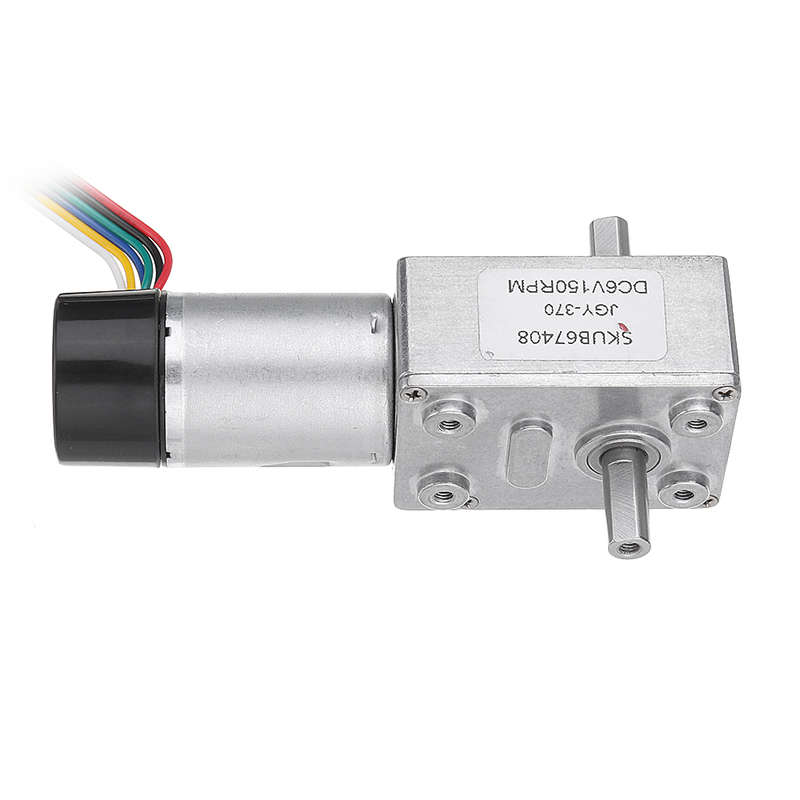

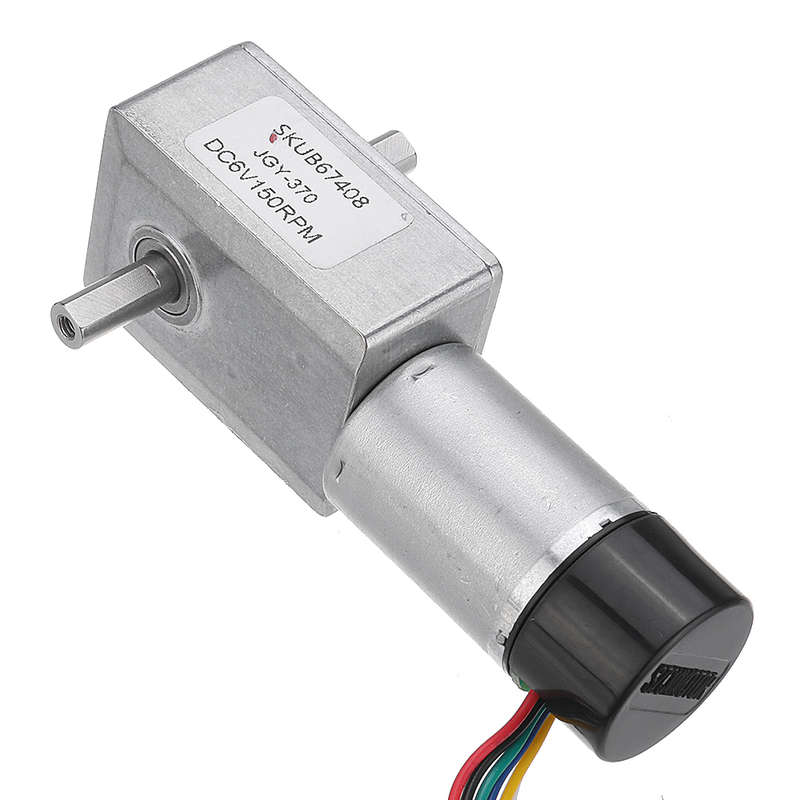

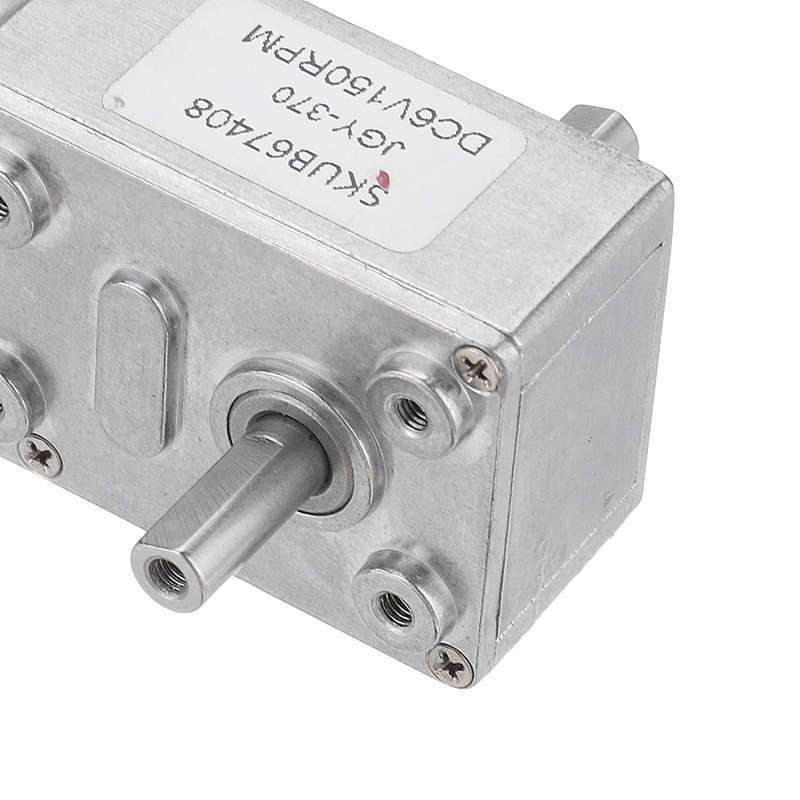

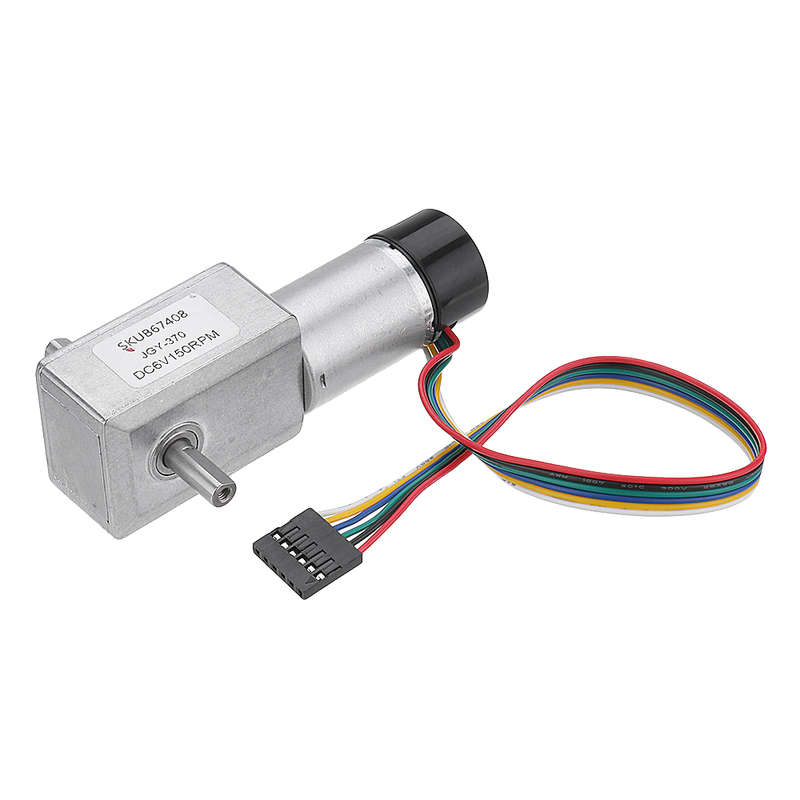

Machifit JGY-370 6V Double Shaft Reduction Gear Turbine Worm Self-locking Low Speed Motor Encoder Signal Feedback

Specifications: Brand: Machifit
Type: Reduction Motor Material: Metal Voltage: DC 6V Weight: 172g Power: 3W Speed Regulation: Yes Rotation In Both Directions: Yes Size: Shaft Outer Dia.: 6mm Motor: 46 x 32mm(without shaft)
Line Length: 230mm

Reduction Ratio	600	200	65	40
No-load Current (MA)	a100
No-load Speed (rpm)	10	30	90	150
Rated Torque (Kg.cm)	15.9	5.3	0.5	0.2
Rated Speed (rpm)	7.5	22	70	120
Rated Current (A)	a0.6
Maximum Torque (Kg.cm)	30	10	1.6	0.9
Stop Current (A)	3.3

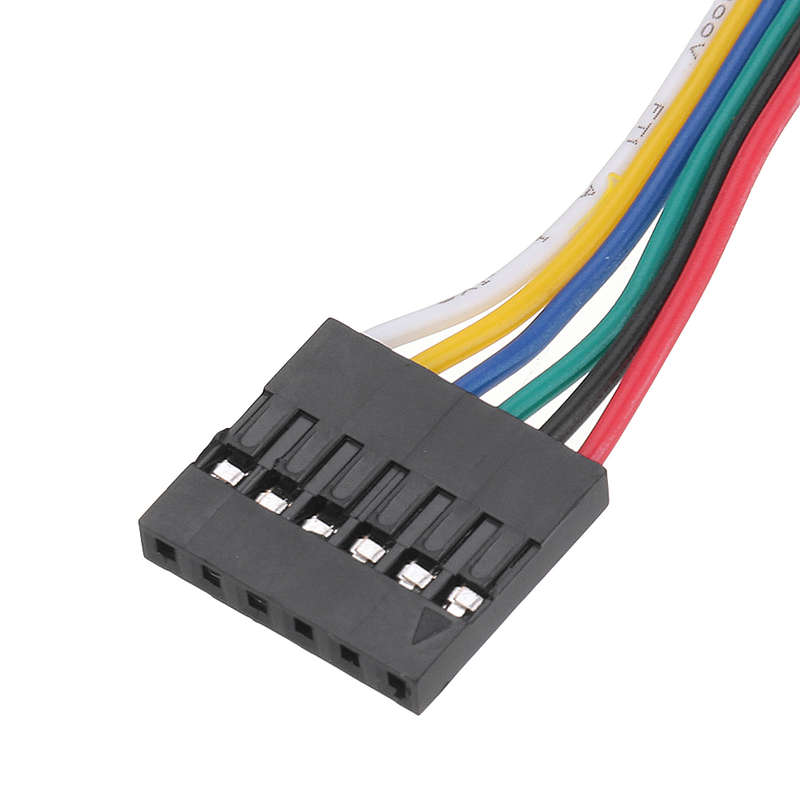

Wiring: Red: red motor + positive Black: black motor - negative Green: Green sensor ground wire - (5-12V) Blue: blue sensor power + (5-12V) Yellow: Signal A output point (11 pulses) White: Signal B output point (11 pulses)

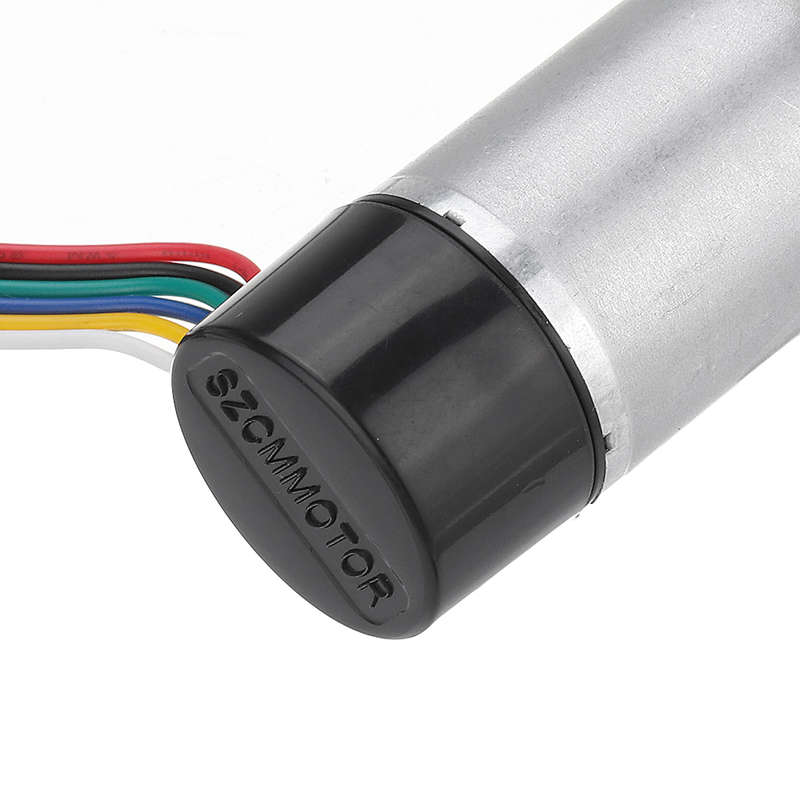

Features: - D-type Double Shaft More fixed, superior thermal conductivity, high hardness and anti-friction; - Internal Gearbox All metal materials are used for more wear resistance, long service life, no rust, high-end atmosphere; - Double Shaft Covered Encoder The copper wire has super-conductivity, so that the motor power output is smoothly, and the three-layer high-density molecular paint effectively isolates dust, is not easy to damage, and has 10 times longer life than ordinary coating; - High quality motor with a service life of up to 1000 hours; - Suitable for massage chairs, electronic locks, smart devices, fishing equipment, etc. Package Included: 1 Pc x 6V Double Shaft Reduction Gear Motor
More Details:
