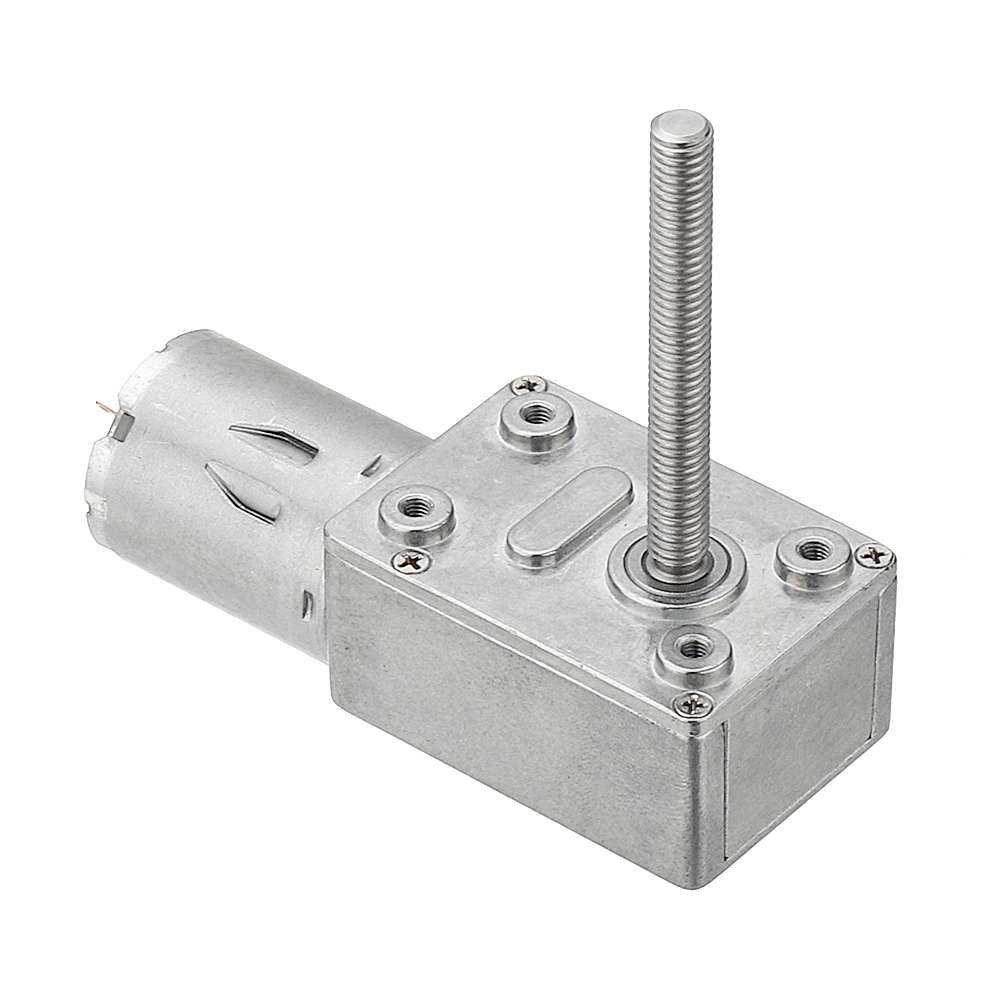

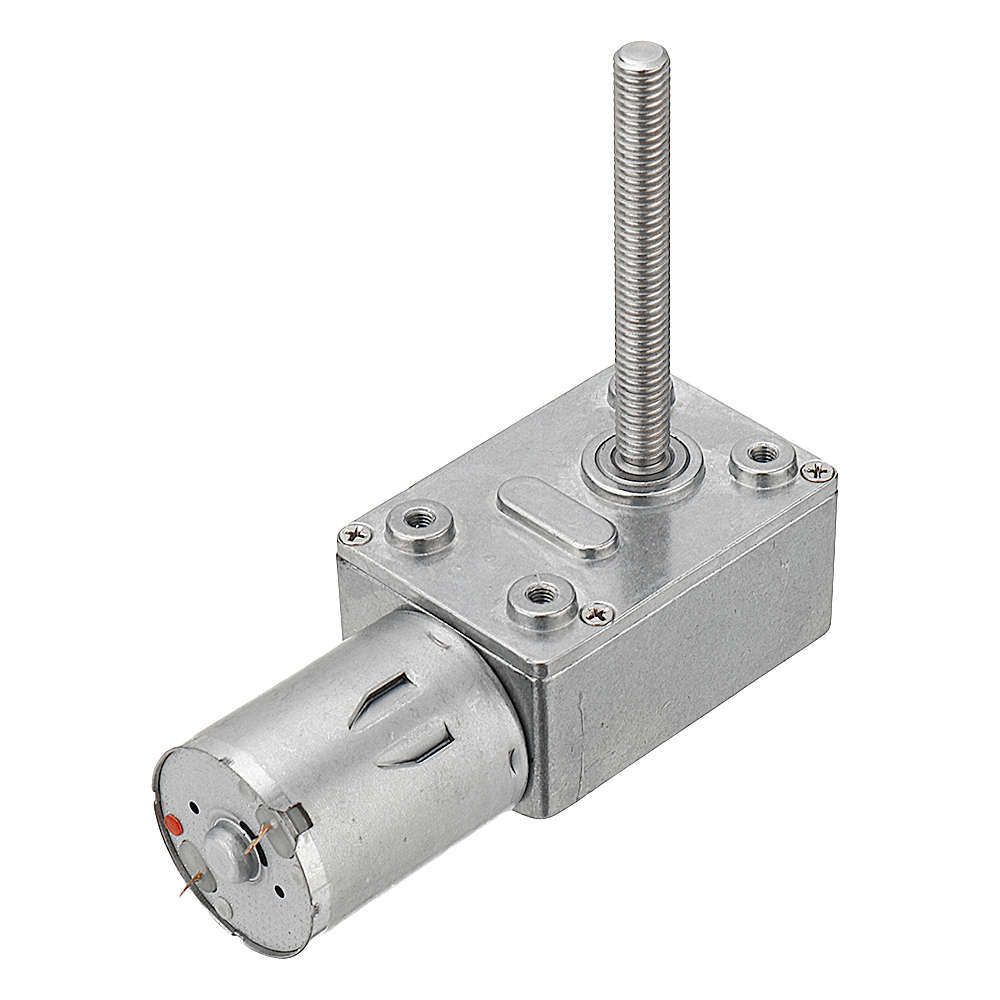

Name: Machifit JGY370 50mm-M6 Screw Worm Gear Motor DC 12V 18/23RPM
SKU: 1690341 Machifit JGY370 50mm-M6 Screw Worm Gear Motor DC 12V 18/23RPM
Price: 249.00 ZAR
Availability: SoldOut

Machifit JGY370 50mm-M6 Screw Worm Gear Motor DC 12V 18/23RPM

New

5 were available

Indicative market price: R375.00

R249.00

34% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

WorldWide Traders1484

95.02 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: Only if item is faulty.

Get it now, pay later

Condition

New

Location

International

Product code

1690341 Machifit JGY370 50mm-M6 Screw Worm Gear Motor DC 12V 18/23RPM

Bob Shop ID

476941376

International Courier Shipping: 8-15 Business Days.

Please add a note to the order at the checkout with your chosen option between the following:

Rotate Speed 18RPM / Rotate Speed 23RPM

Descriptions:

Machifit JGY370 50mm-M6 Screw Worm Gear Motor DC 12V 18/23RPM Self-locking Reduction Gear Motor

Specifications:

Brand	Machifit
Material	Metal
Voltage	DC 12V
Rotate Speed (No-load Speed)	18rpm, 23rpm

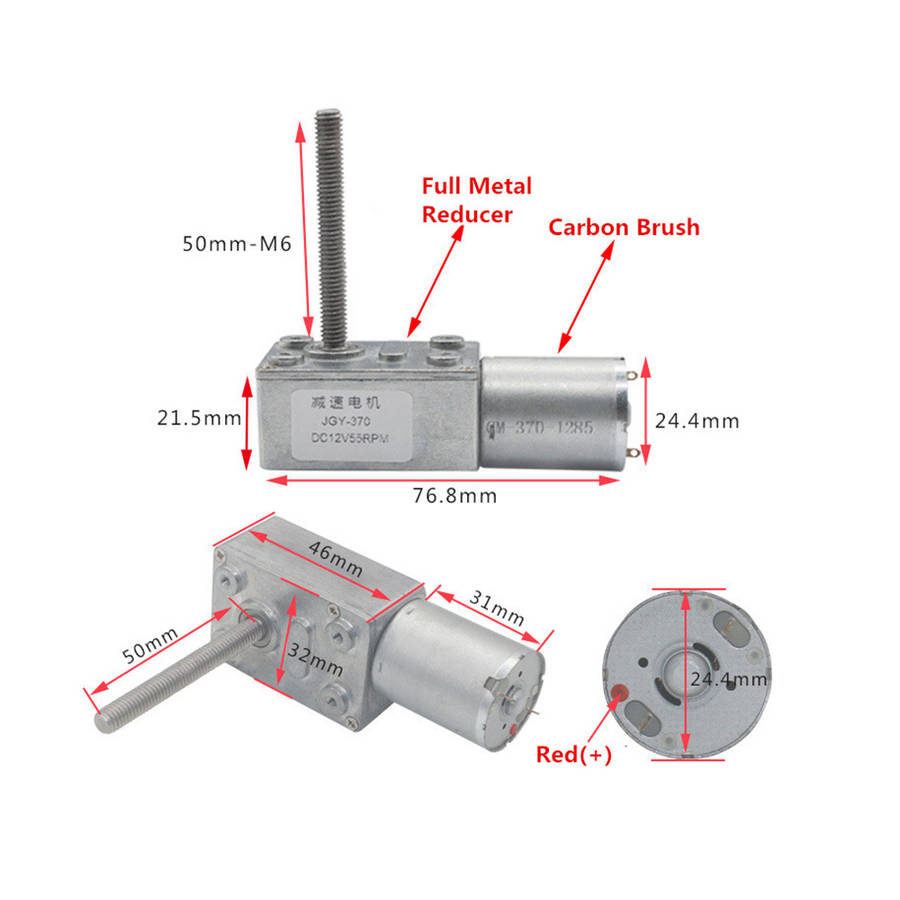

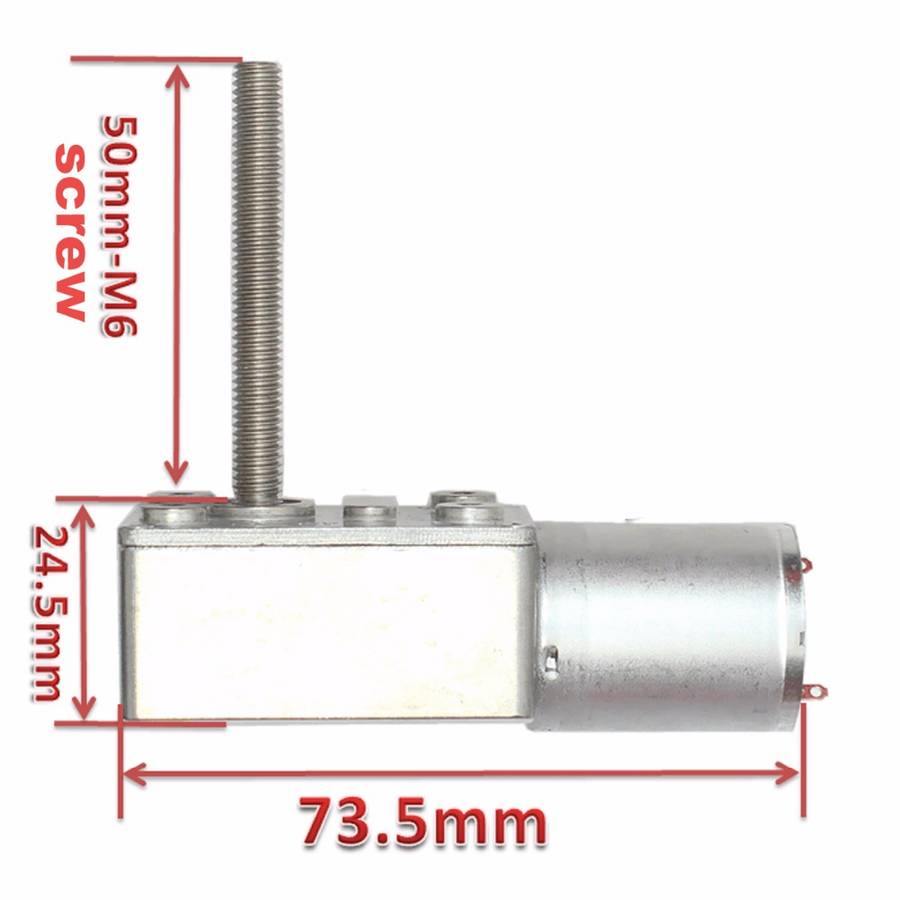

Size:	Outer Dia.: 31.5mm Axial Length: 33mm Screw Shaft: 50mm-M6
Suitable For	Window, a door opener, miniature winch
Quantity	1 Pc

Input Voltage(V)	12	12
Retarder Reduction Ratio	1:340	1:260
No Load Current (mA)	￢ﾉﾤ60	￢ﾉﾤ60
No Load Speed(RPM)	18	23
Rated Torque(Kg.cm)	9.0	6.7
Rated Speed(RPM)	15	18
Rated Current(A)	￢ﾉﾤ0.6	￢ﾉﾤ0.6
Max Torque(Kg.cm)	18	13
Stalling Current(A)	1.7	1.7

Features:

- Worm gear motor with self-locking, ie in the absence of electricity in the motor, the output shaft is not to move, that is self-locking.

- Gear output shaft direction of the motor shaft is arranged vertically, the entire body of the motor output shaft relative to the g`eneral direction of gear motor short, widely adapted to a number of installation dimensions of this aspect of the requirements of the occasion.

Note:

- When you use a motor, can not have bound items, such as adhesives do not flow into the rotary shaft through bearings, and obstruction of the operation of the motor.

- The rod of rotation of the motor's life may have the opposite effect, in order to prolong life, please check whether your load goods according to regulations, can not overload or prejudice the rotation shaft hanging items.

- Manufactured heavy eccentric load of radiation, harmful life of the motor.

- Do not store than four weeks high or extreme humidity, but also do not place in the etching gas, the motor will reduce the effect.

- Do not run the motor in the surrounding temperature and moisture.

Package Included:

1 Pc x

Worm Gear Reducer
