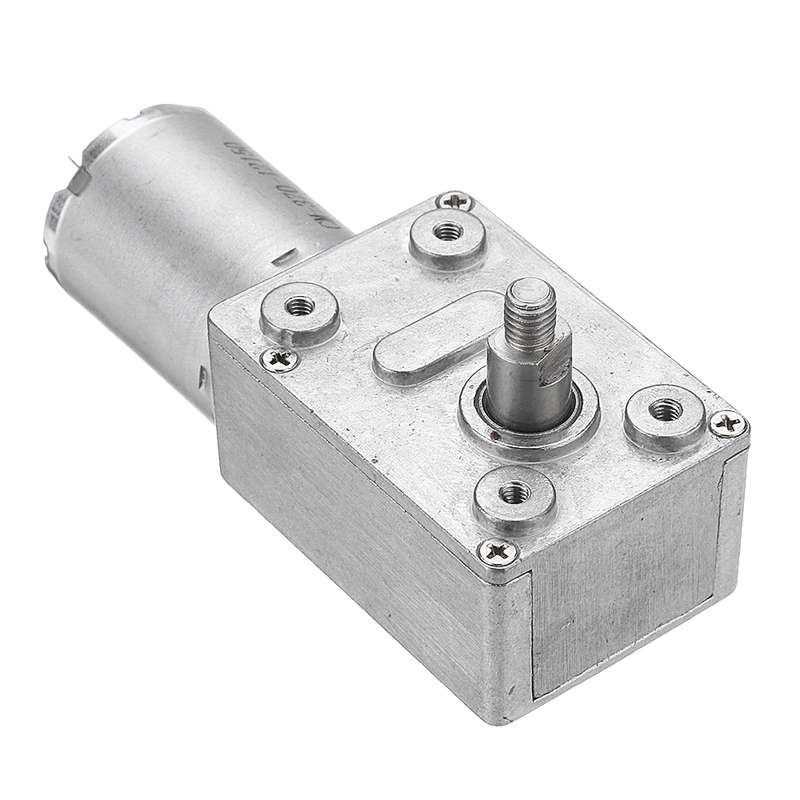

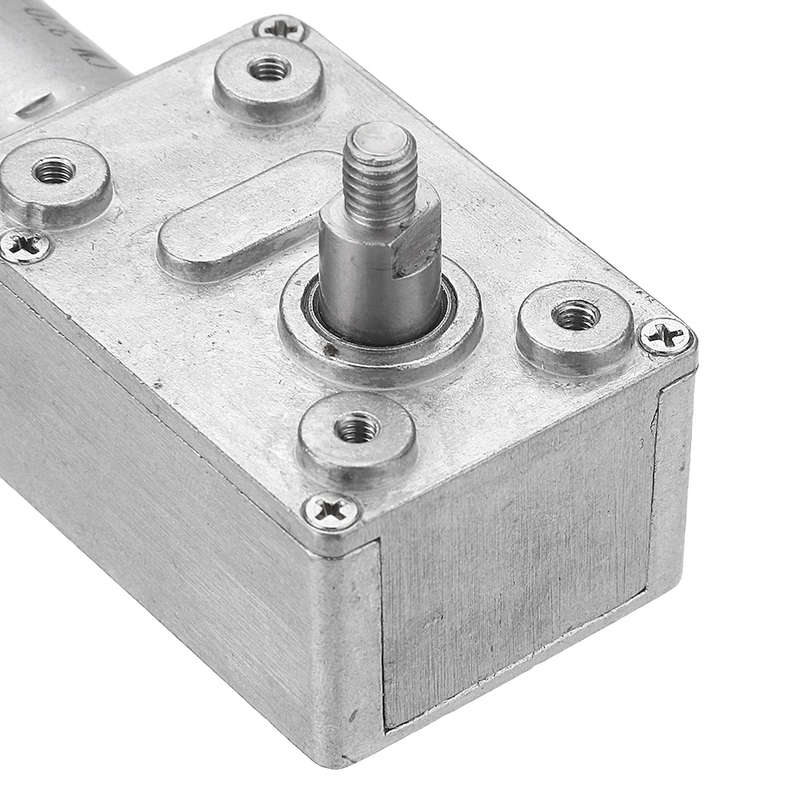

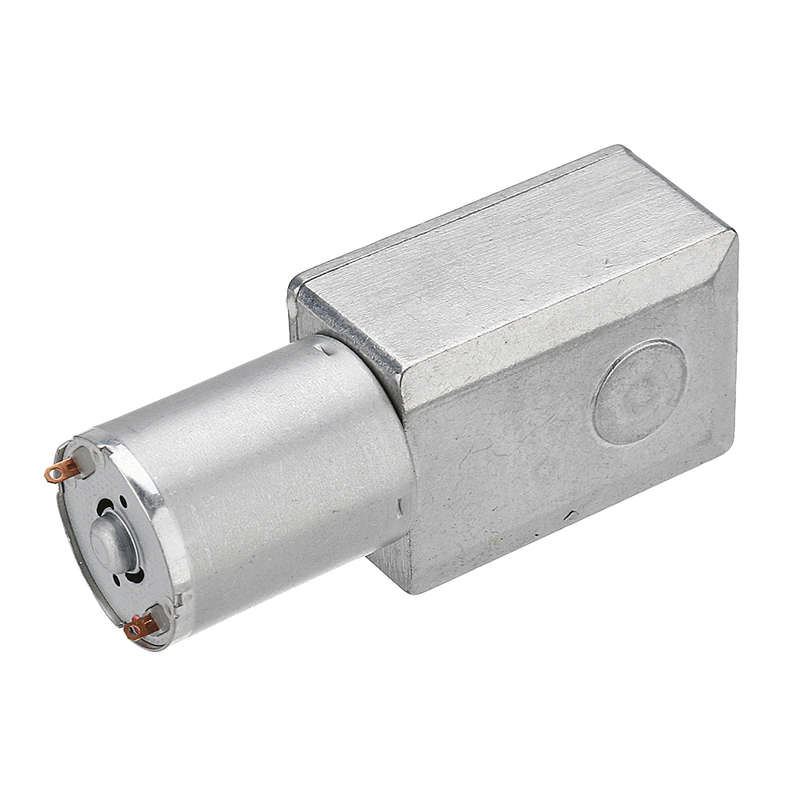

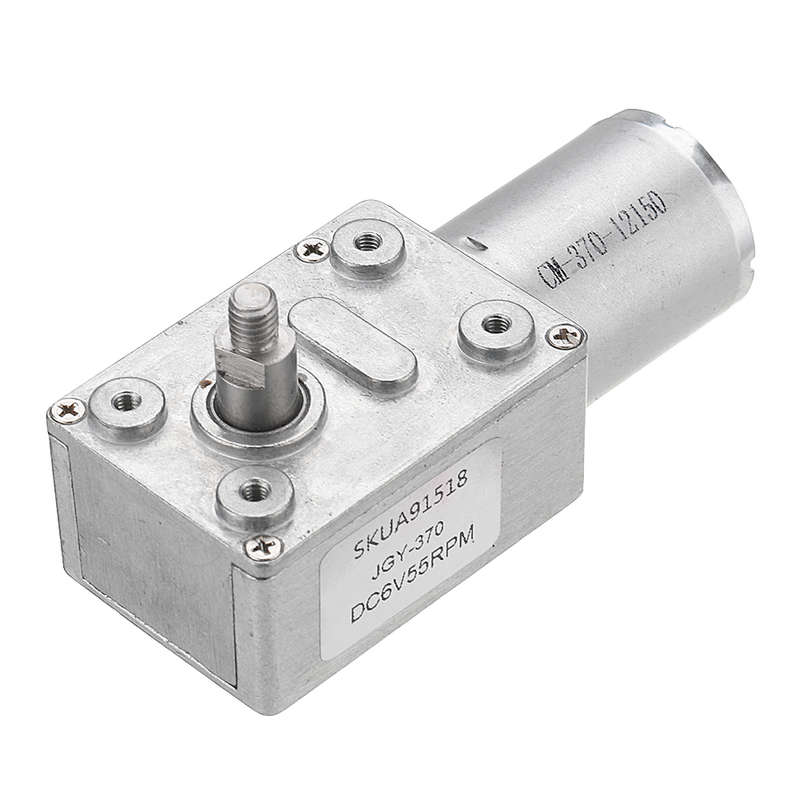

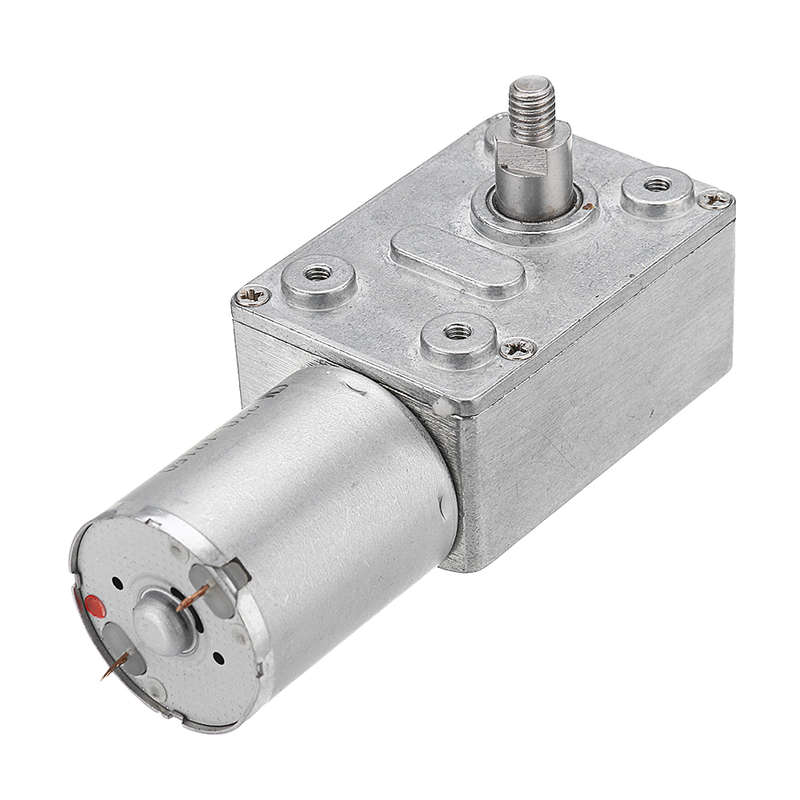

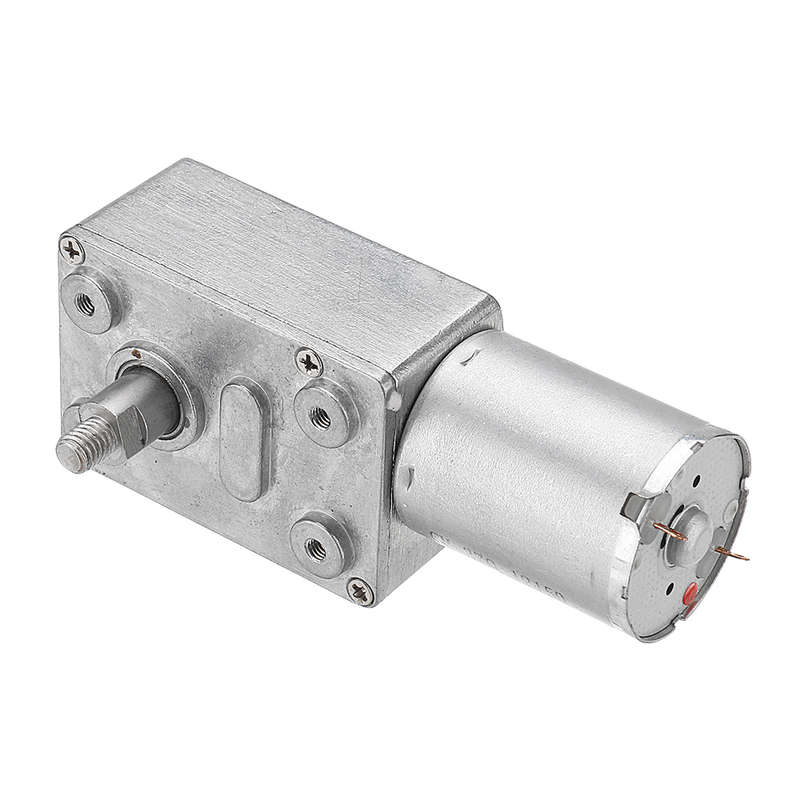

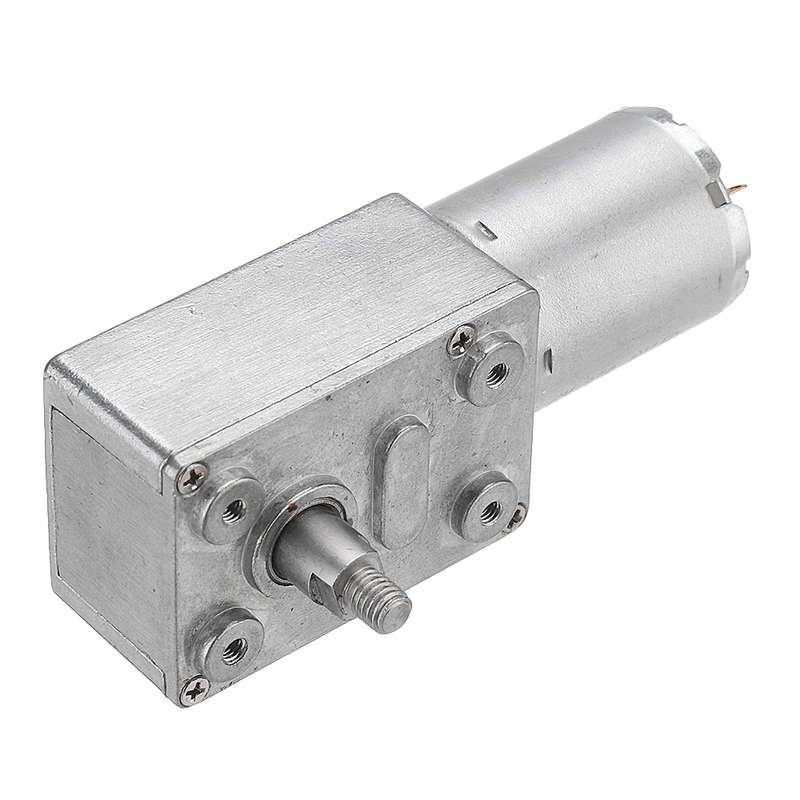

MACHIFIT JGY370 Worm Gear Motor DC 6V 55rpm Reduction Reversible Self-Locking Motor

Description:
MACHIFIT JGY370 worm gear motor 6V 55rpm brush DC reduction motor with auto-Locking fits for lampblack machine

Specification:

Model	JGY370
Voltage	6V

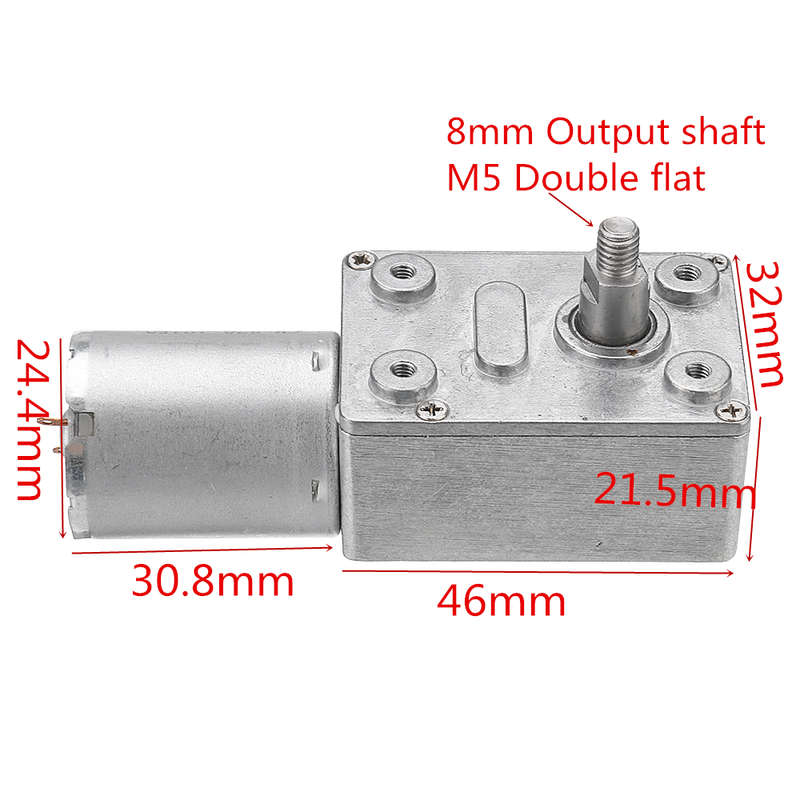

Output shaft	8mm, M5 threaded rod, double flat
Deceleration ratio	90
No load current	a100MA
No Load Speed	55rpm
Rated torque	0.7Kg.cm
Rated speed	45rpm
Rated current	a0.6A
Maximum torque	2Kg.cm
Stop current	3.3A
Usage	Boat, Fan, Domestic Appliance, Car

Features:
- Can change shaft rotation direction while the wiring positive and negative be changed. - It is also have addition two characteristics: First, With self-locking, the output shaft can not rotation when switch off, that is self-locking. Second, Gearbox output shaft and motor shaft are come to be a rectangle. - Large torque, durable and long service life.
-Specially used for range hood.
Package Included:
1 xJGY370 Worm gear motor

More Details:
