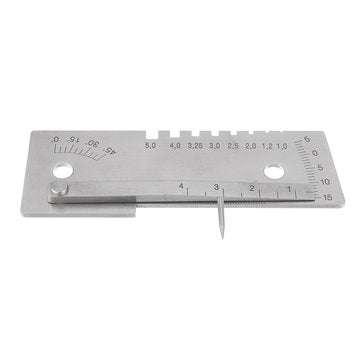

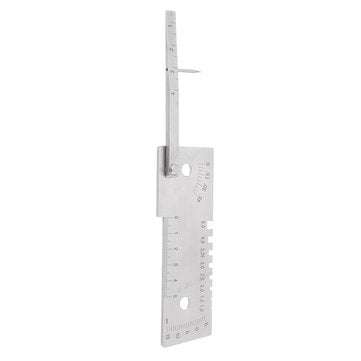

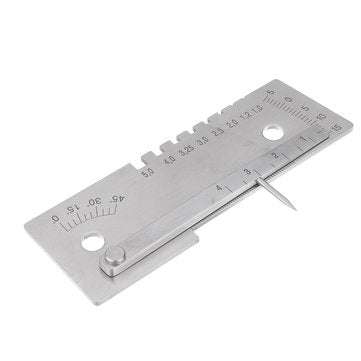

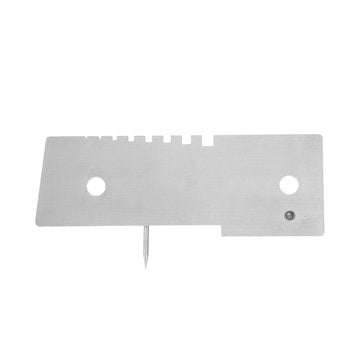

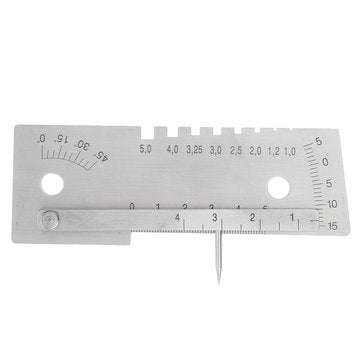

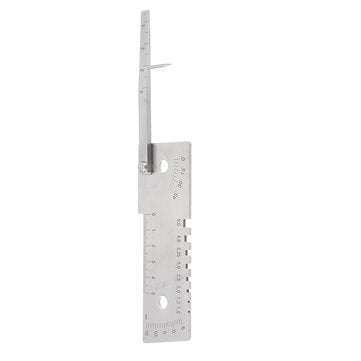

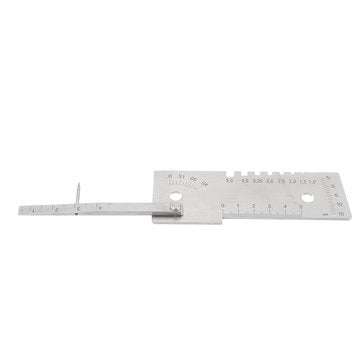

Machifit Universal 45 Degree Weld Gauge Welder Seam Inspection Measuring Ruler Welding Tool

Description:
Machifit Universal 45 Degree Weld Gauge Welder Seam Inspection Measuring Ruler Welding Tool

Specification:

Measuring range of depth	0-15mm
Range of measuring the height	0-5mm
The range of measurement values	0-50mm
Measurement range of the gap	0.5-4mm
Measuring range of angles the bevel edge	0-45ﾣ
Nominal values of the diameters	1, 1.2, 2, 2.5, 3, 3.25, 4, 5mm

Features:
1. Made of stainless steel, and through multiple processes, thicken design, not easy to deform and durable. 2. This gauge is a unique, versatile instrument for the inspection of welded surfaces and joints. 3. All sizes and numerals are etched into the surface for clarity and easier reading, and stable wear-resisting. 4. It measures bevel angle, height, width, undercut depth of weld. 5. The overall design of the hole, easy to hang or carry, more convenient.
Package Included:
1 x Weld Gauge
