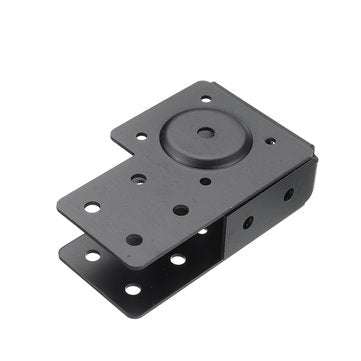

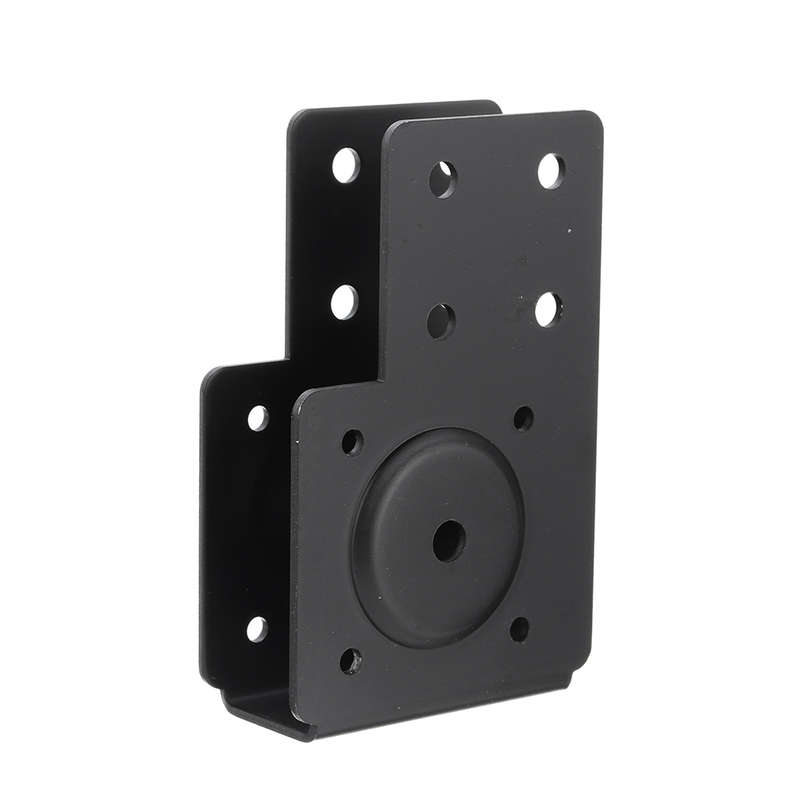

Machifit V-Slot Linear Actuator End Mount Nema17 Motor End Mount Plate for 2040 Aluminum Extrusions

Description:
Machifit V-Slot Linear Actuator End Mount Nema17 Motor End Mount Plate for 2040 Aluminum Extrusions CNC Parts

Specification:

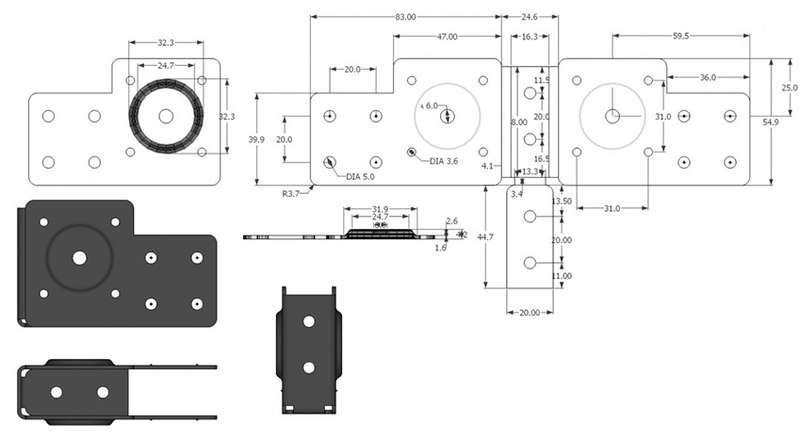

Material: Anodized Aluminum Color: Black Size: 83mm Thickness: 1.7mm
Features:

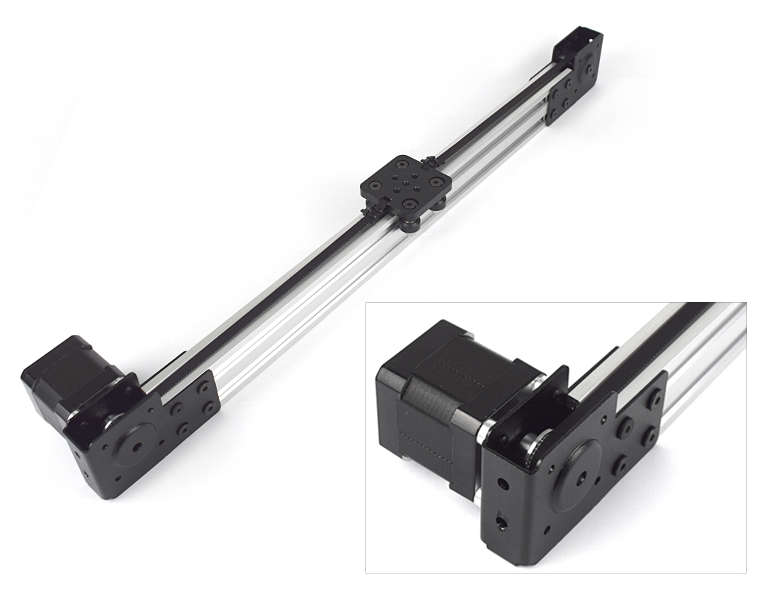

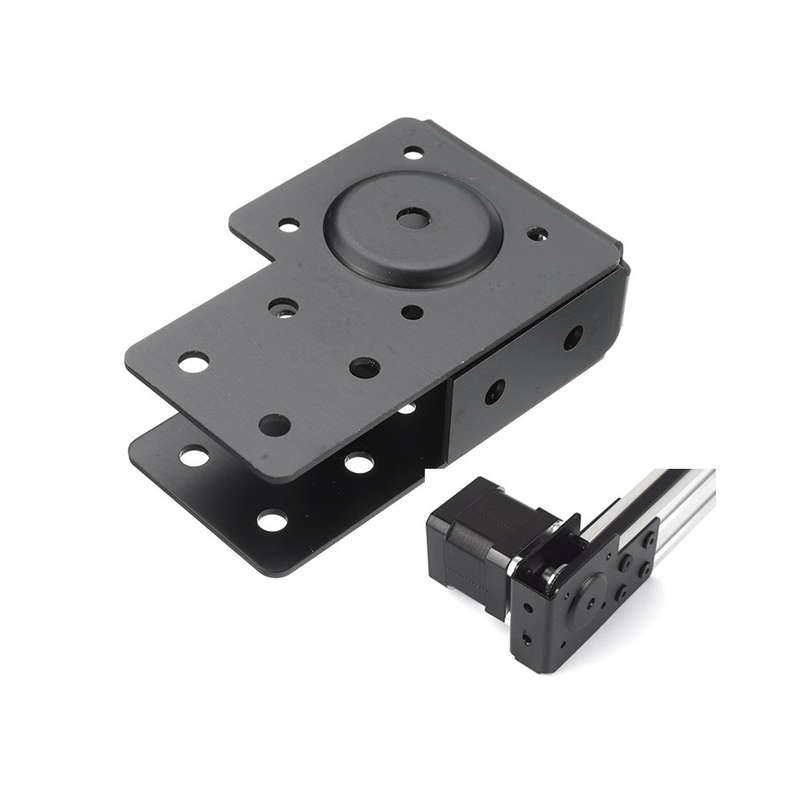

The V-Slot modular actuator end mounts are stamped and folded aluminum end mounts and when used with V-Slot Aluminum Extrusion create a belt driven linear actuators by mounting both a Nema 17 Stepper Motor and the Smooth Idler Pulley. You can create V-Slot actuators a varying lengths using any of the four available sizes of V-Slot. See the example pictures. One of the great features of these end mounts is the ability to mount to the ends as well as the bottom. This modular concept allows for the creation of many different machine designs. See example pictures to understand how these end mounts can be coupled with the Mini V plate. The mounting holes on the end mounts are 20mm apart allowing for easy connection to both the Mini V Plate and V-Slot extrusion. Use with the double tee nut for a quick and simple installation. So if you need a belt driven linear actuator that can be made to custom lengths and with connection flexibility for a modular style build, then these end mounts are perfect for your project.
Package Included:
1 x V-Slot Linear Actuator End Mount
