Application: Desktop
Back I/O Ports: 1x RJ45,6 x USB 2.0,PS/2
Battery Included: No
Brand Name: MACHINIST
Certification: RoHS,CE
Chipset: Intel H55
Chipset Manufacturer: Intel
Choice: yes
Form Factor: CeB,Micro-ATX
High-concerned chemical: None
MACHINIST Model: X99-PR9
Max LAN Speed: 1000Mbps
Maximum Ram Capacity: 128 GB
Memory channel: Double
Number Of Memory Slots: 4
Number of M.2: 1
Number of PCI: 2
Number of PCIe x 1: 1
Number of PCIe x 16: 1
Number of PCIe x 4: 0
Number of PCIe x 8: 0
Number of SATA Ports: 2
Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,PWR_FAN Connector,USB 2.0 Connector
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Ports: USB 2.0
Processor compatibility: 6th Intel Core i5,Intel Others
Quality Certification: ce,ROHS
RAID Supported: No
Socket Type: LGA 2011-3
Special Features: NONE
Storage Interface Type: SATA,M.2 (NVMe),M.2 (SATA)
Support Memory Type: DDR4
Support USB Type: USB 2.0
Supports M.2 SSD: 2280
Usage Scenario: Gaming,Audio & Video,Office,Video Production,others
With CPU: Yes
Please pay attention to the bundle options before purchasing. Buy a single motherboard. We do not send CPU and memory. Please check carefully.
CPU:
Processor series: Xeon E5 2650V4 (12 cores/24 threads)
Main frequency: 2.2GH zup to 2.9GHz
Socket type: LGA 2011-3
L3 cache: 30MB
Process: 14nm
TDP：105w
Note:
1: CPU is used, condition good, 1 year warranty
2: There may have some little physical scratches on the surface of the CPU, this is pretty normal.
3: All CPU are strictly tested before shipping
Memory:
Type: ECC REG (server memory)
Frequency: DDR4 2133MHZ
Capacity:16G (2*16G)
For installing memory, if you install a single or dual memory stick, you need to install it in slot 1 and slot 4 (the outermost slot) first. The internal memory slots (2/3) on the motherboard cannot be used alone. The details page picture has an introduction.
MACHINIST
Model: X99-PR9-H LGA2011-3
Condition: Brand new
Chip: HM55 chipset
CPU slot: LGA 2011-3
Structure: M-ATX
Graphics slot: PCI-E X 16
Power interface: 24Pin+4Pin
Supported CPU: Supports 2011-3 full series CPU (including V3, V4 series)
Memory slot: 4* DDR4
Maximum memory capacity: 4* 32G DDR4 2133/2400MHz/2666MHz/3200MHz
Supported memory type: Non-ECC/Reg ECC/ECC
Integrated graphics: No

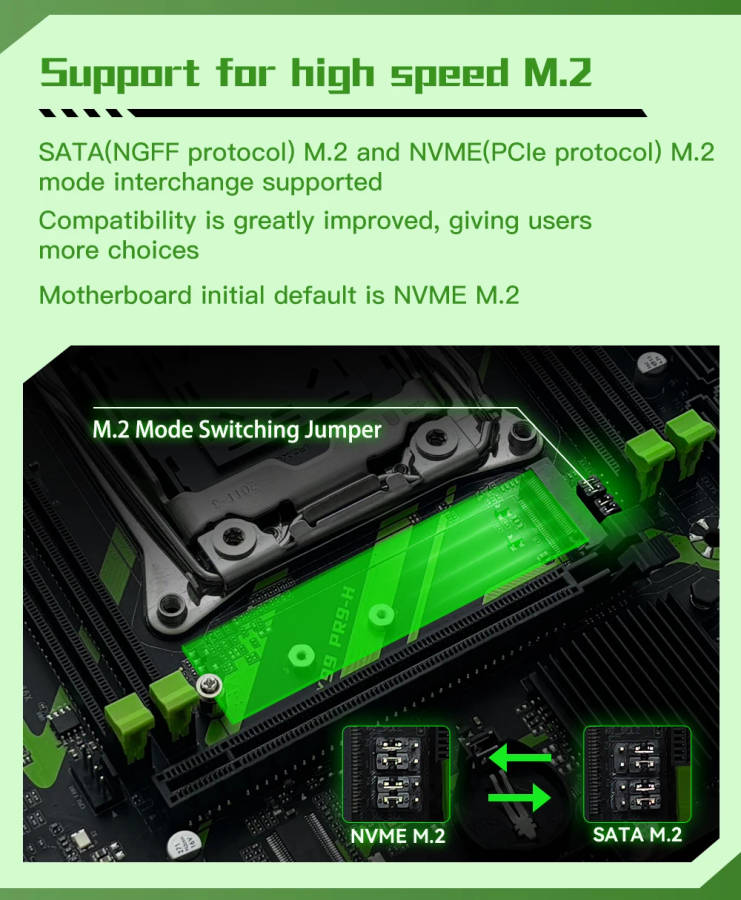

Support NVME/NGFF M.2 interface. Please note that the jumper on the motherboard needs to be switched.
Applicable hard disk: SATA 2.5 solid state drive, SATA 3.5 mechanical hard disk, NVME M.2, SATA M.2 [supports M.2 mode switching, factory default is NVME (PCIE), can be switched to NGFF (SATA)]
Startup item shortcut key: f11
It can boot without a graphics card, but it cannot enter the system.
Sound card model: Realtek ALC 897 2.1 channel
Network card: Realtek 8111H (Gigabit)
Motherboard size: 21.5cm*18.5cm
Note:
1. Memory installation instructions: Memory of different specifications must not be mixed. If four memory sticks are installed, the same specification of memory is required.
2. All motherboard memory processors are strictly tested before shipment.
3. The battery in the motherboard picture will be removed before shipment because China Post and Customs prohibit carrying batteries.
