This Smart Magnetic Sensor 433MHz is battery-operated and can be expanded to our Smart Security Alarms that support 433MHz. Connect via 433MHz to our Smart WiFi Alarm systems to save costs.
Home Automation is made Smart, Simple and Affordable via the Tuya, Smart Life App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
This sensor uses advanced signal processing technology. When an intruder comes into the detection zone, the detector will automatically detect the intruder's motion and emit a wireless signal to the alarm Host (Alarm starter kit). This product is widely used in homes, factories, warehouses and offices. It easily adapts to environment changes, the detector also has energy saving, reliability and easy installation, this device is built to be connected to your smart security Alarm starter kit
Please note this device is NOT a stand-alone item and does not directly connect to the Tuya Smart Home app. This device is only purchased as an expansion or add-on to an existing Smart Home Alarm System Hub, which support both 433Mhz additional sensors (like this device) and also WiFi which is used for connection to the Tuya app - see additional images.
To purchase our 'Smart Home, Security Alarm Systems' - this device adds to the system [click here]
Product Features

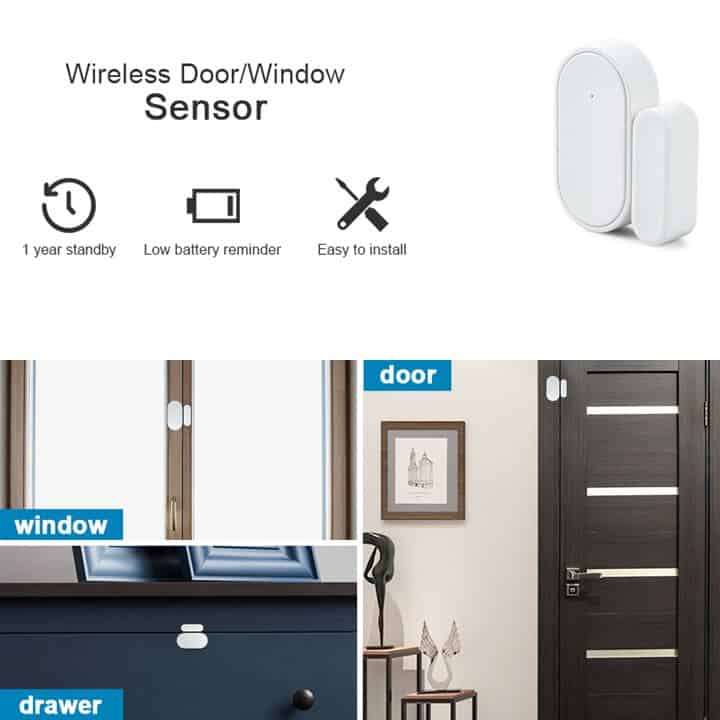

- Detects any door or window is Open or Closed
- Low battery indication
- Digital dual-core fuzzy logic infrared control chip and intelligent analysis which effectively reduce false alarm rate
- Communication range of up to 100-200m
- Indoor use only
Specifications
| Power Supply | Battery |
| Battery Type | 23A 12V |
| Wireless frequency | 433MHz |
| Wireless transmission range | 100-200 meters(Open area) |
| Coding chip and Resistance | EV1527/330K |
| Alarm indicator | Red LED |
| Low battery indicator | Red LED |
| Antenna type | Telescopic antenna |
| Static current | 10A |
| Alarm current | 30mA |
| Operation Temp. | 10°C to +50°C |
| Humidity | 5%--95% non-condensing |

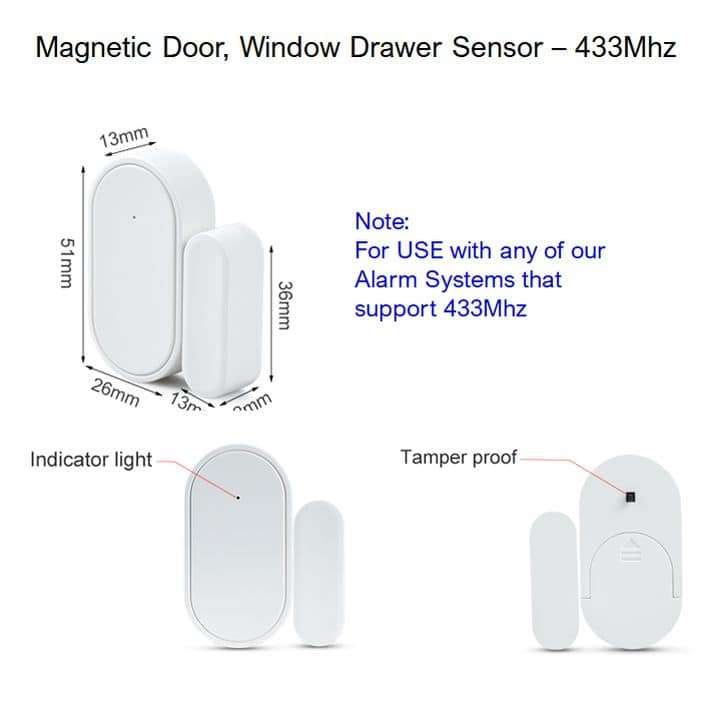

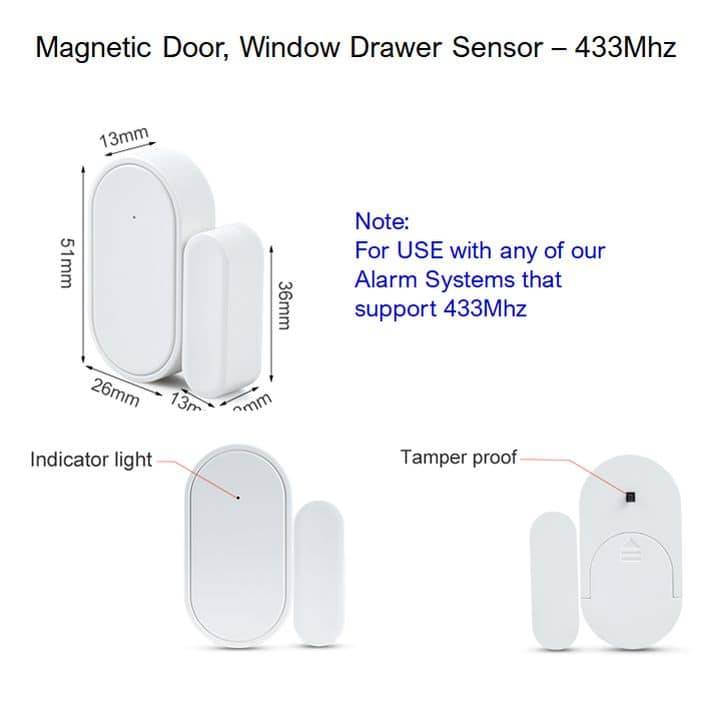

| Dimension | 65*24*14mm |
| Weight | 50g |
What's in the box?
- 1 x Smart Magnetic Sensor 433MHz
- 1 x Adhesive Paper
- 1 x Battery
FAQ's
