1000A AC/DC Thermal TRMS Clamp Meter, CAT IV 600VThermal Imager Bluetooth
6000 count 2.4" TFT Colour LCD display
Ø37mm Cable Clamp size
1000A AC/DC
1500V DC and 1000V AC
AC+DC TRMS Voltage 1000V
INRUSH Current Measurements
Resistance to 60M
Capacitance to 100mF
Frequency to 10MHz
K-type Temperature -40C to 1000C
Thermal Temperature -20C to 260C
80×80 pixel Thermal Imager Resolution
Image Frequency to 50Hz
Logging function with Trend Capture
NCV Non-Contact Voltage Detector
Built-In Flashlight
Continuity buzzer and Diode Test
Max, Min and Average with Time Stamp
Optional MT740 Flexible Coil Clamp for measurement to 3000A AC.

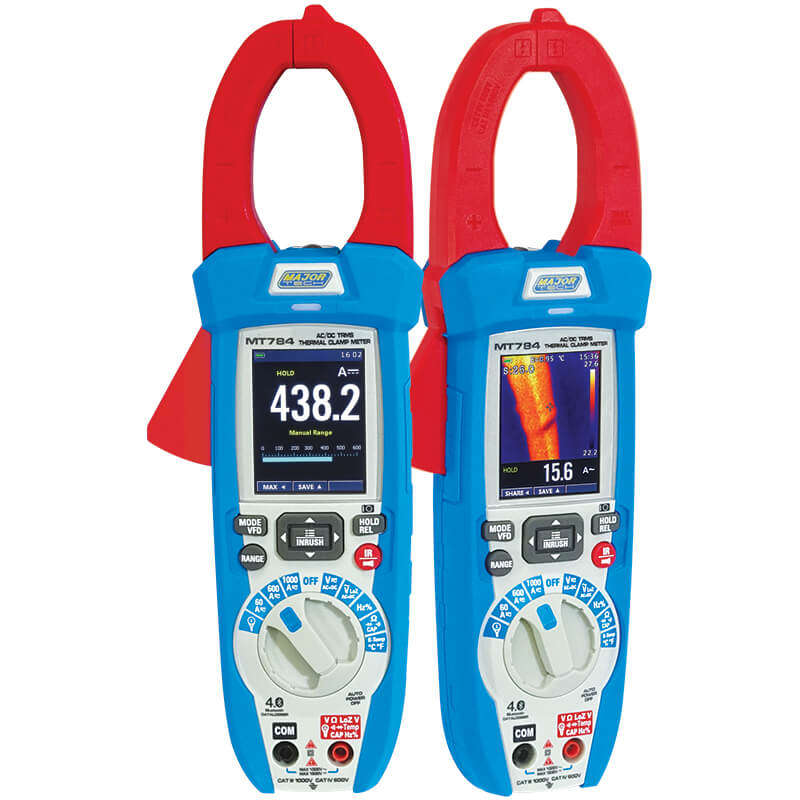

The MT784 is a 1500V DC Thermal Imaging Clamp Meter. This meters measures 1000A AC/DC and incorporates an 80 x 80 pixel Thermal Imager with a range from -20C to 260C. This Thermal Imaging Clamp Meter has a large 6000 count colour TFT LCD display that provides fast sampling times and high accuracy measurements. The clamp meter has been designed to measure 1500V DC purposely for the Solar industry, 1000V AC, K-Type temperature, frequency, capacitance, AC+DC Voltage and resistance measurements, plus the Low Z range function has a low pass filter to eliminate errors caused by "Ghost" voltages.
The 100ms Inrush current detects starting up currents of electric motors, input surge current, or switch-on surge currents, this is the maximum instantaneous input current drawn by an electrical device when first turned on.
This Thermal Imaging Clamp Meter has a built-in record and store function and displays trend capture, using the Bluetooth function the meter wirelessly transmits data to the Android or iOS mobile App allowing the user to view, save, organise and share recordings. Added features is Non-Contact voltage detection, Peak Hold, Min/Max and Average, Data hold function and a built-in flashlight for dimly lit areas. The Thermal Imaging Clamp Meter has double injection moulded housing and is IP65 waterproof. The MT784 auto powers off when the clamp meter is not in use.
Optional MT740 Flexible Coil Clamp for measurement to 3000A AC.
