1000A AC/DC TRMS Bluetooth Clamp Meter, CAT IV 600V
6000 count TFT colour LCD display
Ø33mm Cable Clamp size
Measurement of AC, AC+DC TRMS and DC voltage up to 1000V
Capacitance to 100mF
Temperature measurement from -40C to 1000C
Trend Capture Function
100 Graph Data Review
INRUSH Current Measurements
3000A range for optional MT740 Flex Clamp Adaptor
VFD Variable Frequency Drive voltage value
LoZ Low impedance mode prevents false readings due to "Ghost" voltage
NCV Non-Contact Voltage Detector
Continuity buzzer and Diode Test
Peak Mode, Min/Max and Data Hold function
Built-in Flashlight and Auto Power Off

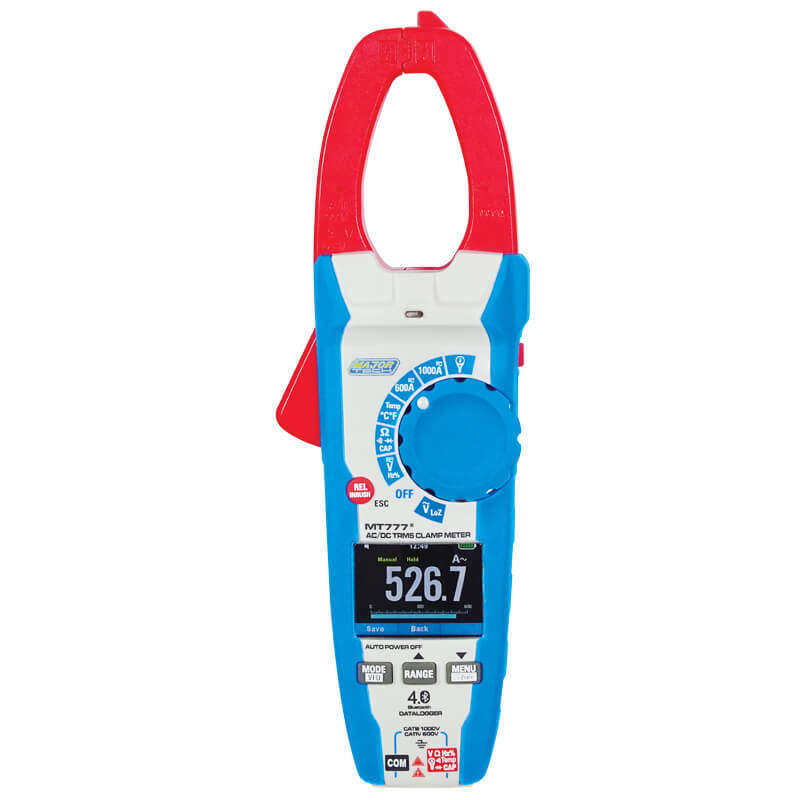

The MT777 is a 1000A AC/DC TRMS Bluetooth Clamp Meter with an analogue bargraph indication on a TFT colour display, providing fast sampling time with high accuracy. The meter has a built in Data logger with 100 Graph Data review, using Bluetooth, the meter wirelessly transmits data to the Android or iOS mobile App allowing the user to view, save, organise and share recordings. The VFD function allows the user to measure stable voltage in high frequency applications, while the Low Z range function has a low pass filter to eliminate errors caused by "Ghost" voltages. The 100ms Inrush current detects starting up currents of electric motors, input surge current, or switch-on surge currents, this is the maximum instantaneous input current drawn by an electrical device when first turned on. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements plus Peak Hold. Using the optional MT740 True RMS Flexible Clamp Adaptor, the measuring range can be extended to measure 3000A AC. Added features is Non-Contact voltage detection, data hold function and a built-in flashlight for dimly lit areas.
Accessories:
Test Leads
Type-K Wire Probe
Type-K Adaptor
Carrying Case
3 x AAA Batteries
Instruction Manual
Note:
Bluetooth Connect:
Turn on the Bluetooth function on the instrument using Menu Button
Turn on the Bluetooth of the Smartphone, press the Meterbox Pro icon and enter into the home interface. Then press Connect Device icon on the home interface, Bluetooth device name will appear.
Touch the device name listed in Bluetooth devices list to connect the meter
Detailed information about Meterbox Pro available on the APP help file.
Meterbox Pro for Android:
Please search in Google Play with keyword Meterbox Pro, download and run
Meterbox Pro for IOS:
Please search in the Apple Store with keyword Meterbox Pro, download and run
