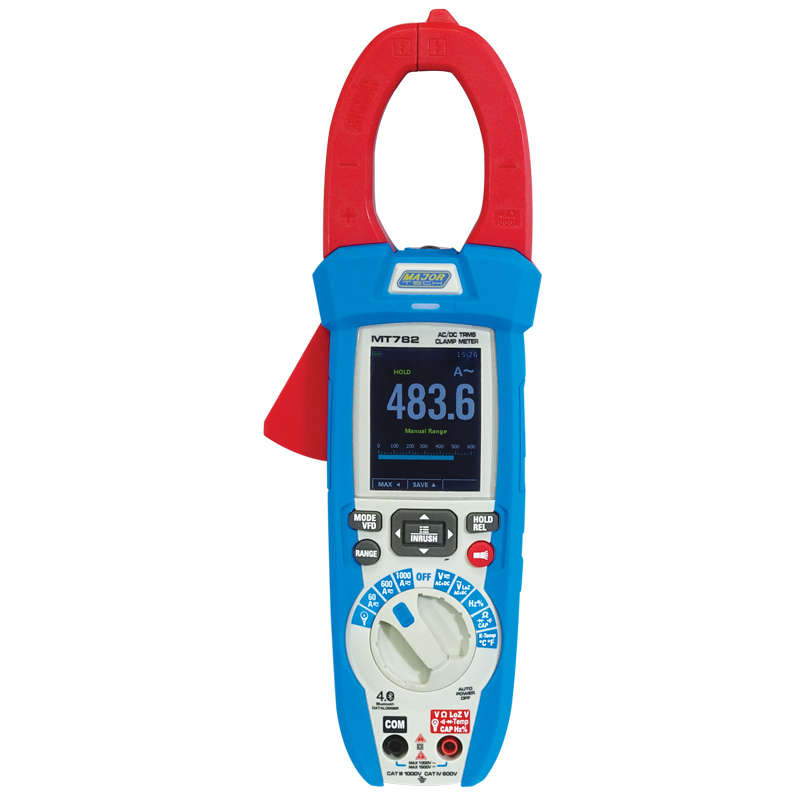

1000A AC/DC TRMS Clamp Meter, CAT IV 600VBluetooth
6000 count 2.4" TFT Colour LCD display
Ø37mm Cable Clamp size
1000A AC/DC
1500V DC / 1000V AC
AC+DC TRMS Voltage 1000V
INRUSH Current Measurements
Capacitance to 100mF
Resistance to 60M
Frequency to 10MHz
K-type Temperature -40C to 1000C
Logging function with Trend Capture
NCV Non-Contact Voltage Detector
Built-In Flashlight
Continuity buzzer and Diode Test
Max, Min and Average with Time Stamp
Optional MT740 Flexible Coil Clamp for measurement to 3000A AC
Description
The MT782 is a 1500V DC Solar Clamp Meter. This clamp meter has a large 6000 count colour TFT LCD display with an analogue bargraph that provides fast sampling times and high accuracy measurements. The Solar Clamp Meter has been designed to measure 1500V DC purposely for the Solar industry, 1000V AC, K-Type temperature, frequency, capacitance, AC+DC Voltage and resistance measurements. The Low Z ACV range has a low pass filter to eliminate errors caused by "Ghost" voltages.
The 100ms Inrush current detects starting up currents of electric motors, input surge current, or switch on surge currents, this is the maximum instantaneous input current drawn by an electrical device when first turned on.
This Solar Clamp Meter has a built-in record and store function and displays trend capture, using the Bluetooth function the meter wirelessly transmits data to the Android or iOS mobile App allowing the user to view, save, organise and share recordings. Added features is Non-Contact voltage detection, Peak Hold, Min/Max and Average, Data hold function and a built-in flashlight for dimly lit areas. The Solar Clamp Meter has double injection moulded housing and is IP65 waterproof. The MT782 auto powers off when the clamp meter is not in use.
Optional MT740 Flexible Coil Clamp for measurement to 3000A AC
Accessories:
Hard Carrying Case
Test Leads
Temperature Probe
K-Type Adaptor
Instruction Manual
Rechargeable Li-ion Batteries
Battery Charger
Additional information
DC voltage
600.0mV 1500V
DC Voltage Resolution
0.1mV
DC Voltage Accuracy
± (0.8% + 8 Digits)
AC voltage
6.000V 1000V
AC voltage Resolution
1mV
AC voltage Accuracy
± (1.2% + 5 Digits)
AC + DC TRMS voltage
6.000V 1000V
AC + DC TRMS voltage Resolution
1mV
AC + DC TRMS voltage Accuracy
± (2.5% + 20 Digits)
DC Current
600.0A 1000A
DC Current Resolution
0.1A
DC Current Accuracy
± (2.5% + 5 Digits)
AC Current
60A 1000A
AC Current Resolution
0.1A
AC Current Accuracy
± (2.5% + 8 Digits)
Flexi Coil AC Current
30.00A 3000A
Flexi Coil AC Current Resolution
0.01A
Flexi Coil AC Current Accuracy
± (3% + 5 Digits)
Duty Cycle
10.0% 90.0%
Duty Cycle Resolution
0,1%
Duty Cycle Accuracy
± (1.2% + 8 Digits)
Resistance
600.0 60.00M
Resistance Resolution
0.1
Resistance Accuracy
± (1.0% + 10 Digits)
Frequency
60.00Hz 10.00MHz
Frequency Resolution
0.01Hz
Frequency Accuracy
± (2.0% + 5 Digits)
Capacitance
60.00nF 100.0mF
Capacitance Resolution
0.01nF
Capacitance Accuracy
± (3% + 20 Digits)
Temperature K Type
-40 to 1000°C
Temperature K-Type Resolution
0.1°C
Temperature K Type Accuracy
± (1.5% + 3°C)
Continuity
Yes
Diode test
Yes
True RMS Measurements
ACV, ACA
AC Bandwidth
50Hz to 60Hz
Digital Display
6000 TFT
Bargraph
Yes
Bluetooth
Yes
Records events and Trends
Yes
Non-Contact Voltage (NCV)
Yes
Overrange indication
Yes
Input impedance
>10M DCV & VAC
Min Max
Yes
Peak hold
Yes
Data Hold
Yes
Enclosure
Injection moulded case
Low battery indication
Yes
Power source
7.4V Rechargeable
Weight
550g
Dimensions
270 x 95 x 42mm
Safety Specs
IEC61010-1 CATIV 600V
