MAJOR-TECH - 1000V/2.5KV/5KV/10KV Digital Insulation Tester, CAT IV 600V MT575

1000V/2.5KV/5KV/10KV Digital Insulation Tester, CAT IV 600V

Insulation Test Voltages from 1000V to 10 000V
Microprocessor controlled with 2 lines x 16 characters intelligent display
Short circuit current up to 5mA
DAR Dielectric Absorption Ratio indication
PI Polarization Index indication
Measurement of AC and DC voltage up to 600V
Auto ranging on all insulation ranges
Adjustable test time from 1 minute to 30 minutes
Auto hold to freeze measurement readings
200 measurement results can be saved in memory and recalled onto the display
Visual and audible warning of external voltage greater than 30V AC and DC
Auto Power Off
Date and Time calendar

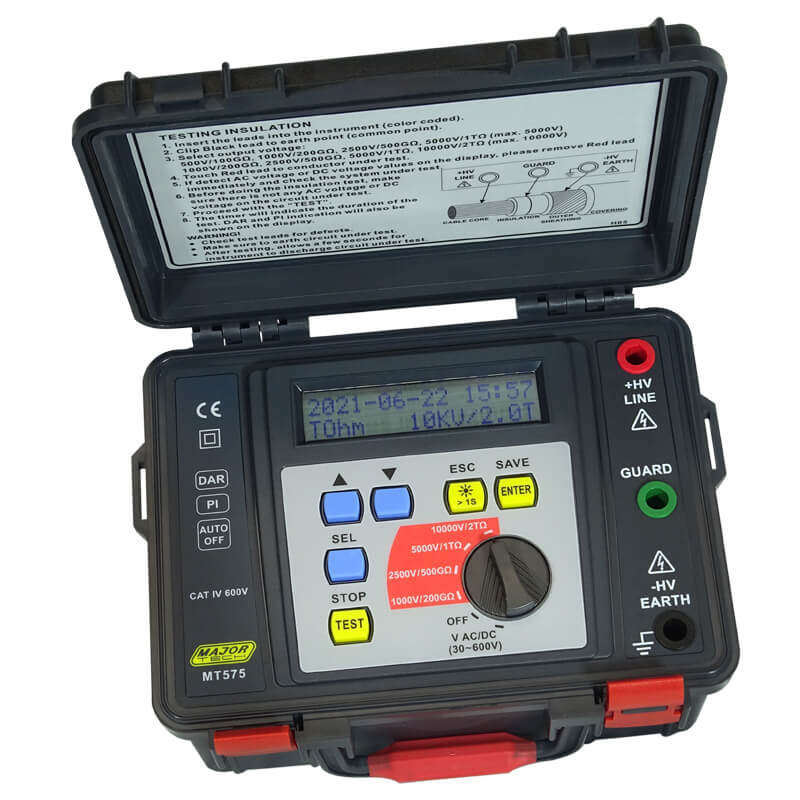

The MT575 is a 10kV High Voltage Insulation Tester with measurements from 1000V DC to 10,000V DC, and will automatically discharge the circuit after the test has been completed. Using the rotary selector switch, 4 preset ranges of 1000V, 2500V, 5000V and 10 000V can be selected, with an insulation resistance up to 2T. The microprocessor controlled MT575 is ideal for analyzing the insulation characteristics of cables, transformers, motors, generators, high pressure switches, insulators and large wiring installations as the short circuit current output is up to 5mA. 200 test measurement results can be saved in the memory of the meter and recalled onto the LCD display. The large intelligent LCD display consists of 2 lines x 16 characters, indicating the reading of insulation, measuring time, output voltage and output current. The MT575 can measure AC and DC voltage up to 600V and is housed in a robust case ideal for extended field use, powered by 8 pieces "C" 1.5V batteries.

Accessories

Test Leads
Croc Clips
Carrying Case
Shoulder Strap
Batteries
Instruction Manual
