12KV Insulation Tester, CAT IV 600V
Insulation Resistance (IR) & Leak Current with a wide range of measurement from 500V-1000V-2500V-5000V-10000V-12000V
Insulation resistance up to 35T
Variable test voltage of 5V to 100V steps
Voltage & elapsed time are displayed
Polarization Index (PI)
Dielectric Absorption Ratio (DAR)
Step Voltage (SV)
Dielectric Discharge Index (DD)
Capacitance measurement
Auto discharge function and voltage output warning function
Internal Memory max 40,000 data
Built-in Print Screen Function enables to record display screen, records 32 screens max
Downloading to PC using the USB cord and the PC software included as standard accessories, the memory data or the measuring data can be transmitted to a PC at real time
Mains and battery powered internal battery can be charged during normal operation
Robust design for field use with weatherproof protection in IP64 casing with lid closed
Large backlit LCD graphic display with bargraph

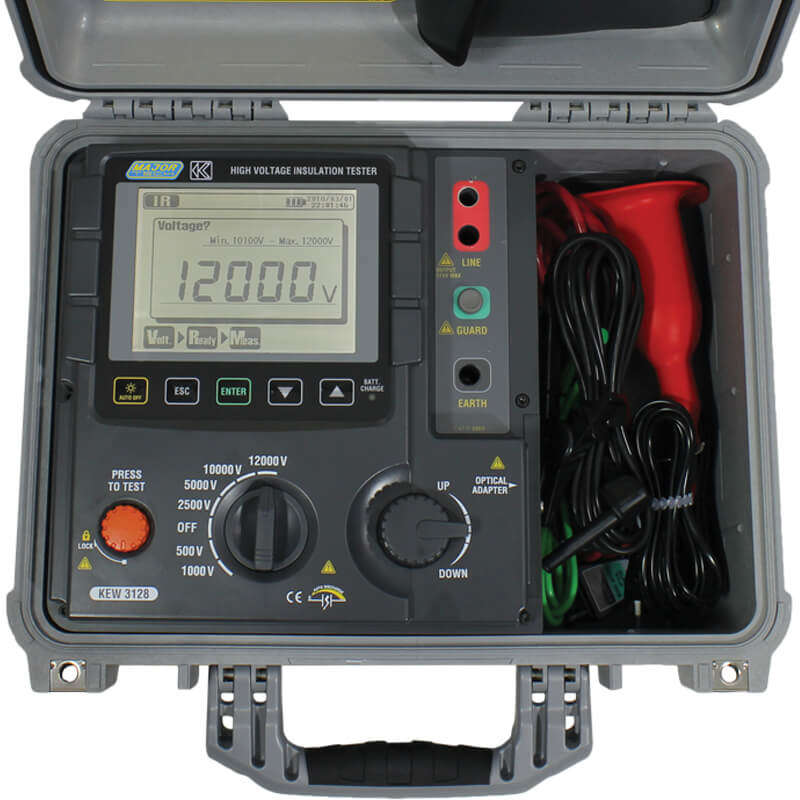

The K3128 is a 12kV High Voltage Digital Insulation Tester with 6 ranges, 500, 1000, 2500, 5000, 10000 and 12000V with a fine adjustment setting (5V to 100V steps) with an insulation resistance up to 35T. The microprocessor controlled K3128 is ideal for analyzing the insulation characteristics of cables, transformers, motors, generators, high pressure switches, insulators and large wiring installations. It is housed in robust IP64 (lid closed) case, ideal for extended field usage, powered by rechargeable batteries and an AC input which can be operated while under charge. After a completion of an insulation test, the K3128 automatic discharge and display the test voltage. Data storage of test is available in 3 types of data: logging Data (REC File), Measured Data (Save File), and Print Screen (BMP File), this captures and saves the screen images.
Accessories:
Carrying Case
12V Lead-Acid Battery
Test Leads
Instruction manual
Charger
Software
USB Cable
COC
