MAJOR-TECH - 240V-500kV AC HV Non-Contact Voltage Detector MT275

240V-500kV AC HV Non-Contact Voltage Detector

10 voltage settings from 240V to 500kV
Bright LED visual indication and Audible indication
AC voltage detection from 240V to 500kV
Wide 120 angle for voltage detection
Non-contact detection by proximity
IP65 waterproof housing
Easy-to-prove method
Compatible with most hot sticks
Suitable for indoor and outdoor use
High impact nylon casing
Built-in Flashlight
Self-test function
Comply with EN 61326-1, CISPR 11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8

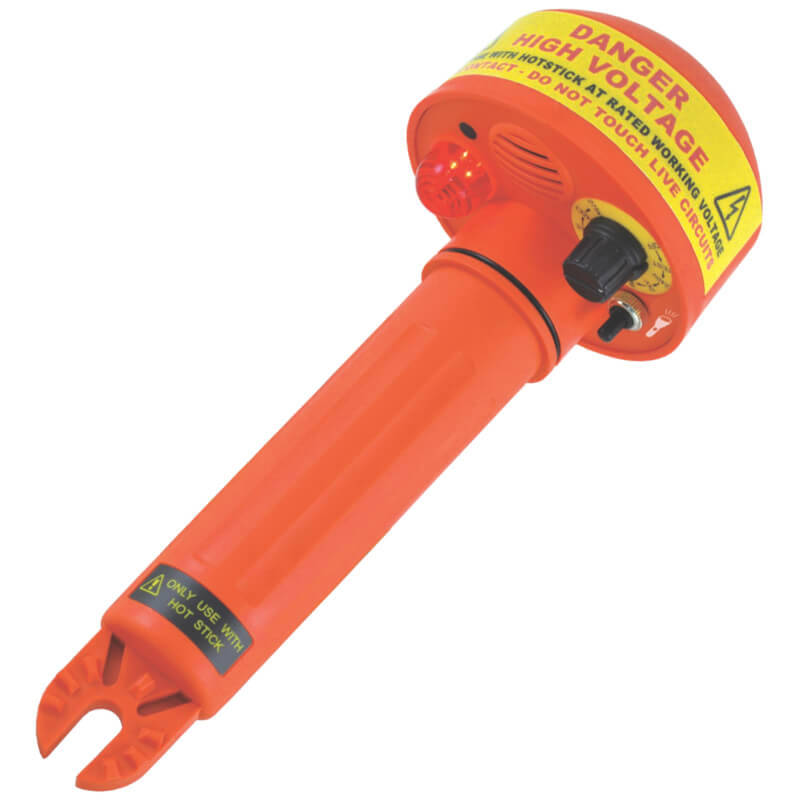

The MT275 is a High Voltage Proximity Detector that has 10 voltage settings from 240V AC to 500kV AC. The MT275 provides a wide 120 angle for non-contact detection with an internal pickup sensor plate that senses the radiated field which surrounds live conductors, the field strength increases with voltage and decreases quickly with distance or earthing shields. When testing for high kilo voltages the MT275 can be used in conjunction with long insulating link sticks or hot sticks. There is a built-in self-test range to verify the detector is in working order.

Accessories:
Carrying Case
3 x C Batteries
Instruction Manual
