MAJOR-TECH - 250/500/1000V Digital Insulation Tester, CAT III 300V K3005

250/500/1000V Digital Insulation Tester, CAT III 300V

Three test ranges 250V 500V 1000V
Resistance to 2000
Auto null function
Automatic discharge after test
Main bargraph indication of insulation resistance, sub bargraph indicates output voltage
Displays the value of external AC voltage along with flashing symbol and buzzer
Lock down Test Button for continuous use
1mA output current on insulation test
200mA short circuit on continuity range
EL Backlight for dimly lit areas

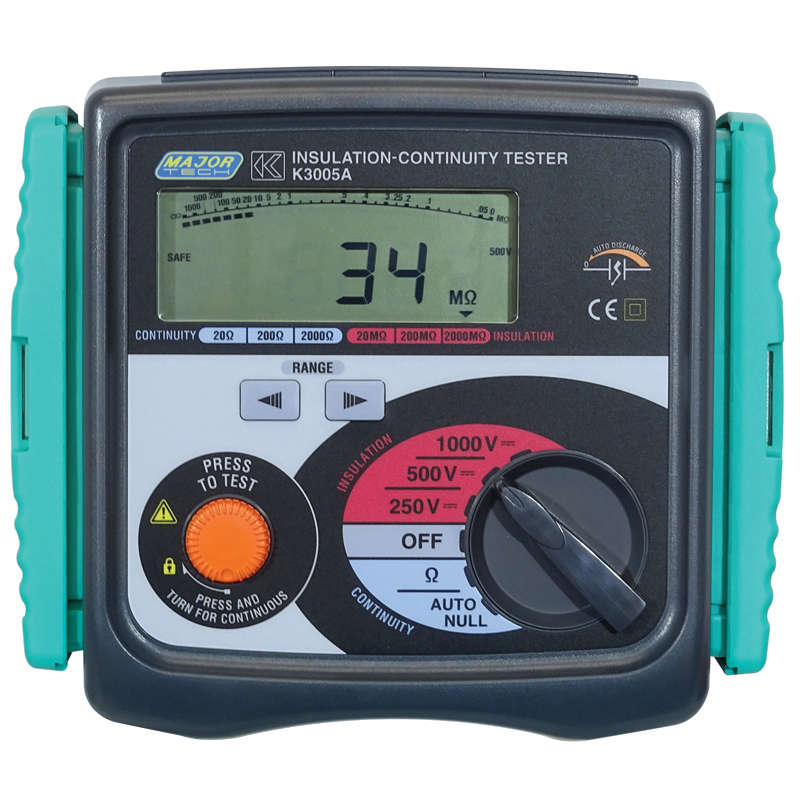

The K3005 is a 1000V Digital Insulation Tester and has three test voltage ranges: 250V, 500V and 1000V and is equipped with a unique bargraph display that illustrates to the user that the insulation under test meets the minimum voltage required by the regulations. An advanced feature included in this model is Auto Null mode, this unique function subtracts the test lead resistance during continuity tests, ensuring repeatable accuracy. Another great feature is the EL Backlight on the display which enables readings to be taken in dimly lit areas.

Accessories:
Instruction Manual
Carrying Case
1 x Set test probes K7122
1 x strap belt
1 x Test probe pouch
1 x 8AA batteries
1 x Spare fuse F 500mA/600V
