MAJOR-TECH - 250/500/1000V Digital Insulation Tester, CAT IV 600V MT550

250/500/1000V Digital Insulation Tester, CAT IV 600V

Three test ranges 250V-500V-1000V
750V AC voltage and 1000V DC voltage ranges
Live Circuit warning and buzzer
Data Hold function
1mA output current on insulation test
200mA short circuit on continuity range
Continuity Buzzer
Automatic discharge after test
Lock down Test Button for continuous use
Hands free strap and magnet supplied as standard accessories
Rubber overmould housing
Illuminated display

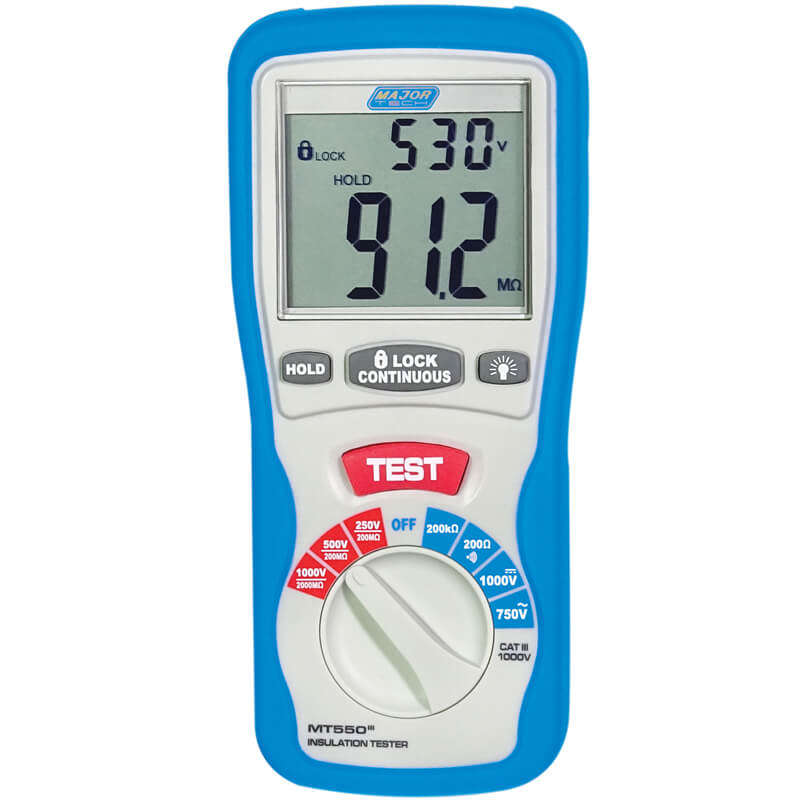

The MT550 is a 1000V Digital Insulation Tester easy-to-use handheld meter and has three test voltage ranges 250V, 500V and 1000V together with two continuity ranges. Whilst doing the insulation test, the large LCD will indicate the insulation resistance together with the actual output voltage. Once the test is complete the circuit under test will be automatically discharged. The MT550 features an AC and DC voltage ranges, battery voltage indication, resistance and a continuity buzzer. If AC voltage is detected, the LCD will display the actual voltage to the user except in the off position.

Accessories:

Test Leads
Black Crock Lead
Magnetic Strip
Carrying Case
Adjustable shoulder strap
6 x AA Batteries
Instruction Manual
