MAJOR-TECH - 500V/1000V/2.5KV/5KV Digital Insulation Tester, CAT IV 600V MT570

500V/1000V/2.5KV/5KV Digital Insulation Tester, CAT IV 600V

Insulation Test Voltages from 500V to 5000V
Microprocessor controlled with 2 lines x 16 characters intelligent display
Short circuit current up to 5mA
DAR Dielectric Absorption Ratio indication
PI Polarization Index indication
Measurement of AC and DC voltage up to 600V
Auto ranging on all insulation ranges
Adjustable test time from 1 minute to 30 minutes
Auto hold to freeze measurement readings
200 measurement results can be saved in memory and recalled onto the display
Visual and audible warning of external voltage greater than 30V AC and DC
Auto Power Off
Date and Time calendar

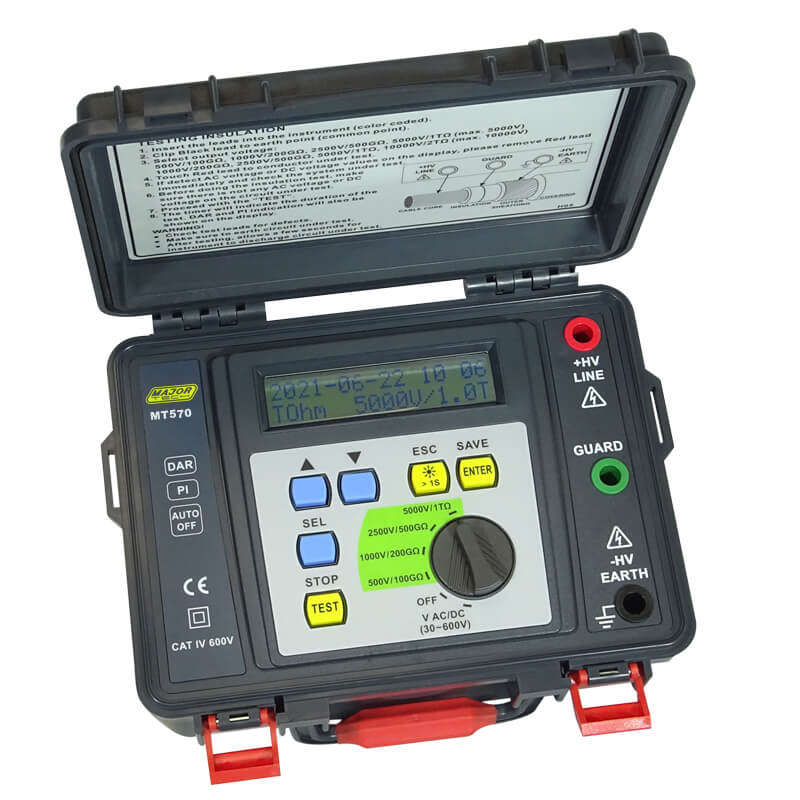

The MT570 is a 5kV High Voltage Insulation Tester with measurements from 500V DC to 5000V DC, and will automatically discharge the circuit after the test has been completed. Using the rotary selector switch, 4 preset ranges of 500V, 1000V, 2500V and 5000V can be selected, with an insulation resistance up to 1T. The microprocessor controlled MT570 has the capabilities of being a diagnostic tool and is intended for testing insulation on Rotating Machines, Transformers, Cables, High Voltage Generators, Electric Circuits and Surge Arrestors as the short circuit current output is up to 5mA. 200 test measurement results can be saved in the memory of the meter and recalled onto the LCD display. The large intelligent LCD display consists of 2 lines x 16 characters, indicating the reading of insulation, measuring time, output voltage and output current. The MT570 can measure AC and DC voltage up to 600V and is housed in a robust case ideal for extended field use, powered by 8 pieces "C" 1.5V batteries.

Accessories

Test Leads
Croc Clips
Carrying Case
Shoulder Strap
Batteries
Instruction Manual
