MAJOR-TECH - 5KV Digital Insulation Tester, CAT IV 300V K3125

5KV Digital Insulation Tester, CAT IV 300V

Wide Test Voltage from 250V to 5000V
Large LCD Display with bargraph and backlight
Polarization index measurement (PI)
Indication of output voltage and discharge voltage
Insulation resistance up to 1000G
Withstand Voltage test up to 5320V
Auto discharge function and voltage output warning
Measuring time up to 10 Hours
Live circuit warning symbols plus audible warning
2 Built-In Timers
Auto power off and battery check

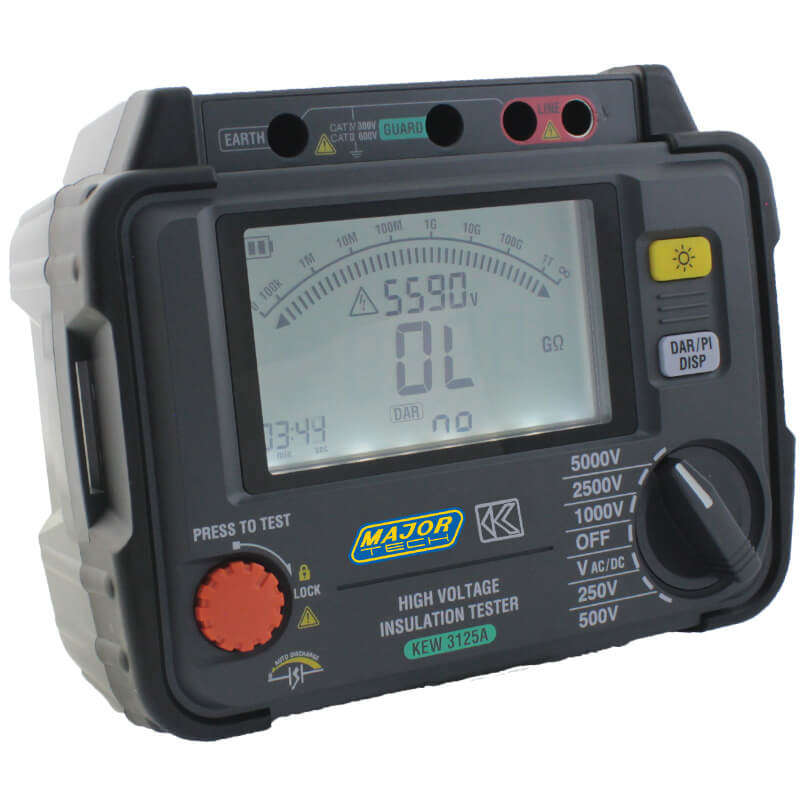

The K3125 is a 5kV High Voltage Digital Insulation Tester that is microprocessor controlled and is capable of performing tests from 250V up to 5000V, and will automatically discharge the circuit after the test has been completed. The meter is a battery powered instrument and operates on a simple and clear basis. The K3125 has the capabilities of being a diagnostic tool and is intended for testing insulation on Rotating Machines, Transformers, Cables, High Voltage Generators, Electrical Circuits and Surge Arresters. These readings are displayed on the large LCD display with a bargraph together with the actual output voltage thus making it easy for the user to read the results. Once the meter test is completed it will automatically discharge the apparatus under test and indicate the discharge voltage on the display while the meter is still on.

Accessories:
Carrying Case
C Batteries
3 x Test leads
Instruction manual
