MAJOR-TECH - 5KV Digital Insulation Tester, CAT IV 600V K3127

5KV Digital Insulation Tester, CAT IV 600V

Insulation Resistance up to 10T
Short-Circuit Current up to 5mA
Wide Test Voltage from 250V to 5000V
Diagnostic Insulation Tests: IR, PI, DAR, DD, SV, RAMP.
Wireless communication by Bluetooth for transferring and showing real-time data to PC and Android device.
Memory and Logging functions.
Filter function reduces noise interference.
Robust design for field use with IP65 (lid closed).
Powered by rechargeable battery.

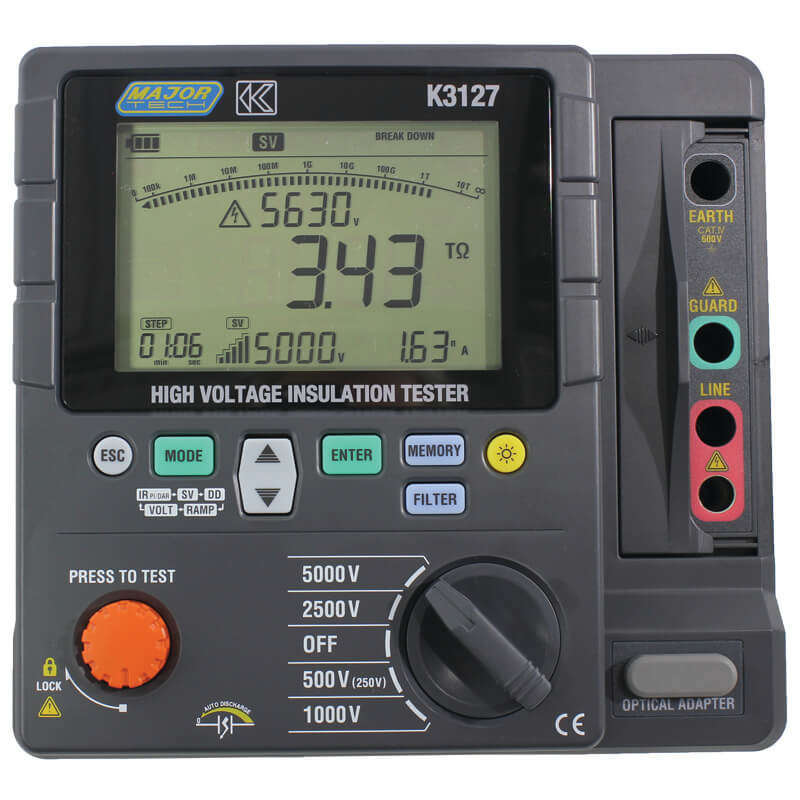

The K3127 is a 5kV High Voltage Digital Insulation Tester that is microprocessor controlled and is capable of performing tests from 250V up to 5000V, and will automatically discharge the circuit after the test has been completed. The meter is a battery powered instrument and operates on a simple and clear basis. Other features include Insulation Resistance 10T, Short-Circuit Current 5mA, IR, PI, DAR, DD, SV, RAMP. The K3127 has the capabilities of being a diagnostic tool and is intended for testing insulation on Rotating Machines, Transformers, Cables, High Voltage Generators, Electrical Circuits and Surge Arresters. These readings are displayed on the large LCD display with a bargraph together with the actual output voltage thus making it easy for the user to read the results. Once the meter test is completed it will automatically discharge the apparatus under test and indicate the discharge voltage on the display while the meter is still on.

Dimensions: 208 x 225 x 130mm
Weight: 8kg

Accessories:

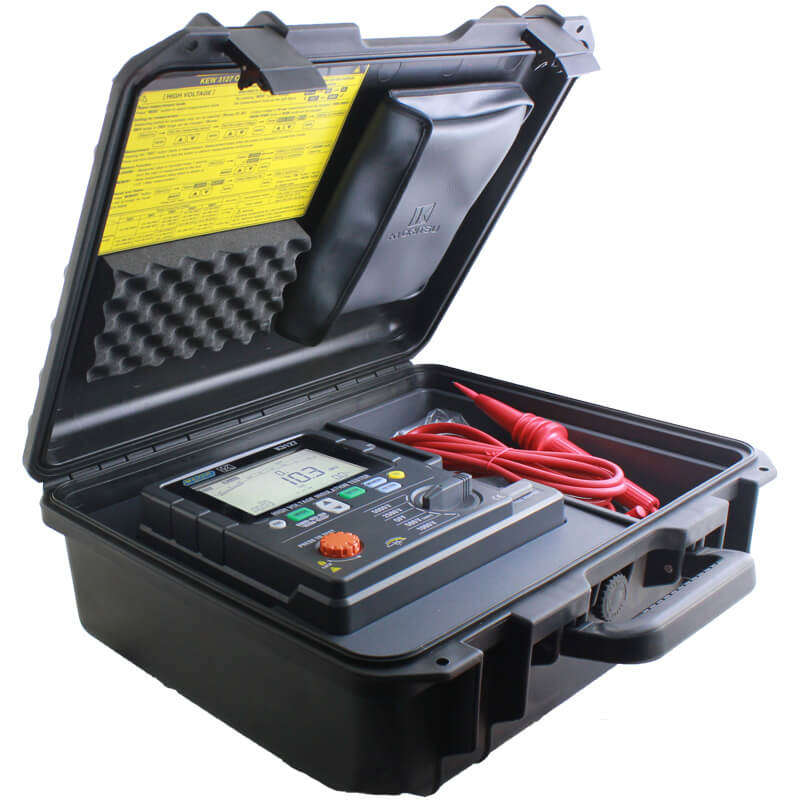

Carrying Case
12V Lead-Acid Battery
Test Leads
Instruction manual
Charger
COC
