MAJOR-TECH - 600A AC/DC TRMS BT Clamp Meter & Thermometer, CAT IV 600V MT767

600A AC/DC TRMS BT Clamp Meter & Thermometer, CAT IV 600V

Bluetooth
6000 count negative LCD display
Ø33mm Cable Clamp size
Measurement of DC voltage and AC voltage up to 1000V
AC and DC Current measurement to 600A
Capacitance to 99.99mF
Resistance 60M
Frequency 9.99kHz
K- Type Temperature measurement from -20C to 1000C
IR Temperature Spot Ratio 4:1 & measurement from -30C to 350C
Duty Cycle 20 80%
INRUSH Current Measurements
VFD Variable Frequency Drive voltage value
NCV Non-Contact Voltage Detector
Continuity buzzer and Diode Test
Built-In Flashlight
Max/Min
Data Hold function
Auto Power Off

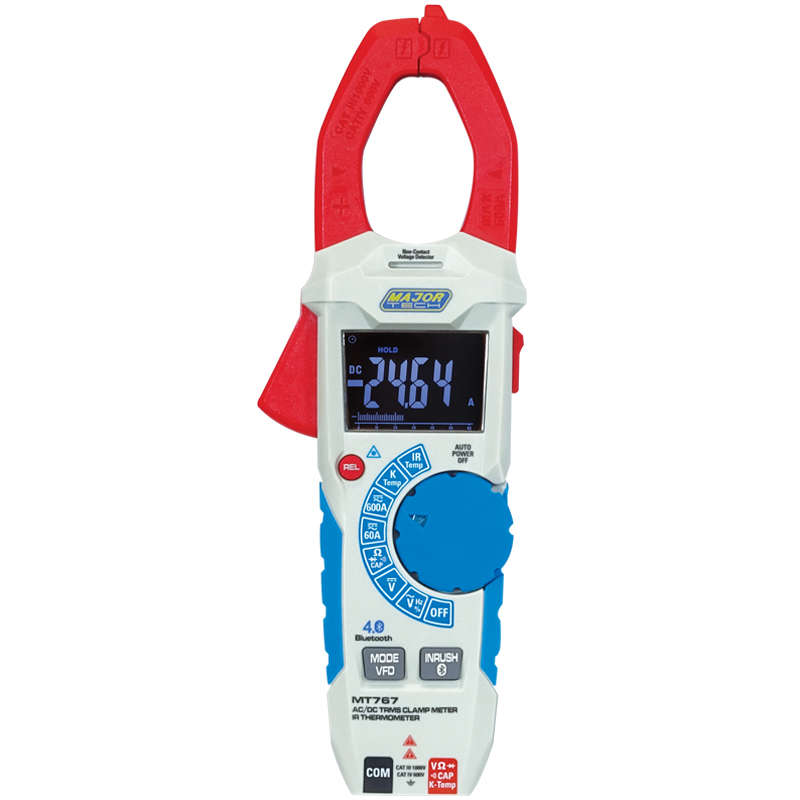

The MT767 is a 600A AC/DC Thermometer Clamp Meter with bluetooth technology. This clamp meter has a large 6000 count negative LCD display that provides fast sampling times and high accuracy measurements. The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organizing and sharing recordings. The meter measures 1000V AC/DC, frequency, capacitance and resistance measurements. The IR Thermometer has a spot ratio of 4:1 and measures temperature from -30C to +350C, plus there is a K-Type thermometer input for measurements up to 1000C. The 100ms Inrush current detects starting up currents of electric motors, input surge current, or switch-on surge currents, this is the maximum instantaneous input current drawn by an electrical device when first turned on. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives.

The added features or this 600A AC/DC Thermometer Clamp Meter include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, MAX/MIN and Data hold function plus a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing with a rugged design. This meter is a useful measuring tool for electricians, maintenance and HVAC environments.

Accessories:

Carrying Case
ComfiGrip Test Leads
K-type Probe
3 x AAA Batteries
Instruction Manual
