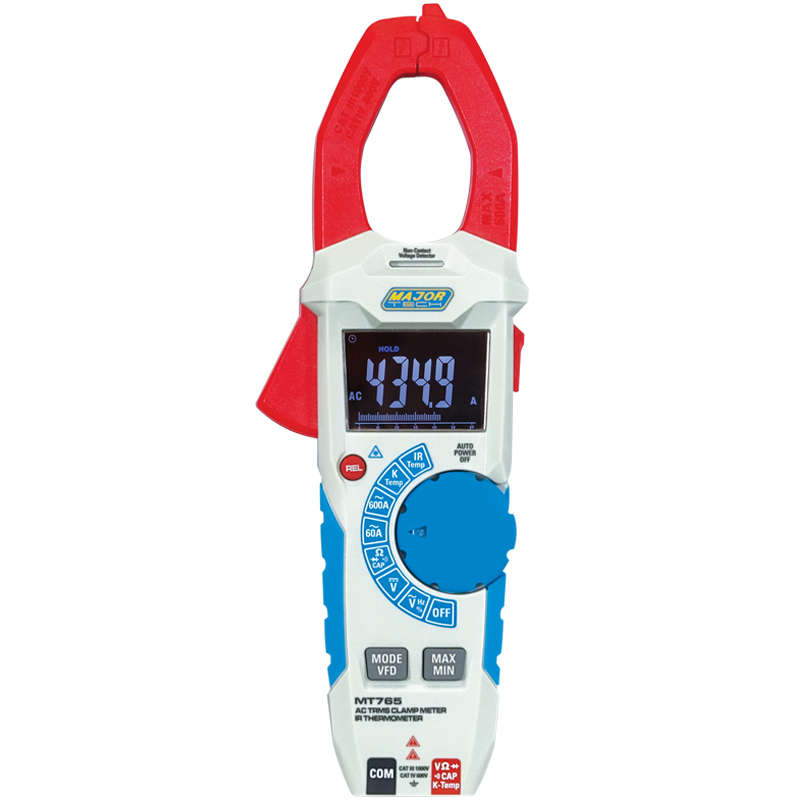

MAJOR-TECH - 600A AC TRMS Clamp Meter & Thermometer, CAT IV 600V MT765

600A AC TRMS Clamp Meter & Thermometer, CAT IV 600V

6000 count negative LCD display
Ø33mm Cable Clamp size
Measurement of DC voltage and AC voltage up to 1000V
Capacitance to 10mF
Temperature measurement from -20C to 1000C
IR Temperature Spot Ratio 4:1 & measurement from -30C to 350C
VFD Variable Frequency Drive voltage value
NCV Non-Contact Voltage Detector
Built-In Flashlight
Continuity buzzer and Diode Test
Max, Min and Data Hold function
Auto Power Off

The MT765 is a 600A AC Clamp Meter incorporating an Infrared Thermometer. This clamp meter has a large 6000 count negative LCD display that provides fast sampling times and high accuracy measurements. The IR Thermometer has a spot ratio of 4:1 and measures temperature from -30C to +350C, plus there is a K-Type thermometer input for measurements up to 1000C. The meter measures 1000V AC/DC, frequency, capacitance and resistance measurements. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Relative Mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing with a rugged design. This meter is a useful measuring tool for electricians, maintenance and HVAC environments.

Accessories:

Carrying Case
ComfiGrip Test Leads
K-type Probe
3 x AAA Batteries
Instruction Manual
