600V AC/DC IP67 TRMS Bluetooth Multimeter, CAT III 600V
4000 count with 41 Segment Bargraph
Measures AC and DC voltage up to 600V
Temperature measurement from -18C to 760C
Capacitance to 4000F
Frequency to 10MHz
Duty Cycle
Min, Max and Data Hold
Auto Power Off
LED Flashlight
IP67 Dust & Waterproof
LCD Back Light

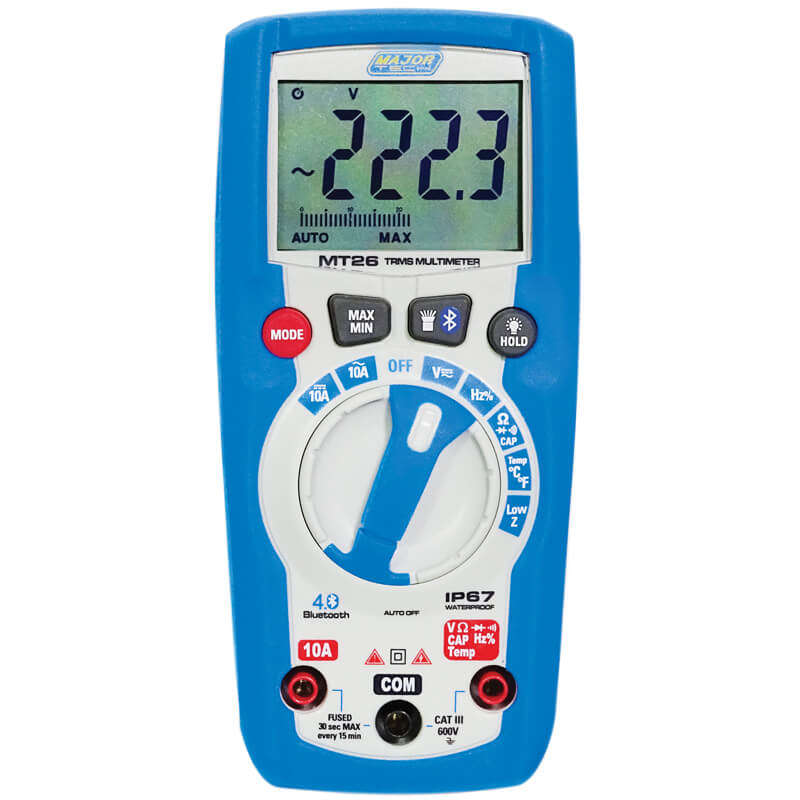

The MT26 is a 600V AC/DC True RMS Bluetooth Multimeter offering measurements of AC and DC voltage, AC and DC current, frequency, capacitance, resistance and temperature. The meter has a large 4000 count backlit LCD with the added advantage of an analogue bar graph. The Low Z function has a low pass filter to eliminate errors caused by "Ghost" voltages. There is a built-in LED flashlight for dimly lit areas and a tilt stand. The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organising and sharing recordings. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating.
Accessories:
Soft Carrying Case
Test leads
Temperature Probe
Instruction Manual
3 x AAA Batteries
Downloads
Additional information
DC Voltage
400mV 600V
DC Voltage Resolution
1V
DC Voltage Accuracy
±(1.0% + 3 Digits)
Low Z DC Voltage
400mV 400V
Low Z DC Voltage Resolution
0.1V
Low Z DC Voltage Accuracy
±(1.5% + 5 Digits)
AC Voltage
4.000V 600V
AC Voltage Resolution
1V
AC Voltage Accuracy
±(1.5% + 5 Digits)
Low Z AC Voltage
4V 400V
Low Z AC Voltage Resolution
0.1V
Low Z AC Voltage Accuracy
±(1.5% + 5 Digits)
DC Current
4A 10A
DC Current Resolution
10mA
DC Current Accuracy
±(2.0% + 3 Digits)
AC Current
4A 10A
AC Current Resolution
10mA
AC Current Accuracy
±(2.5% + 3 Digits)
Resistance
400 40M
Resistance Resolution
10k
Resistance Accuracy
±(1.5% + 5 Digits)
Capacitance
40nF -4000µF
Capacitance Resolution
1µF
Capacitance Accuracy
±(3.0% + 5 Digits)
Frequency
9.999Hz 9.999MHz
Frequency Resolution
1kHz
Frequency Accuracy
±(1.0% + 5 Digits)
Temperature
-18°C 760°C
Temperature Resolution
0.1°C
Temperature Accuracy
±(2.0% + 5°C)
Duty Cycle
1% 99.9%
Duty Cycle Resolution
0.1%
Duty Cycle Accuracy
±(1.2% + 2 Digits)
AC Response
True RMS
Digital Display
4000 Count
Continuity Test
Audible signal if the resistance is approx. 50 or less
Diode Test
Test current 1.5mA typical, open circuit voltage 3V DC typical
Bluetooth
Bluetooth 4.0 Technology
Data Hold
Yes
Back Light
Yes
Enclosure
IP67 Dust & Waterproof Double Moulded
Batteries
3 x AAA
Dimensions
147 x 68 x 50mm
Weight
318g
