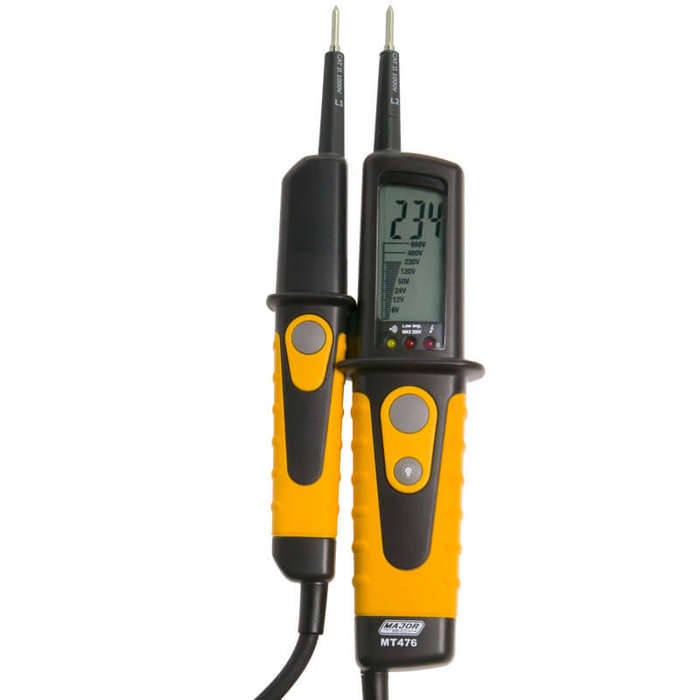

MAJOR-TECH - 690V AC/DC LCD Voltage Tester, CAT IV 600V MT476

690V AC/DC LCD Voltage Tester, CAT IV 600V

AC & DC Voltage detection from 6V to 690V
Phase Rotation
2000 Count LCD display
Double Injection IP64 housing
Low Impedance test
Built-in Flashlight
Polarity Detection
Rotary Field indication
Continuity test to 400k

The MT476 is a 690V AC/DC Voltage Tester and is designed to meet electrician's requirements for a multitude of applications. The tester operates without a switch and by simply placing the probes onto the circuit under test, the meter automatically turns on and displays the voltage on a 2000 count display and quick indication can be viewed on the analogue bargraph. The MT476 incorporates a Low Impedance Test, which induces a basic load of approximately 6k at 690 volts. The voltage tester can show the direction of the rotating field with three-phase systems. The applied voltage and the rotating field direction is shown on the LCD display, with corresponding rotating field direction L = anticlockwise and R = clockwise. The tester can be used as a Single Pole phase tester and measure continuity up to 400k plus RCD Test. The MT476 meets the CAT IV 600V and CAT III 1000V safety standards.

Accessories:
AAA Batteries
Instruction manual
