Product details

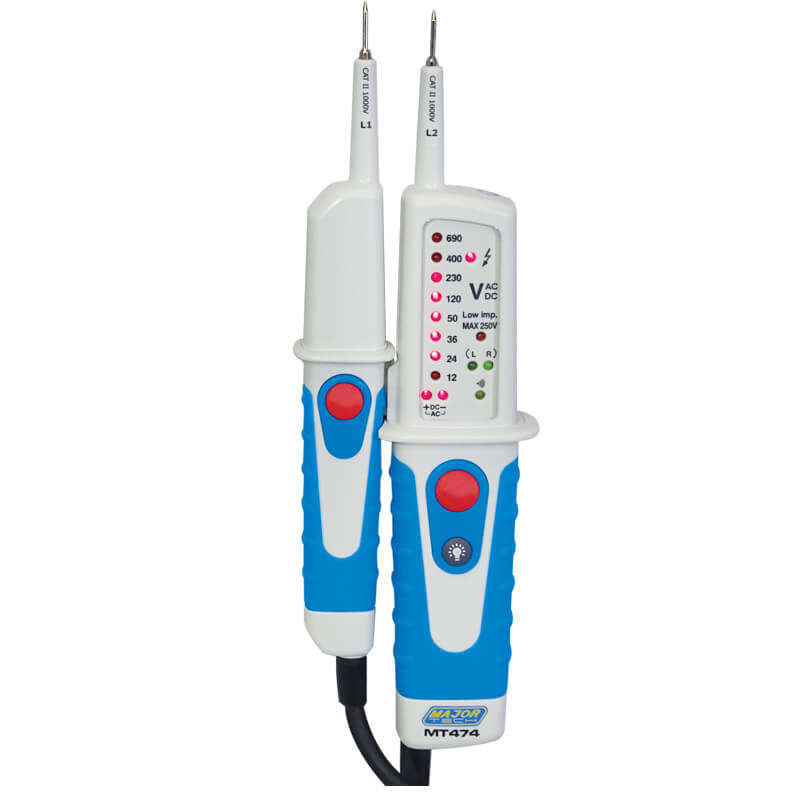

690V AC/DC LED Voltage Tester, CAT IV 600V
CAT IV 600V and CAT III 1000V
IP64 waterproof housing
AC and DC Voltage 690V
Rotary Field 690V AC
RCD Test 30mA
Continuity test to 200k
Phase Rotation
LED display
Single pole phase test set
Low Impedance test
Built-in Flashlight
Polarity Detection
Rotary Field indication
The MT474 is IP64 and is a useful tester designed to meet electrician's requirements for a multitude of applications. The tester displays the voltage on red LED's which increment as the voltage increases. There is an LED indication for polarity when DCV is measured. No switching of the meter on as the tester automatically turns on when voltage is applied to the two test probes. The MT474 incorporates a Low Impedance Test, which induces a basic load of approximately 6k at 690 volts. The voltage tester can show the direction of the rotating field with three-phase systems, with the direction of field shown as L = anticlockwise and R = clockwise. The tester can be used as a Single Pole phase tester and measure continuity up to 200k. The MT474 meets the CAT IV 600V and CAT III 1000V safety standards
Accessories:
Test probe covers for CAT IV 600V
2 x AAA Batteries
Instruction Manual
