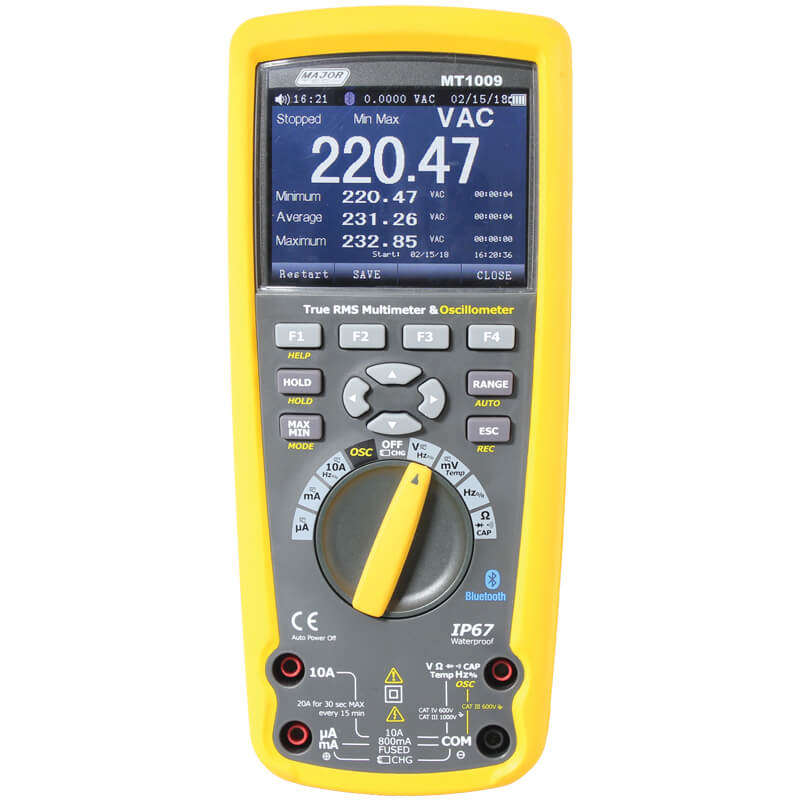

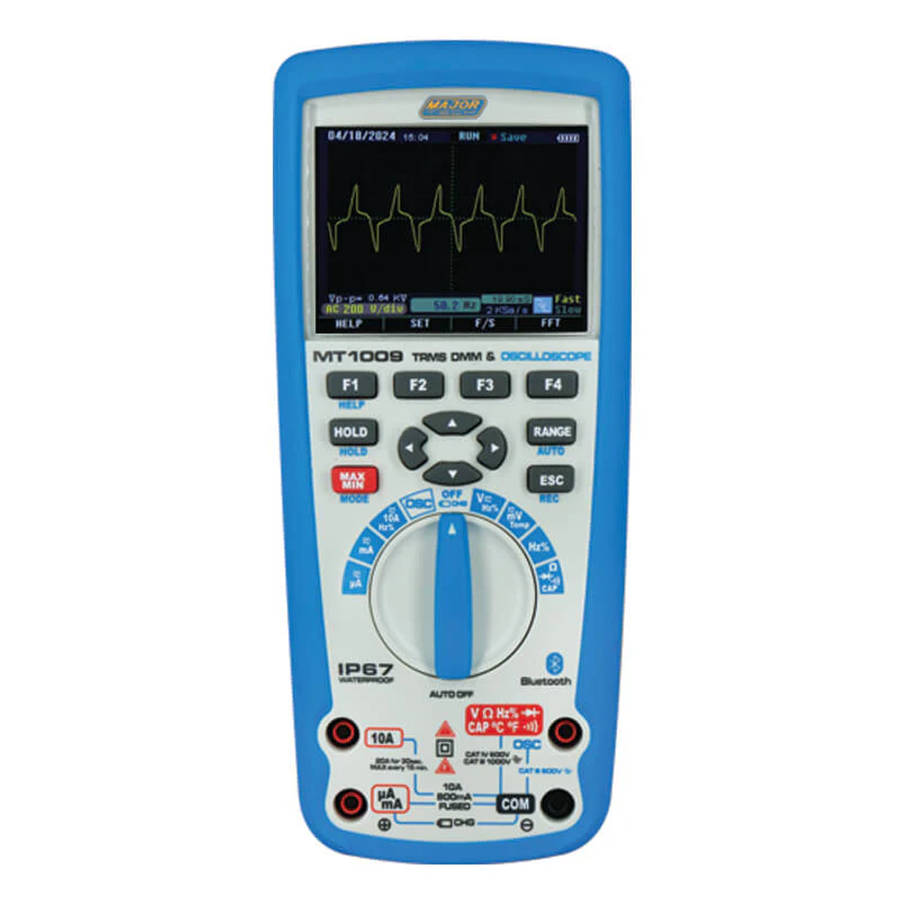

MAJOR-TECH - Bluetooth IP67 Oscilloscope & TRMS Multimeter MT1009

Bluetooth IP67 Oscilloscope & TRMS Multimeter

Large 50 000 Count 320 x 240 TFT colour LCD display/ Low pass filter/ IP67 Rating
10MHz / 50MS/s Bandwidth/ Real time sample rate
Logging function with Trend Capture for easy review of logged data
Bluetooth PC interface for easy data transfer & accuracy calibration
100kHz Bandwidth (voltage/current)
Temperature measurement from -50°C to 1000°C
AC, AC+ DC, True RMS measurements
Peak capture (records transients as fast as 250s)
Min/Max/Average with Time stamp (records signal fluctuations)
Motor winding and low ohm (500) measurement range
The Meterbox software supports bluetooth products transferring the measured data to the customers' smart phone

The MT1009 Oscilloscope and True RMS Multimeter has a fast sampling time, built-in data logging and Trend Capture features, plus it includes a 10MHz oscilloscope displayed on a colour screen. Using Bluetooth technology the captured data can be transferred to a computer for analysis of the datasheets. The oscilloscope function has a 10MHz bandwidth with a 50MS/s Real Time sample rate and cursors to assist the user with zoom in measurements all displayed on a colour TFT display. With TFT colour display, this meter enables the user to trace and identify problems on equipment, and with the data logging & Trend Capture functions, it can be utilised as a standalone unit to log events. The meter is housed in a double moulded rubber casing with an IP67 waterproof design..

Accessories:
Carrying Case
Temperature Probe
Battery Pack
Test Leads
Instruction Manual
Charger
Software
USB Cable
1 x Scope Probe
