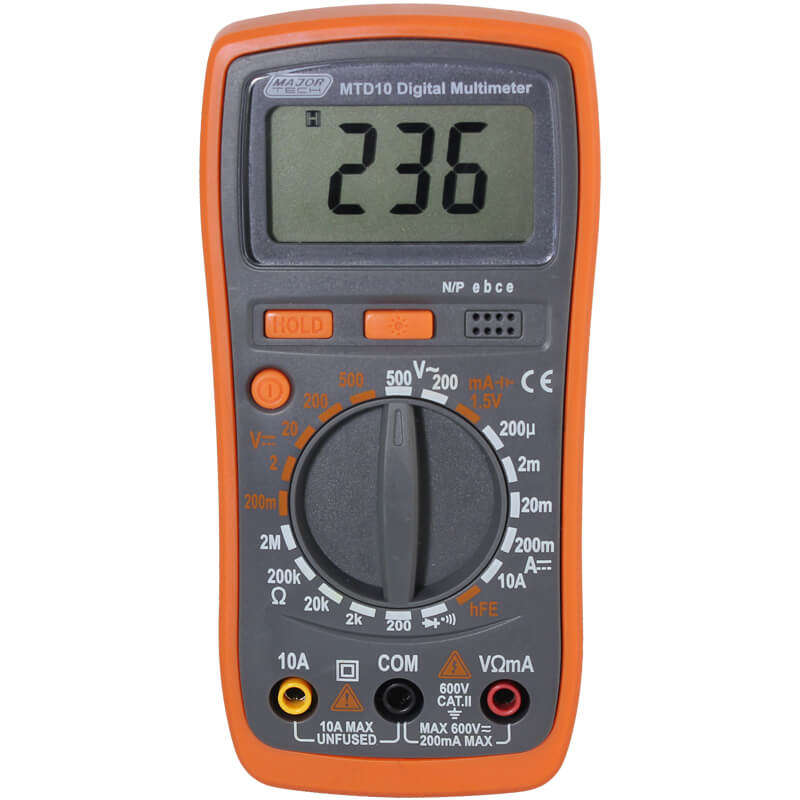

The MTD10 DIY Digital Multi meter is a completely portable 3 ½ digital multi meter designed for use by a student and hobbyist. Equipped with 8 functions and 21 ranges, each test position is quickly and easily selected with a simple turn of the single selector switch.
Features:
- 8 Functions & 21 Versatile ranges
- 3 Inch Digital LCD screen
- DC V: 200mV-2V-20V-200V-500V
- AC V: 200V-500V
- DC A: 200?A-2mA-20mA-200mA-10A
- Resistance: 200OHMS-2kOHMS-20kOHMS-200kOHMS-2MOHMS
- Transistor Test for NPN and PNP transistors
- Diode Check, Continuity, Data Hold
- 1.5V Battery Test
- Backlight
- Overload Protection
- Includes rubber holster & test leads
Accessories:
- Includes rubber holster & test leads
Additional Information:
Data Hold: Yes
Power source: 9V Alkaline / Carbon-zine
Over-range indication: Yes
Diode Test: Yes
Digital Display: 3 ½ Digital LCD 1999 max
DC Voltage: 200mV uF 2V uF 20V uF 200V uF 500V
DC Current: 200uA-2mA-20mA-200mA-10A
Built-in buzzer: Yes
Continuity: Yes
Battery test: 1.5V
Battery Life: 100 Hrs carbon-zine
Back Light: Yes
AC Voltage: 200V-500V
Resistance: 200OHMS-2kOHMS-20kOHMS-200kOHMS-2MOHMS
Fuse: F 200mA/250V
Weight: 195g
Dimensions: 144 (h) x 71(w) x 32(d) mm
What is in the box:
1x MTD10 Compact Digital Multimeter
Rubber Holster
Test Leads
Instruction Manual
What's in the box
1x MTD10 Compact Digital Multimeter
Rubber Holster
Test Leads
Instruction Manual
