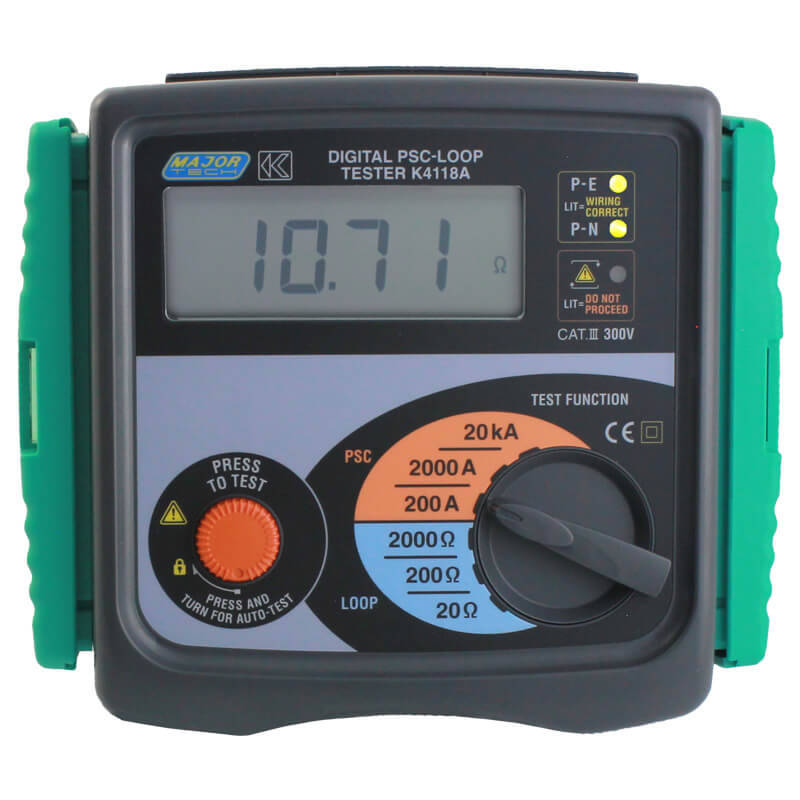

MAJOR-TECH - Digital Loop & PSC / PFC Tester, CAT III 300V K4118

Digital Loop & PSC / PFC Tester, CAT III 300V

Microprocessor controlled for accuracy and reliability
Automatic Lock-Out if Test Resistor Overheats
Direct readout of Prospective Short Circuit Current and Earth Fault Current
Lock Down Test Button for Continuous use
Measures low loop impedance of 0.01
3 LED's for checking correct wiring status
Safe voltage measurement function
Visual indication of reversed phase and neutral wiring at socket
External earth probe option
Displays mains voltage
Supplied with distribution board test leads
IP54 Dust & Drip Proof
The K4118 is a Loop Impedance and PSC Tester that is microprocessor controlled and includes useful features such as mains voltage measurements, neon indication of current wiring status and a lock down test button for hands-free operation. An added feature is a 200 ohm earth electrode resistance test range to check that the earth electrodes comply with the IEC wiring regulations. The K4118 Digital Earth Loop Impedance Tester is the most technologically advanced meter of such instruments available and is designed to comply with IEC 61557-1 regulations. This instrument offers convenient and accurate measurements of Earth Loop Impedance at the origin (Ze) and at various points throughout the electrical installation (Zs).

Accessories:
Pouch for leads
Test leads
Instruction manual
COC
