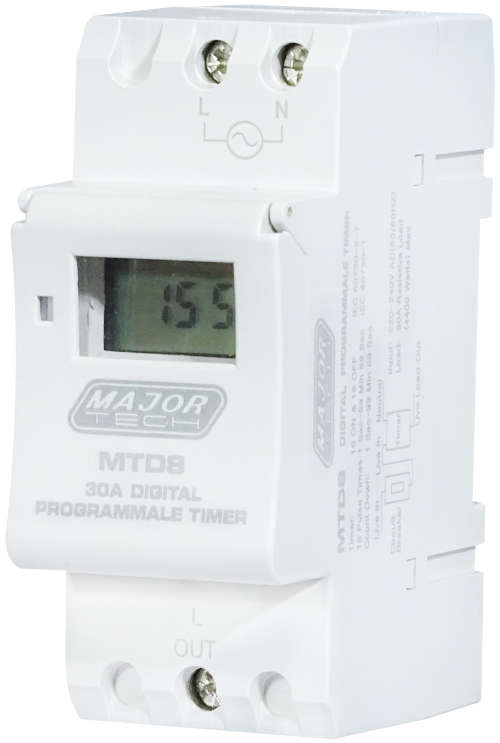

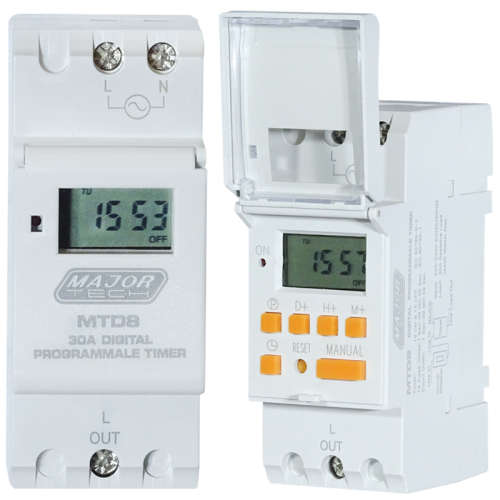

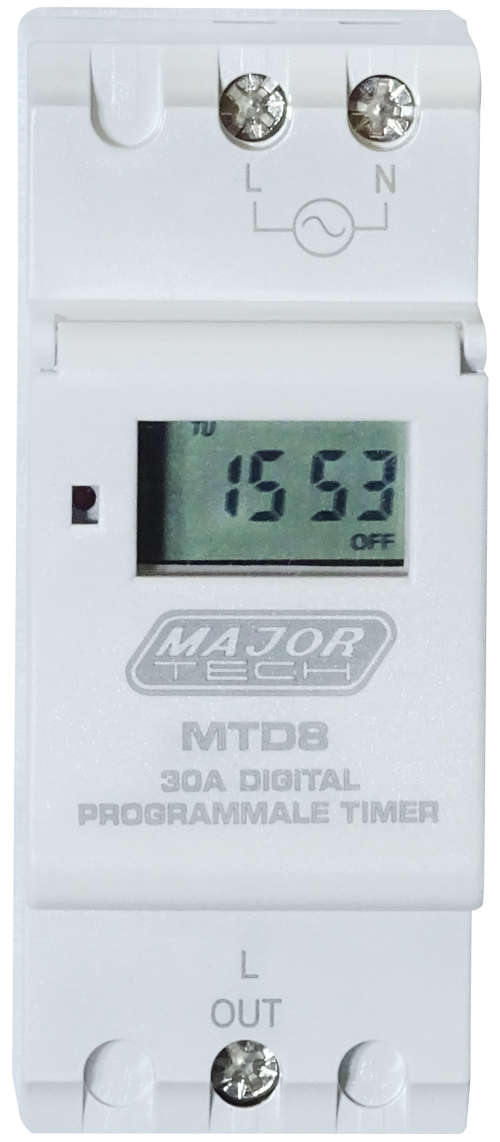

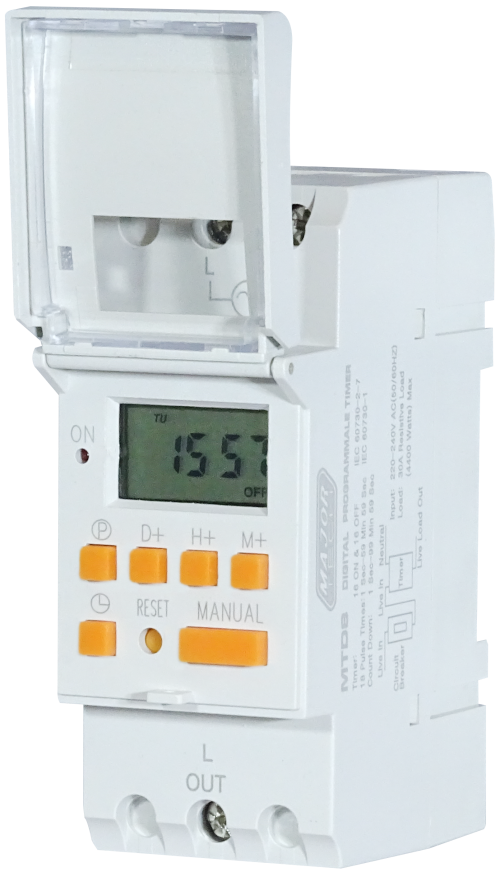

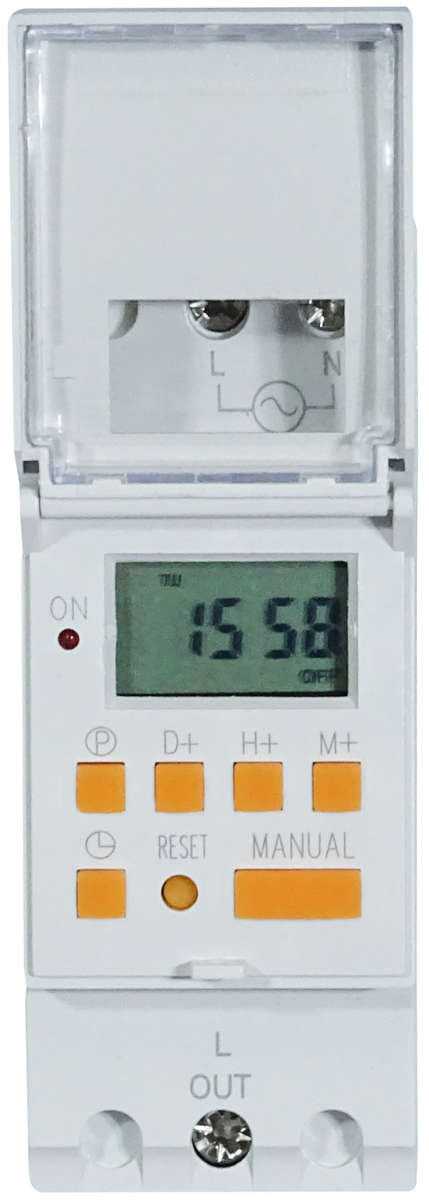

The MTD8 is a 30A 16 On/Off Digital Programmable Timer that is easy-to-use, quick to set and will maximize your savings. When installing the MTD8 for the first time, press the reset button to activate the timer.
The introduction of a timer will improve your energy savings up to 66%. Switching the geyser off/on manually is not good practice as circuit breakers are not designed to be switched often and will eventually damage which can be costly to replace.
Note: Press Reset Button to activate timer (Only required when first installed).
Features :
Din Rail Mounted
Advanced weekly settings
Repeat programs with 16 On/Off settings, 18 pulse settings, and a manual On/Off switch
Lithium battery back up in the event of a power failure (Loadshedding will reduce the lifespan of the battery)
Countdown Mode: Manual timer control
Pulse Control: For applications like Bells & Sirens
Manual button changes between Manual On/Off , On Auto and Auto Off
Terminology: On (Always On), Off (Always Off), Auto On (Timer remains On until the next Off programmed setting) / Auto Off (Timer remains Off until next programmed On setting and turns Off as per programmed Off settings)
Auto Off - Automatically turns the timer On and Off as per the programmed settings
While programming any function, 30 seconds of inactivity will exit all setting menu
Additional Information:
Voltage Rating: 220V 240V AC 50/60Hz
Voltage Limit: ±10%
Resistive Loads (Max): 30A (4400W)
Minimum Interval: 1 minute
Countdown Interval: 1 second 99 minutes & 59 seconds
18 Pulse Intervals: 1 second 59 minutes & 59 seconds
Ambient temperature: -10°C ~ 40°C
Ambient Humidity: 35%RH ~ 85%RH
Weight: 150g
Certification: IEC60730-1, IEC60730-2-7
What's in the box
- 1 x MTD8 Timer
- 1 x Instruction Manual
