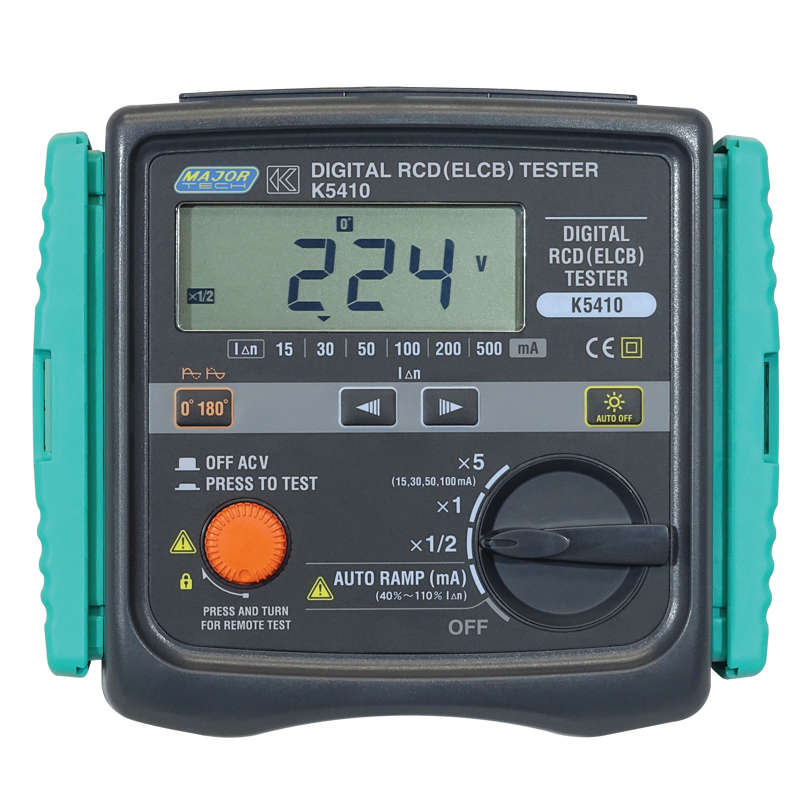

MAJOR-TECH - Digital RCD (ELCB) Tester, CAT III 300V K5410

Digital RCD (ELCB) Tester, CAT III 300V

Microprocessor controlled
Operating voltage 80V 450V L-E
Auto Ramp
0° or 180° Phase angle selection
Rated current 10mA 500mA
Automatically measures trip current
Remote testing
IP54 Dust & Drip Proof
K5410IS Intrinsically Safe Version
The K5410 is a Industrial Digital RCD/ELCB Tester that is Microprocessor controlled designed to operate on 550V, 380V and 220V systems, or circuits with a maximum of 450V AC (L-E). The K5410 measures trip current by varying the current automatically. A great feature is remote testing which enables the user to hold the test leads with both hands by locking the test button; measurement will automatically start when the main voltage is detected. The K5410 detects the voltage to Earth electrodes or Protective conductors during RCD test, when applying test currents, at measurement using Earth in order to prevent electrical shocks cause by the damaged earth. Measurement will cease at 50V AC or more. Ideally suited for Mining and Industrial use. The K5410IS is available on request.

Accessories:

Pouch for leads
AA Batteries
1 x Test Leads
Instruction Manual
Strap Belt
1 x (red & Black cords)
1 x Test Lead with Alligator clips
