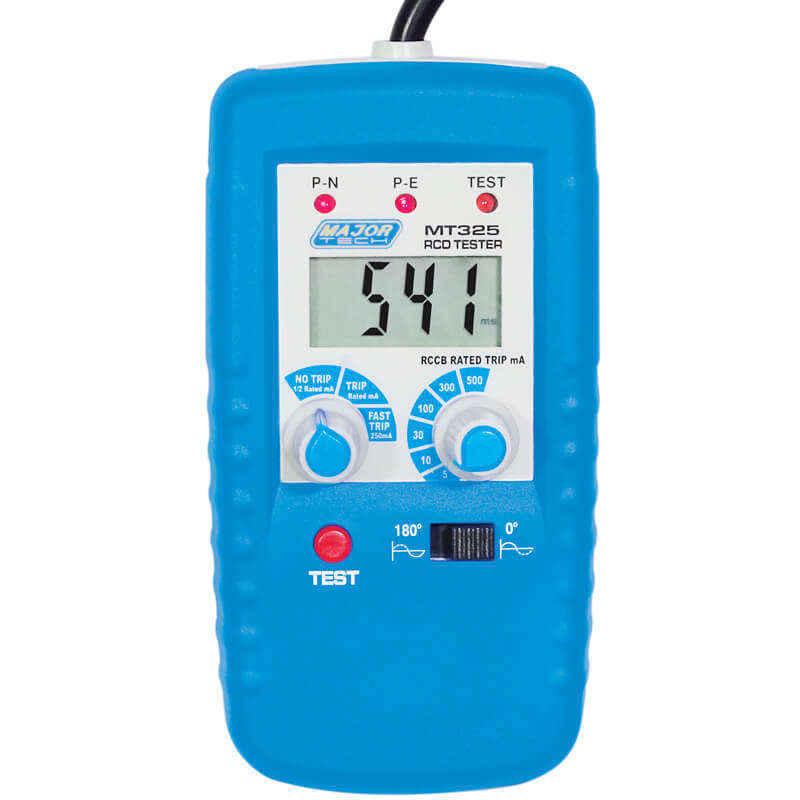

Major Tech Digital RCD/ELCB Tester (MT325)

The compact MT325 is a lightweight and easy to use ELCB Tester that operates on 216V AC 264V AC circuits while offering high accuracy measurements. Features include pre-programmed tripping current ranges for speed of use, with direct readout of disconnection time with a resolution of 1ms, neon indication of correct wiring status. Consistent results are obtained with the 0° and 180° phase angle select switch, thus eliminating the need for repeat tests.

Features:

• Double injection housing
• Correct wiring indication
• 2000ms Direct readout of disconnection time
• Fully programmed test current settings
• Accurate readout of tripping time with a resolution of 1ms
• Two LED lamps give quick check for correct wiring
• Compact, lightweight and simple to use
• 0° or 180° Phase angle selection
• Current setting from 5mA to 500mA
• Operating voltage 216V AC 264V AC
• Data Hold function to freeze the digital trip time on the LCD

Specifications:
