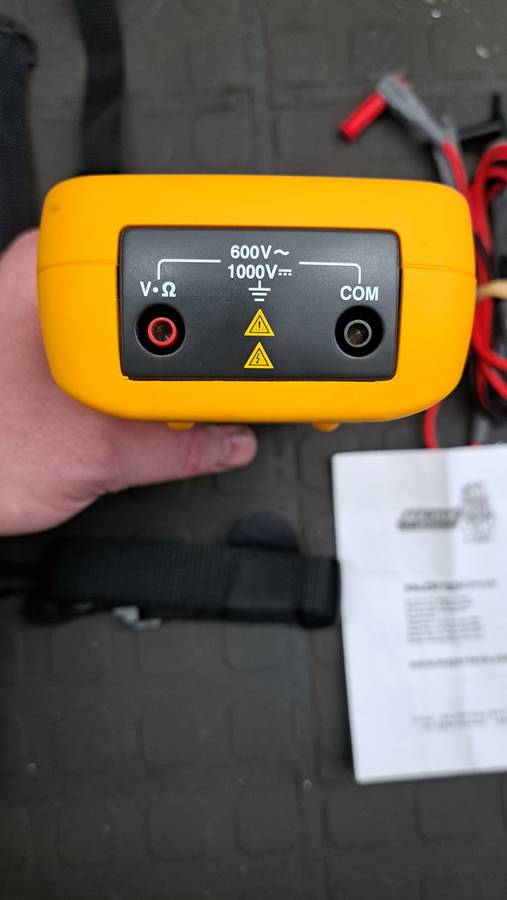

Major Tech MT500 Analogue Insulation Tester

Major Tech MT500 Analogue Insulation Tester

BRAND NEW
WITH FULL FACTORY WARRANTY.
NEVER BEEN USED.
WAS A DISPLAY UNIT.

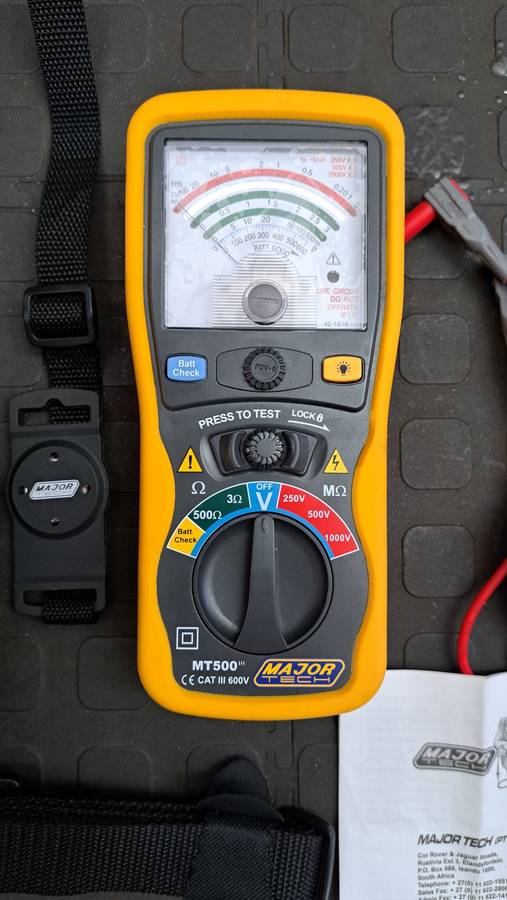

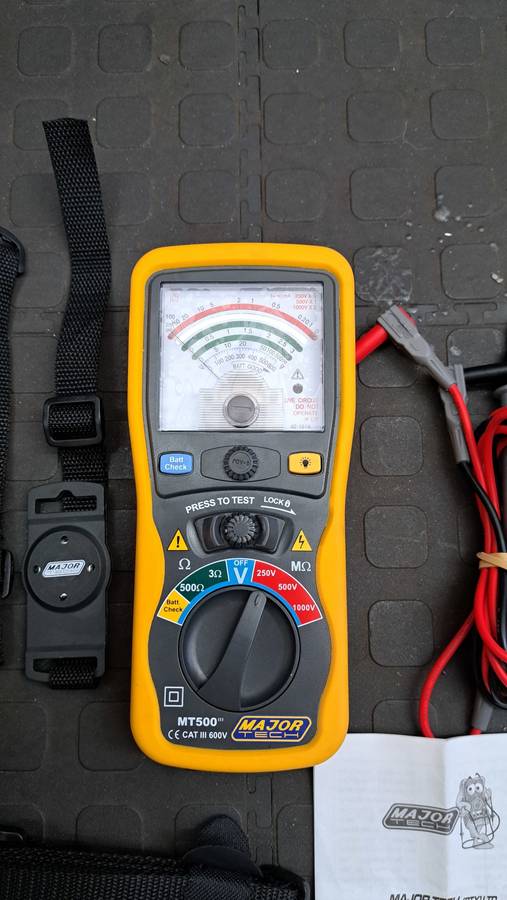

The MT500 is a 1000V Analogue Insulation Tester rugged, compact and easy to use Insulation and Continuity Tester. The instrument offers three insulation test ranges: 250V, 500V and 1000V, a 3? continuity range and a 500? resistance range. This meter is not only equipped with a Live Circuit Warning but also displays the actual AC voltage measurements of the mains supply. The scale has a backlight which is ideal when working in dimly lit environments.

Features :

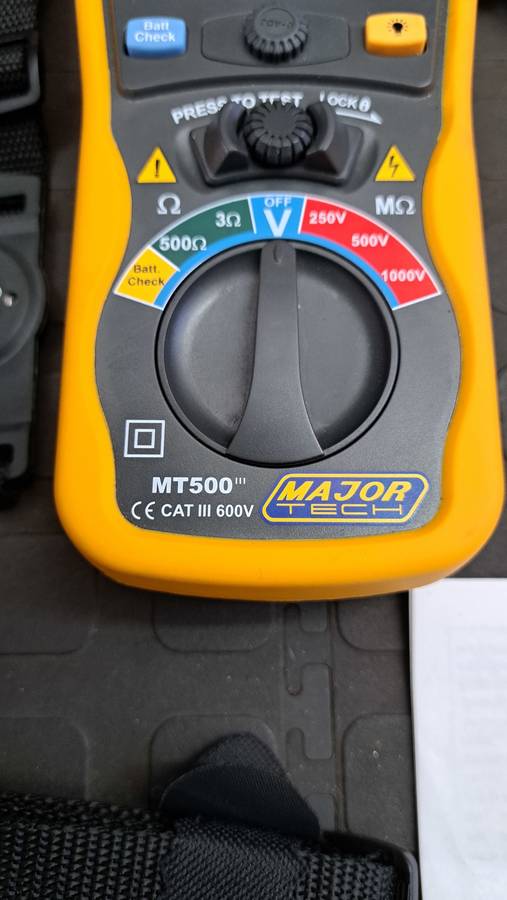

Three test ranges 250V-500V-1000V
600V AC voltage range
Live Circuit warning and buzzer
Data Hold function
1mA output current on insulation test
200mA short circuit on continuity range
Automatic discharge after test
Front panel zero adjustment for test lead resistance
Lock down Test Button for continuous use
Hands free strap and magnet supplied as standard accessories
Rubber overmould housing
Illuminated display

ADDITIONAL INFORMATION:
Insulation resistance 250V: 250V
Insulation resolution 250V: 100M?
Insulation accuracy 250V: ±(5%)
Insulation resistance 500V: 500V
Insulation resolution 500V: 200M?
Insulation accuracy 500V: ±(5%)
Insulation resistance 1000V: 1000V
Insulation resolution 1000V: 400M?
Insulation accuracy 1000V: ±(5%)
Short Circuit Current: 1.3mA
AC Voltage: 600V
AC Voltage resolution: 20V
AC voltage accuracy: ±(3%)
Resistance: 3? 500?
Resistance resolution: 0.05?
Resistance accuracy; ±( 3%)
Continuity: Yes
Auto discharge: Yes
AC Bandwidth: 40Hz 400Hz
Digital Display: Analogue Display
Over-range indication: Yes
Input Impedance: ?1.2M? VAC
Data Hold: Yes
Back Light: Yes
Enclosure: Double moulded
Low battery indication: Yes
Power Supply: 6 x 1.5V AA
Weight: 700g
Dimensions; 200 x 92 x 50mm
Safety Specs: IEC61010-1 CAT IV 600V

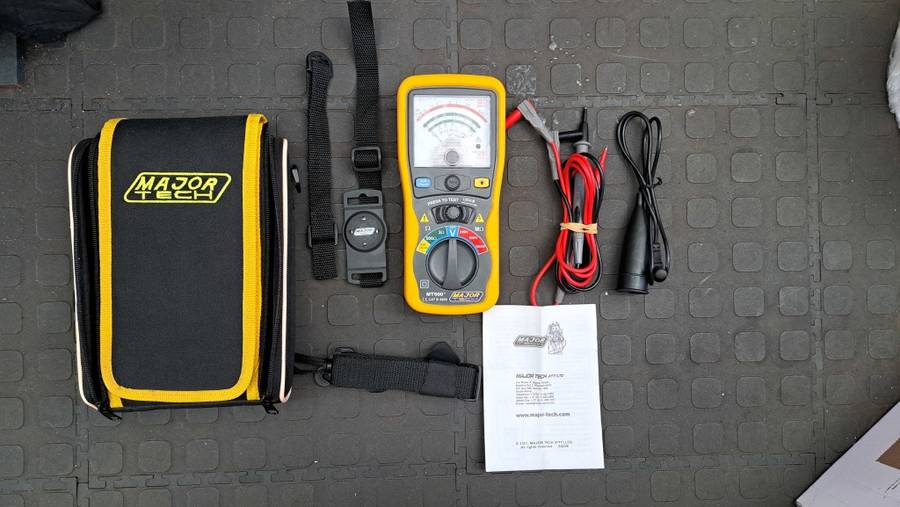

What's in the box
1x MT500 Insulation teter

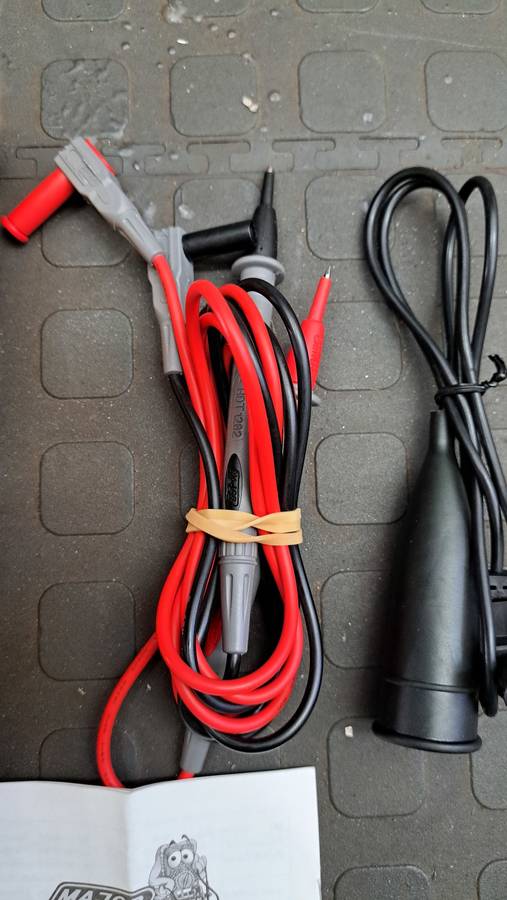

1 Set of Test Leads
1x Black Crock Lead

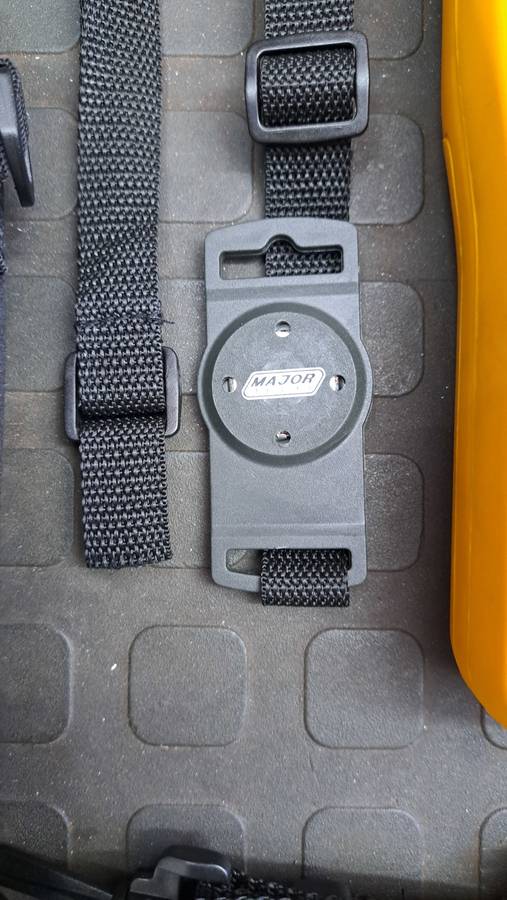

1x Magnetic Strip

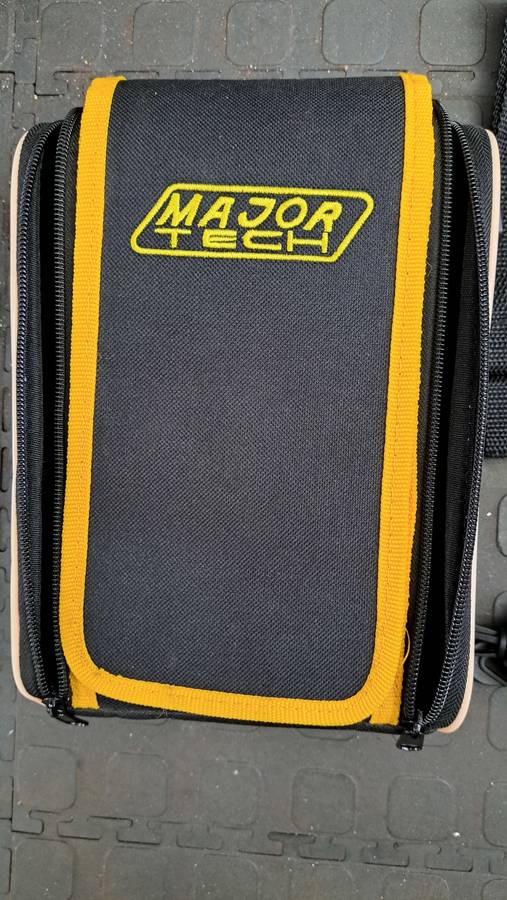

1x Carrying Case
1x Adjustable shoulder strap
6 x AA Batteries
1x Instruction Manual
