MAJOR-TECH - Power Quality Analyser Set, CAT IV 300V K6315-03

Power Quality Analyser Set, CAT IV 300V

The perfect tool for energy saving and power quality control
Simultaneous Power & Power quality measurements Power/ Harmonics/ Waveform/ Power quality are recorded at all CHs. (Voltage: 3ch, Current 4ch)
Helpful support functions Quick Start Guide, Wiring check and Sensor detection for easy and reliable measurement
Measurement with high accuracy Guaranteed accuracy: ±0.3%rdg (energy), ±0.2%rdg (voltage/ current) Complies with the International Standard IEC 61000-4-30 Class S and the European Standard EN50160
Remote monitoring on PC and Android device
Remote checking of measurement in real-time is possible via Bluetooth communication
Recorded data can be saved in the supplied SD card
EN50160 report can be generated after survey by PC software
Various Clamp Current Sensors Various types of clamp and flexible sensors are available: from 1000mA Range up to 3000A Range and Earth leakage measurements
Energy consumption check on site Trend and demand graphs for easy recognition. TFT color display with high resolution
CAT IV 300V, CAT III 600V & CAT II 1000V
Easy-to-use settings that simultaneous record of power & power quality measurements in one survey. Major Tech's Power Quality Analyser are the perfect tools for measuring energy and power control. The K6315-03 measures Voltage, Current, Frequency, Active power, Reactive power, Apparent power , Active energy, Reactive energy, Apparent energy, Power factor (cos), Neutral current, Demand, Harmonics, Quality (Swell/Dip/Interruption/Transients/Over voltage, Inrush, Unbalanced rate), Capacitance calculation for PF correction unit, Flicker.

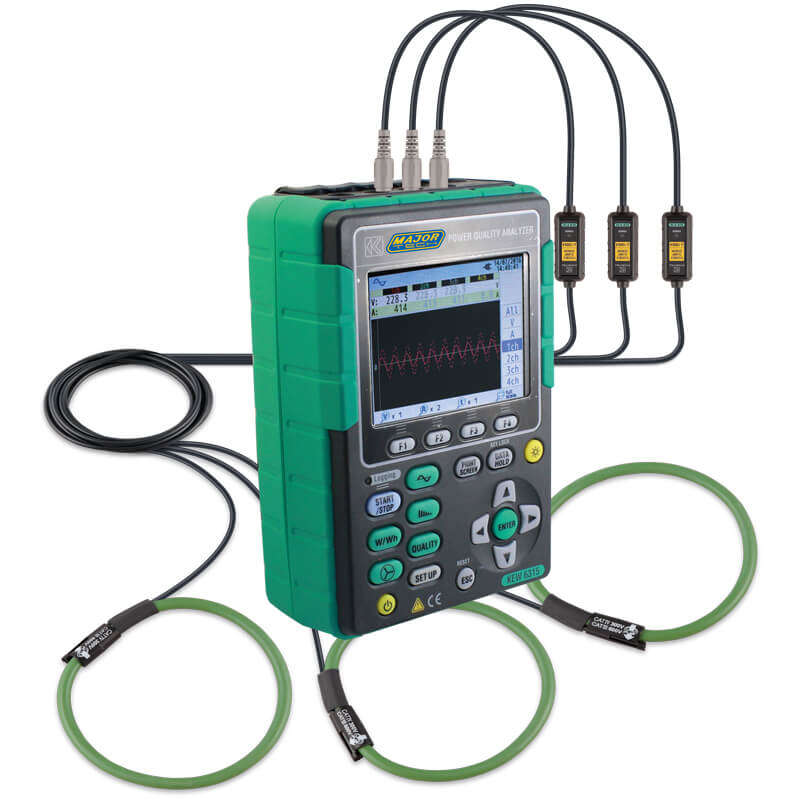

K6315-03 is supplied as a set complete with the K8130 Flexible Load Current Clamp Sensors

Accessories:
Carrying case
AA Batteries
Test leads
Instruction manual
Charger
Software
USB Cable
2GB SD Card
COC
