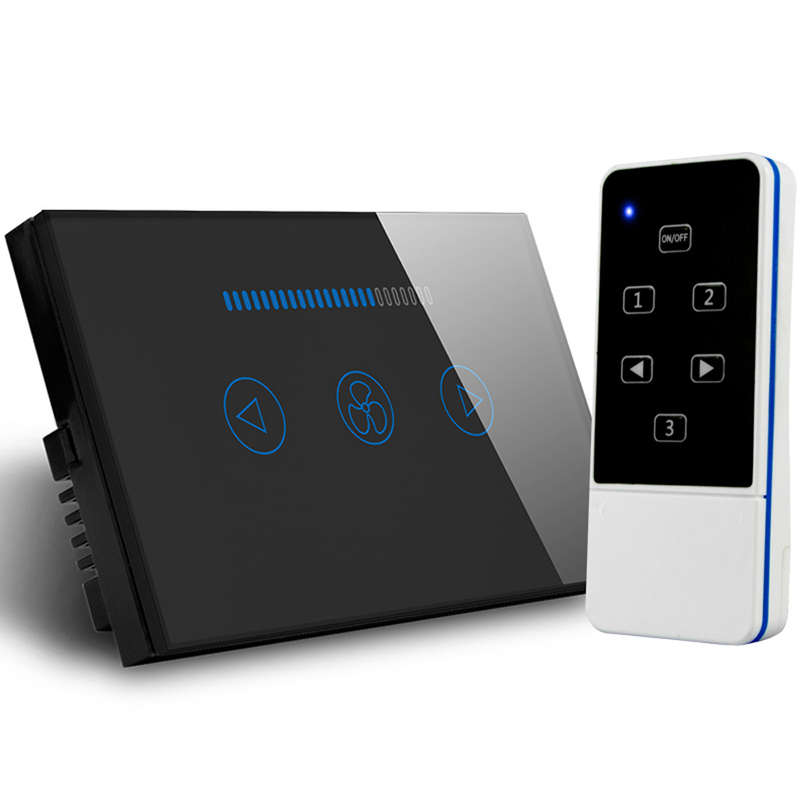

MAKEGOOD 600W 220V US Remote Control Ceiling Fan Switch Crystal Glass Panel Wirel... (COLOR.: BLACK)

SELECTED OPTION:
COLOR.: BLACK

Description:

US regulations: use type 118 standard cassette (bottom box)
Model: MG-US F01

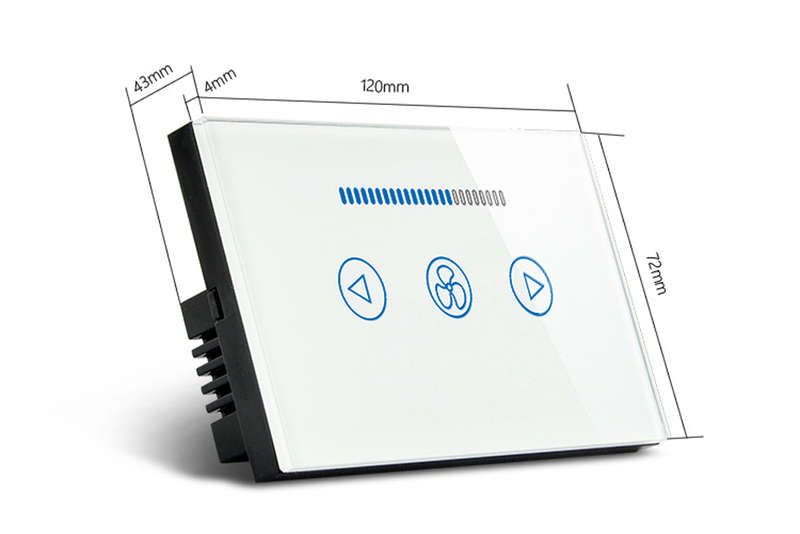

Size: length 120mm * width 72mm * height 43mm
Color: white, black
Panel: High-grade tempered glass panel
Function: touch, touch, remote control, cooperate with host mobile APP control
Luminous indicator: Yes
Voltage: AC 110-245V / 50Hz-60Hz
Current: 2.5A
Maximum load: 600W
Temperature environment: -20 ~ 65 degrees; less than 95% relative temperature
Service life: 100,000 operations

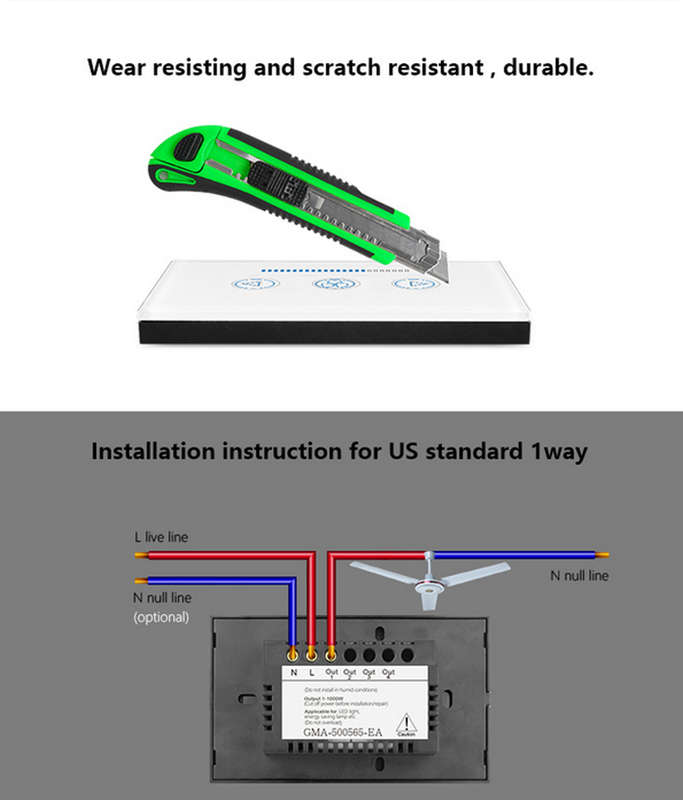

Single fire wire installation and zero fire wire installation can directly replace the original switch.
Can be applied to most ceiling fans on the market.
Switch speed regulation principle (change the fan speed by changing the output voltage. Switch-stepless speed change)

Parameter:

3-Mode speed: High-Middle-Low from left to right.
ON/OFF button, touch once to turn on the fan, touch the same button to turn off.

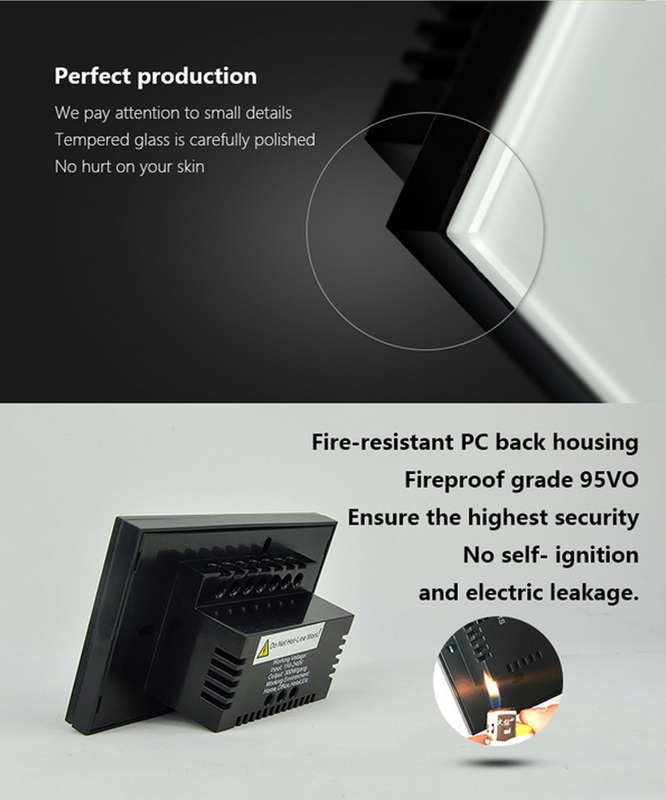

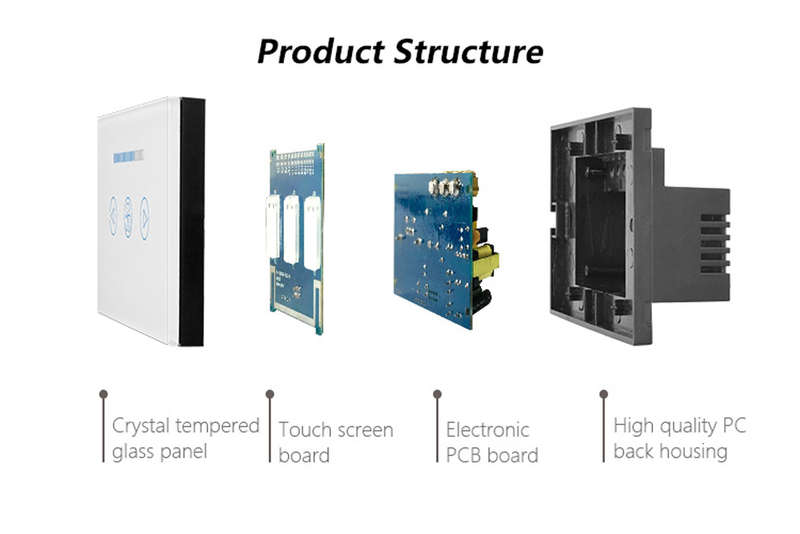

Crystal tempered glass panel and high quality PC back housing;
When off, a Blue LED location indicator is visible making it easy to see in the darkness.

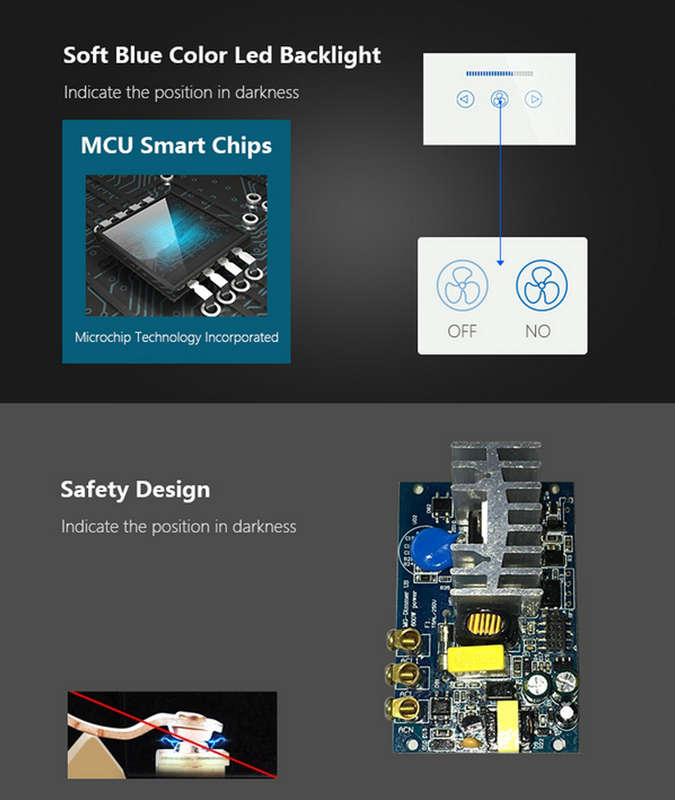

E-star, no sparking contacts.
With overload & overheat protection, make your home more safer.
Single Live wire control, very easy to install, direct replacement for existing switches.
Applicable to Ceiling Fans only.

Remote Specifications:

a Frequency: 433Mhz
a Control Distance: 15-20m
a Battery type: 12V, 23AE (Not Include)
How to operate the Remote controller
On the remote, button 1, button 2, button 3 are used for the remote switch 1 gang, 2 gang and 3 gang.
The ON/OFF button, left arrow button, right arrow button are used for the remote dimmer switch.

Package included:

1 x US Remote Control Ceiling Fan Switch
1 x Remote control
