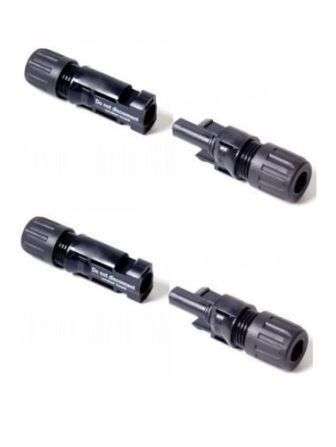

Male & Female Solar MC4 Connectors - Pack of 2

Male and  Female MC4 Solar connectors (PACK OF 2)

(including insulating part and ferrule).

Features:
- Snap-in lock - Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool
- Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector
- Tried and tested plug connectors, 14 years of experience in the field
- Suitable for assembly with cross-sections of 4 and 6 mm²
- Rated current: 39 A (for 4 and 6mm2 cable)
- Rated voltage: 1000 V
- IP Rating: IP65 / IP68 when mated (1h / 1min)
- Cross section: 4 - 6 mm²
- Outer diameter cable (dA): 5,5 - 9 mm
- Please use correct MC4 approved tools to crimp these connectors on to bare cables.

What's in the box
2 x male MC4, 2 x female MC4, Ferrules
