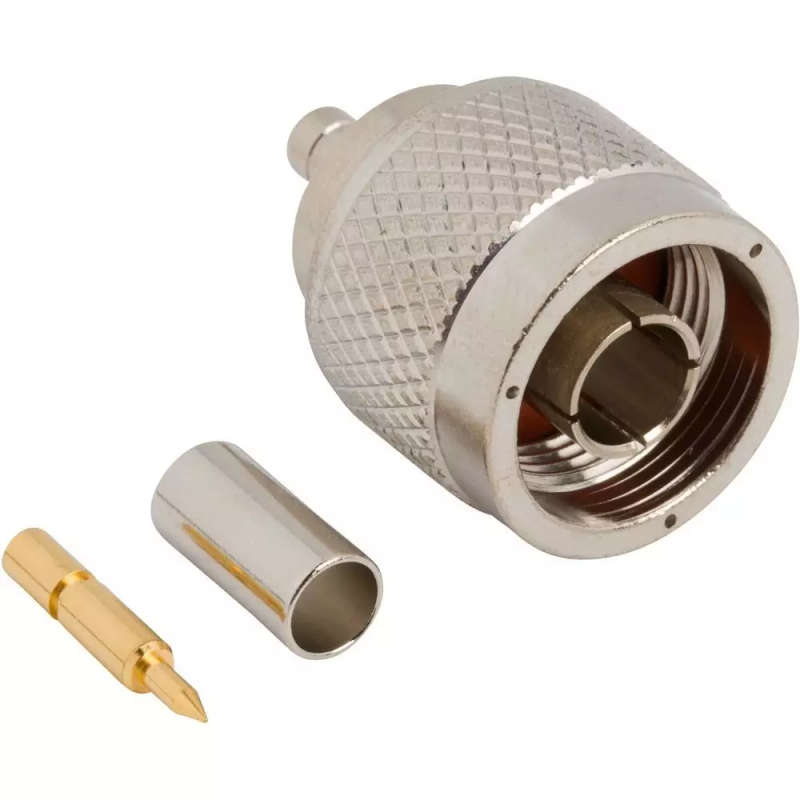

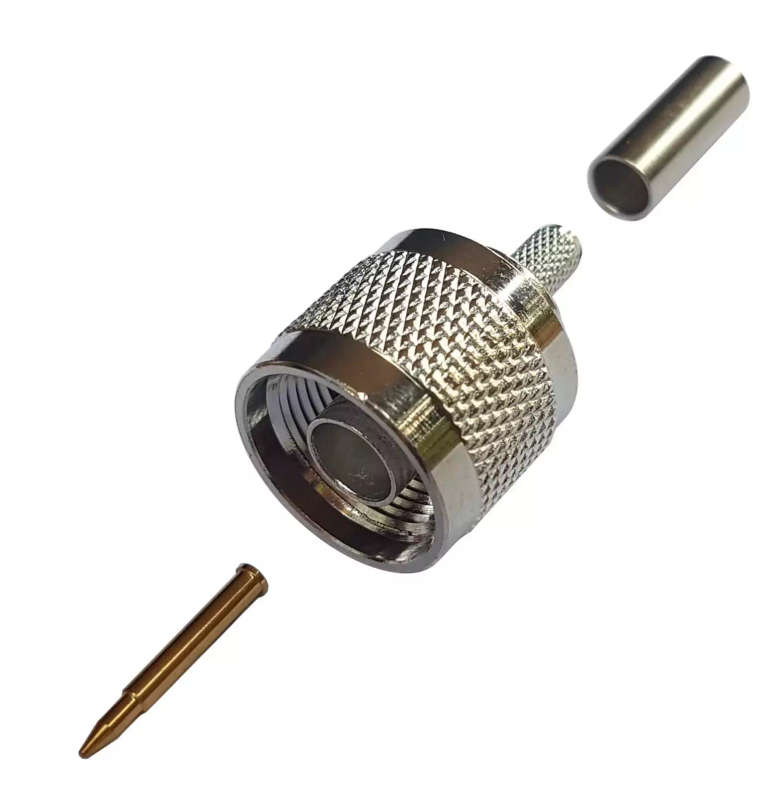

These Male N-Type Crimp-on Adapter are manufactured for LMR195, RG58 or RG142 Coaxial Cable, at 50 impedance. Suitable for use in many applications with good performance.
Product Specifications | |
Body Finish | Nickel |
Body Material | Brass |
Cable Type (Terminates to) | RG-58, RG-141, LMR-195 |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination | Crimp |
Coupling Mechanism | Threaded |
Crimp Tool | CTL-3 |
Export Control Classification Number | EAR99 |
Frequency (Max GHz) | 11 |
Gender | Plug |
IP Rating | Not Rated |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Isolated | No |
Low PIM | No |
Mil Qualified | Not Mil Qualified |
Non Magnetic | No |
Orientation | Straight |
Panel Mounting Feature | Not Applicable |
Ports | 1 (Single Port) |
Size Category | Standard |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | Cable - Crimp |
Thread Direction | Standard |
